Test Date: 2016-03-30 09:34
Analysis date: 2016-05-26 13:16
Analysis date: 2016-05-26 13:16
M2188 XRayHRQualification
Summary
| Module | Module | M2188 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 10/6/0 | |
| PixelDefects | Total Pixel Defects | 587 | |

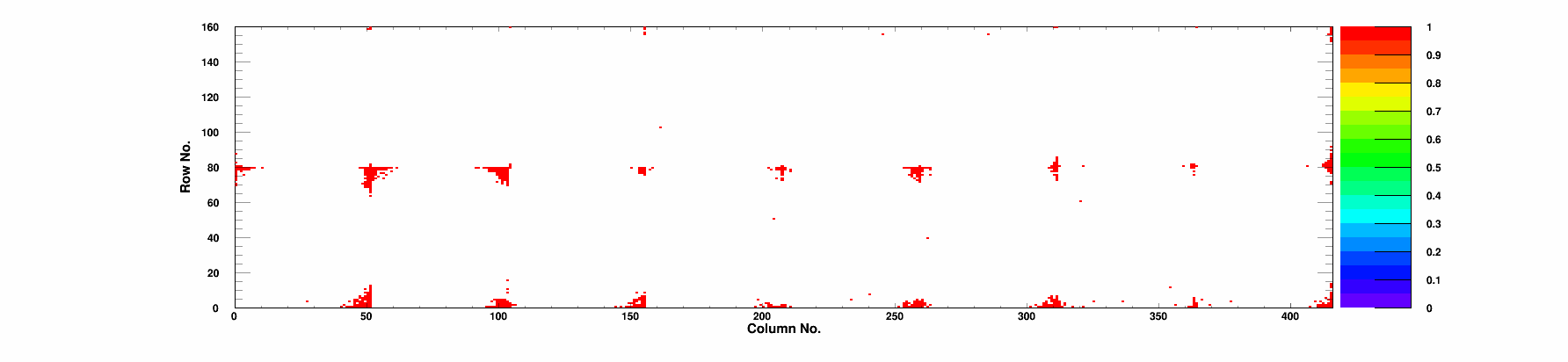

| BumpBondingDefects | Bump Bonding Defects | 587 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

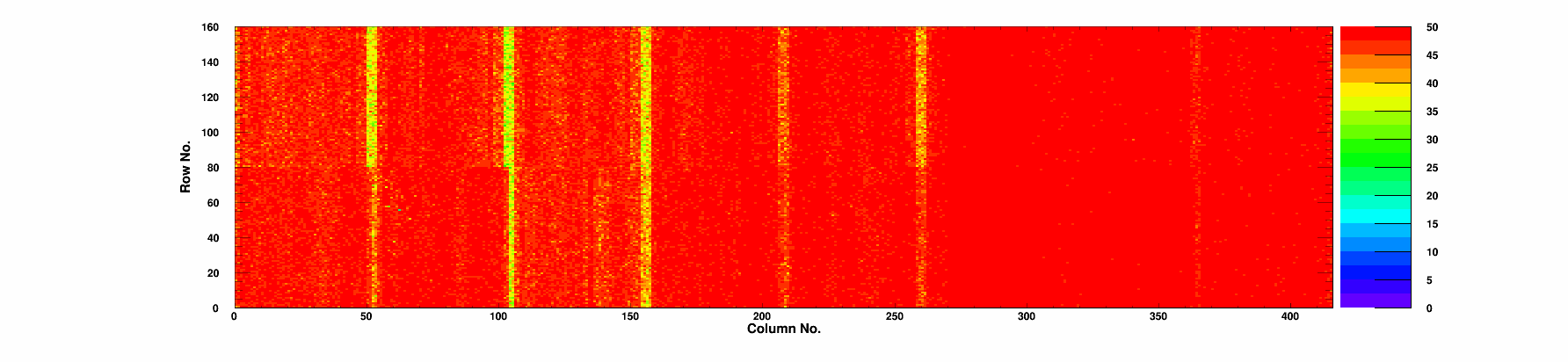

| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |

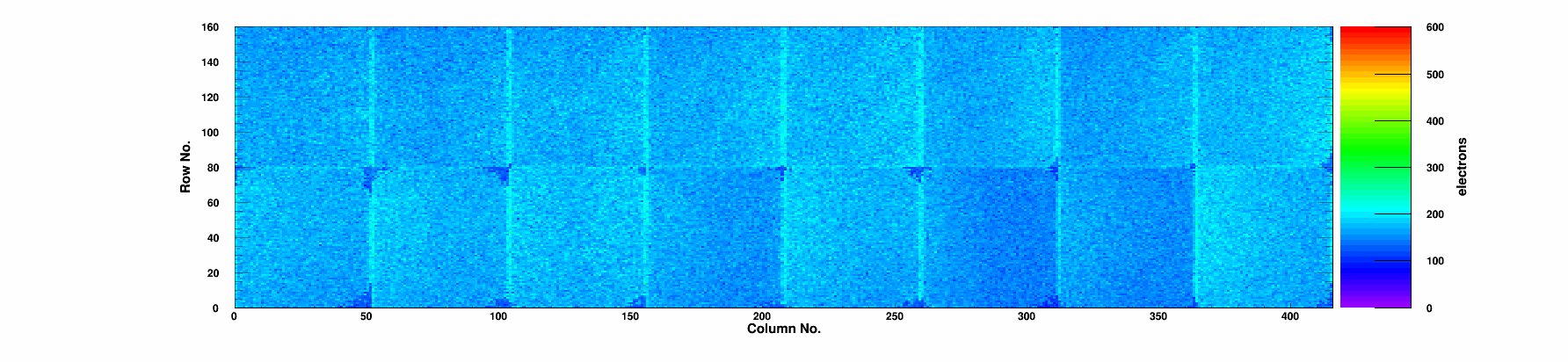

| Noise | Mean Noise | 167 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
28 | 0 | 99.84 | 99.04 | 0.54 | 25.1 | 75.6 | 28 | 0/0 | 0 | 1950 | 175 | 0 |
|
Chip 1
|
A
|
6 | 0 | 99.87 | 99.28 | 0.4 | 24.4 | 74.3 | 6 | 0/0 | 0 | 1951 | 164 | 0 |
|
Chip 2
|
A
|
12 | 0 | 99.84 | 99.03 | 0.49 | 19.7 | 61.3 | 12 | 0/0 | 0 | 1922 | 169 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.90 | 99.34 | 0.44 | 38.9 | 114.4 | 1 | 0/0 | 0 | 2079 | 175 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.89 | 99.31 | 0.55 | 40.8 | 120.0 | 1 | 0/0 | 0 | 2059 | 169 | 0 |
|
Chip 5
|
A
|
7 | 0 | 99.89 | 99.33 | 0.52 | 51.2 | 147.0 | 7 | 0/0 | 0 | 2123 | 170 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.34 | 0.58 | 48.7 | 140.9 | 0 | 0/0 | 0 | 2132 | 164 | 0 |
|
Chip 7
|
A
|
10 | 0 | 99.87 | 99.29 | 0.6 | 50.5 | 145.9 | 10 | 0/0 | 0 | 2098 | 165 | 0 |
|
Chip 8
|
B
|
123 | 0 | 99.87 | 99.33 | 0.65 | 43.3 | 126.3 | 123 | 0/0 | 0 | 2069 | 168 | 0 |
|
Chip 9
|
B
|
117 | 0 | 99.87 | 99.38 | 0.66 | 42.2 | 122.9 | 117 | 0/0 | 0 | 2059 | 170 | 0 |
|
Chip 10
|
B
|
56 | 0 | 99.86 | 99.30 | 0.54 | 50.7 | 147.5 | 56 | 0/0 | 0 | 2120 | 175 | 0 |
|
Chip 11
|
A
|
31 | 0 | 99.87 | 99.23 | 1.11 | 35.0 | 104.0 | 31 | 0/0 | 0 | 2029 | 160 | 0 |
|
Chip 12
|
B
|
62 | 0 | 99.88 | 99.33 | 0.41 | 35.5 | 105.4 | 62 | 0/0 | 0 | 2031 | 171 | 0 |
|
Chip 13
|
B
|
65 | 0 | 99.87 | 99.32 | 0.29 | 16.9 | 53.1 | 65 | 0/0 | 0 | 1882 | 151 | 0 |
|
Chip 14
|
A
|
24 | 0 | 99.88 | 99.32 | 0.34 | 20.4 | 62.9 | 24 | 0/0 | 0 | 1949 | 156 | 0 |
|
Chip 15
|
B
|
44 | 0 | 99.84 | 99.04 | 0.53 | 22.7 | 68.7 | 44 | 0/0 | 0 | 1938 | 175 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-03-30 | |
| TestTime | Test Time | 09:34 | |
| TestDuration | Duration | 1:8:26 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
