Test Date: 2016-04-11 17:49
Analysis date: 2016-05-26 13:42
Analysis date: 2016-05-26 13:42
M2192 XRayHRQualification
Summary
| Module | Module | M2192 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |

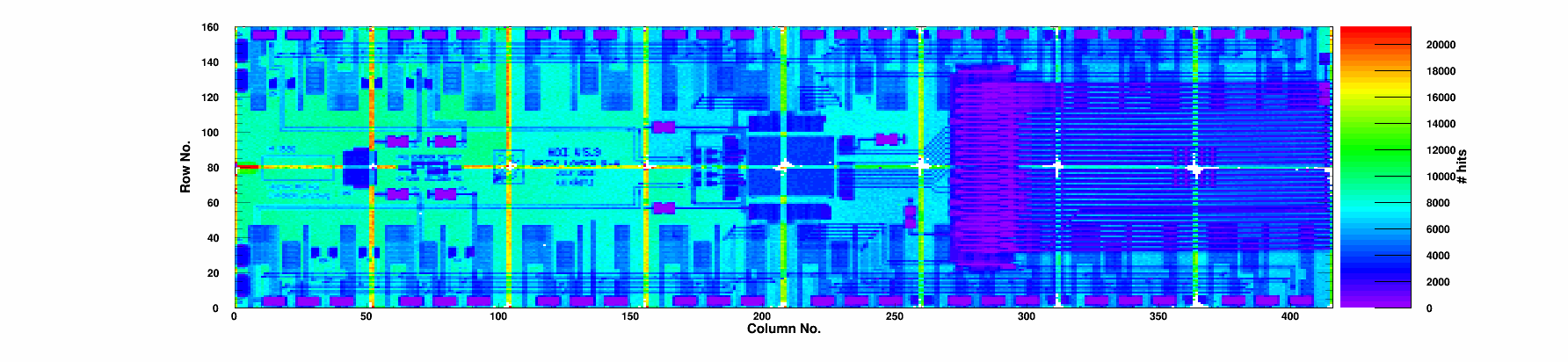

| PixelDefects | Total Pixel Defects | 282 | |
| BumpBondingDefects | Bump Bonding Defects | 281 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

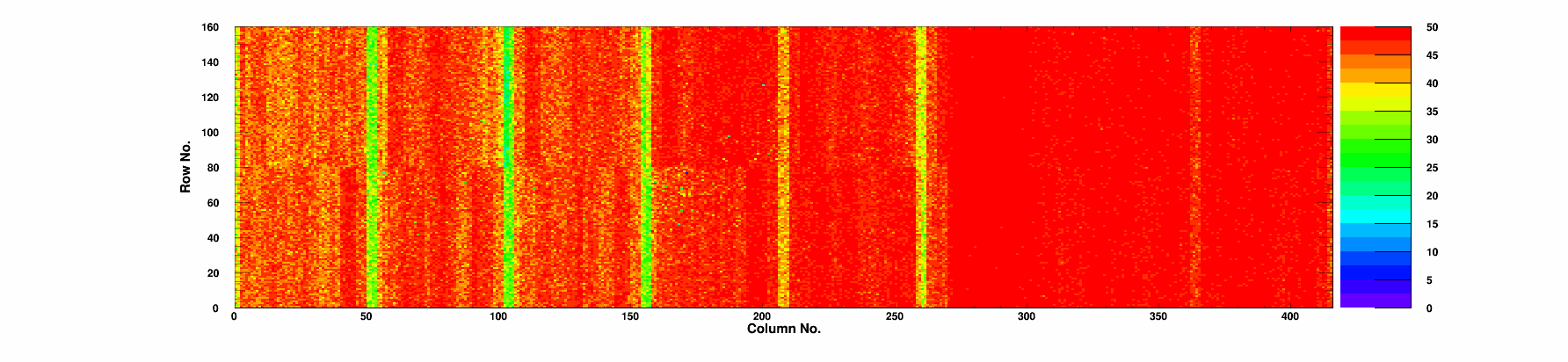

| Efficiency | Efficiency 50/120 | 99.88/99.32 | % |

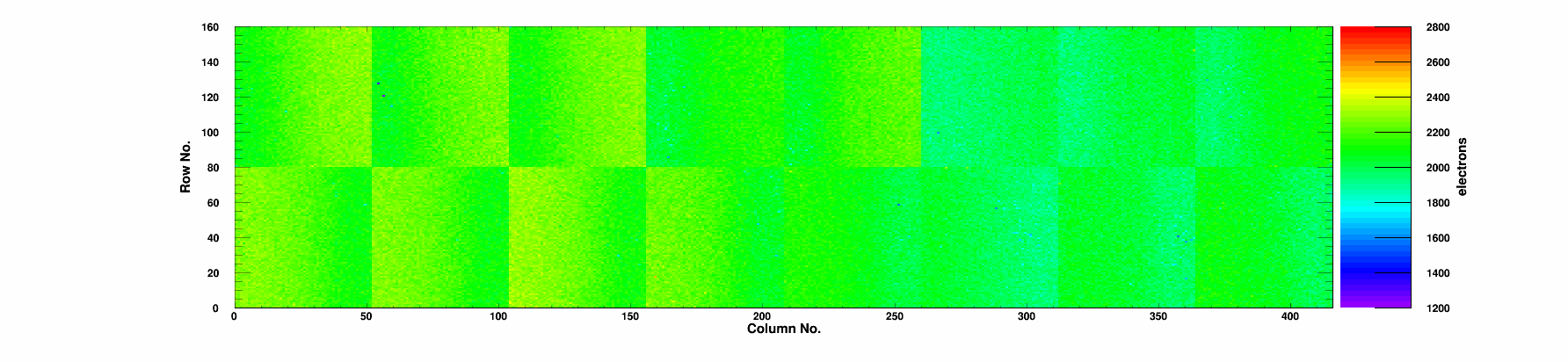

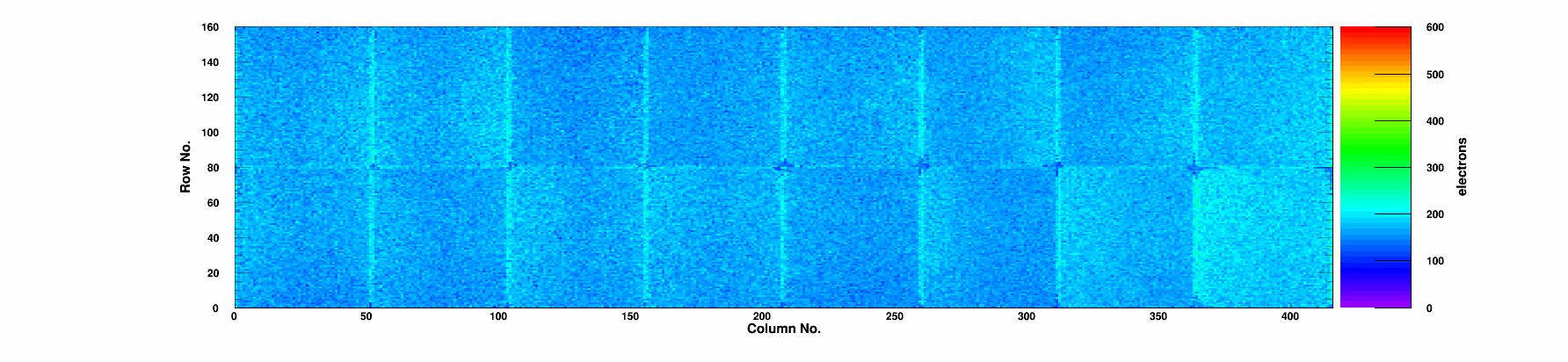

| Noise | Mean Noise | 167 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.88 | 99.35 | 0.51 | 34.0 | 98.9 | 7 | 0/0 | 0 | 2040 | 176 | 0 |
|
Chip 1
|
A
|
13 | 0 | 99.88 | 99.33 | 0.43 | 31.3 | 93.2 | 13 | 0/0 | 0 | 2002 | 165 | 0 |
|
Chip 2
|
A
|
36 | 0 | 99.87 | 99.20 | 0.54 | 27.3 | 82.8 | 36 | 0/0 | 0 | 1976 | 167 | 0 |
|
Chip 3
|
A
|
29 | 0 | 99.90 | 99.44 | 0.58 | 50.7 | 145.8 | 29 | 0/0 | 0 | 2149 | 166 | 0 |
|
Chip 4
|
A
|
17 | 0 | 99.88 | 99.36 | 0.9 | 46.3 | 136.6 | 17 | 0/0 | 0 | 2095 | 161 | 0 |
|
Chip 5
|
A
|
10 | 0 | 99.89 | 99.41 | 0.56 | 62.7 | 177.0 | 10 | 0/0 | 0 | 2197 | 159 | 0 |
|
Chip 6
|
A
|
4 | 0 | 99.88 | 99.40 | 0.41 | 64.1 | 185.0 | 4 | 0/0 | 0 | 2180 | 170 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.88 | 99.35 | 0.68 | 65.0 | 186.7 | 4 | 0/0 | 0 | 2200 | 167 | 0 |
|
Chip 8
|
A
|
10 | 0 | 99.89 | 99.38 | 0.46 | 62.3 | 179.4 | 10 | 0/0 | 0 | 2195 | 164 | 0 |
|
Chip 9
|
A
|
8 | 0 | 99.88 | 99.37 | 0.71 | 59.6 | 171.7 | 8 | 0/0 | 0 | 2186 | 163 | 0 |
|
Chip 10
|
A
|
11 | 0 | 99.88 | 99.40 | 0.64 | 61.6 | 175.9 | 11 | 0/0 | 0 | 2211 | 168 | 0 |
|
Chip 11
|
A
|
15 | 0 | 99.86 | 99.37 | 1.49 | 54.0 | 155.3 | 14 | 0/0 | 0 | 2157 | 168 | 0 |
|
Chip 12
|
A
|
13 | 0 | 99.89 | 99.36 | 0.51 | 45.3 | 131.8 | 13 | 0/0 | 0 | 2079 | 159 | 0 |
|
Chip 13
|
A
|
18 | 0 | 99.85 | 99.04 | 0.52 | 26.6 | 80.3 | 18 | 0/0 | 0 | 1990 | 162 | 0 |
|
Chip 14
|
A
|
23 | 0 | 99.85 | 99.18 | 0.93 | 32.2 | 95.6 | 23 | 0/0 | 0 | 2014 | 172 | 0 |
|
Chip 15
|
B
|
64 | 0 | 99.88 | 99.25 | 0.53 | 34.8 | 101.2 | 64 | 0/0 | 0 | 2041 | 186 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-11 | |
| TestTime | Test Time | 17:49 | |
| TestDuration | Duration | 1:27:5 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
