Test Date: 2016-04-11 17:49
Analysis date: 2016-05-26 13:55
Analysis date: 2016-05-26 13:55
M2195 XRayHRQualification
Summary
| Module | Module | M2195 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/0/2 | |
| PixelDefects | Total Pixel Defects | 382 | |
| BumpBondingDefects | Bump Bonding Defects | 64 | |
| NoisyPixels | Noisy Pixels | 23 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

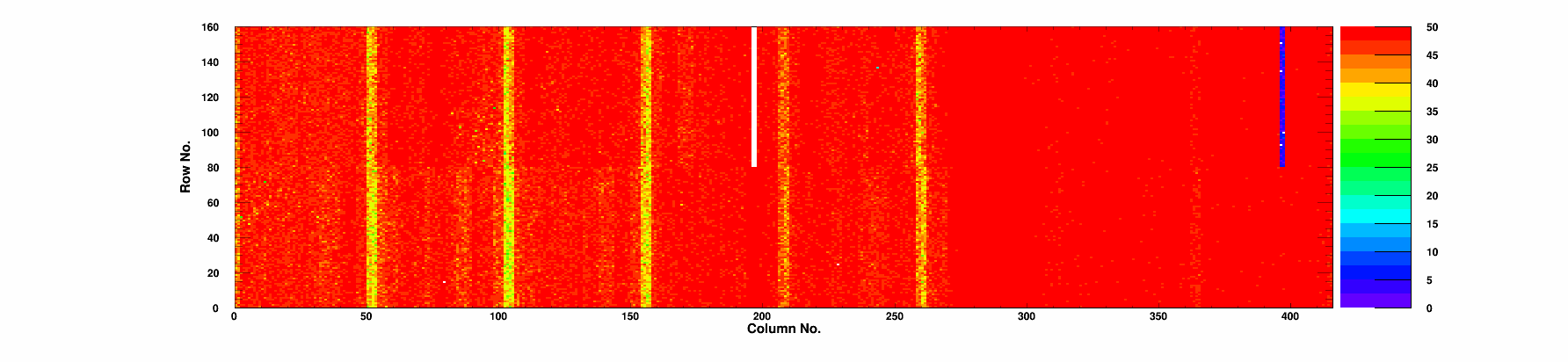

| Efficiency | Efficiency 50/120 | 99.87/99.20 | % |
| Noise | Mean Noise | 171 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
C
|
164 | 1 | 99.89 | 99.29 | 0.3 | 19.2 | 58.7 | 4 | 0/0 | 0 | 3211 | 166 | 7 |
|
Chip 1
|
A
|
1 | 0 | 99.86 | 98.99 | 0.48 | 20.3 | 62.5 | 1 | 0/0 | 0 | 1937 | 166 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.03 | 0.44 | 17.5 | 54.5 | 0 | 0/0 | 0 | 1895 | 168 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 99.07 | 1.15 | 35.5 | 104.9 | 0 | 0/0 | 0 | 2038 | 176 | 0 |
|
Chip 4
|
C
|
161 | 1 | 99.88 | 99.26 | 0.6 | 38.2 | 112.8 | 5 | 0/0 | 2 | 4430 | 176 | 14 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.52 | 41.3 | 120.4 | 0 | 0/0 | 0 | 2076 | 166 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.30 | 0.55 | 43.2 | 126.2 | 1 | 0/0 | 0 | 2104 | 177 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.06 | 0.62 | 41.9 | 122.5 | 0 | 0/0 | 0 | 2068 | 179 | 0 |
|
Chip 8
|
A
|
7 | 0 | 99.88 | 99.36 | 0.6 | 48.2 | 140.4 | 7 | 0/0 | 0 | 2108 | 178 | 0 |
|
Chip 9
|
A
|
4 | 0 | 99.88 | 99.39 | 0.46 | 50.8 | 147.4 | 3 | 0/0 | 0 | 2089 | 169 | 1 |
|
Chip 10
|
A
|
2 | 0 | 99.87 | 99.37 | 0.65 | 49.2 | 141.8 | 2 | 0/0 | 0 | 2113 | 169 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.89 | 99.33 | 0.39 | 38.7 | 114.2 | 4 | 0/0 | 0 | 2046 | 163 | 0 |
|
Chip 12
|
A
|
10 | 0 | 99.86 | 99.15 | 0.87 | 38.2 | 112.5 | 9 | 0/0 | 0 | 2004 | 173 | 1 |
|
Chip 13
|
A
|
10 | 0 | 99.85 | 99.10 | 0.49 | 22.0 | 67.0 | 10 | 0/0 | 0 | 1960 | 175 | 0 |
|
Chip 14
|
A
|
6 | 0 | 99.84 | 99.07 | 0.52 | 22.9 | 69.6 | 6 | 0/0 | 0 | 1948 | 173 | 0 |
|
Chip 15
|
A
|
12 | 0 | 99.85 | 99.03 | 0.5 | 22.2 | 67.0 | 12 | 0/0 | 0 | 1957 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-11 | |
| TestTime | Test Time | 17:49 | |
| TestDuration | Duration | 1:27:5 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
