Test Date: 2016-04-12 09:31
Analysis date: 2016-05-26 14:16
Analysis date: 2016-05-26 14:16
M2198 XRayHRQualification
Summary

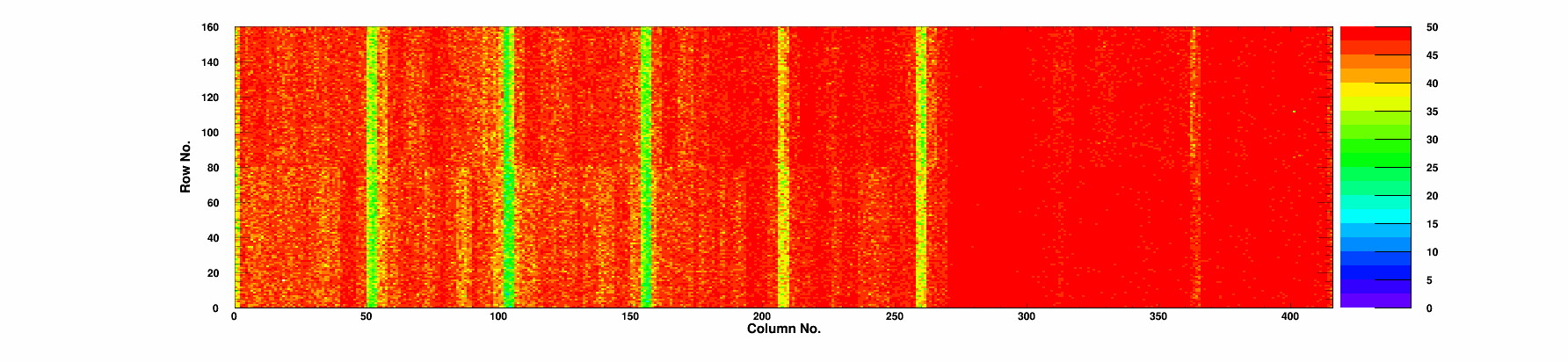

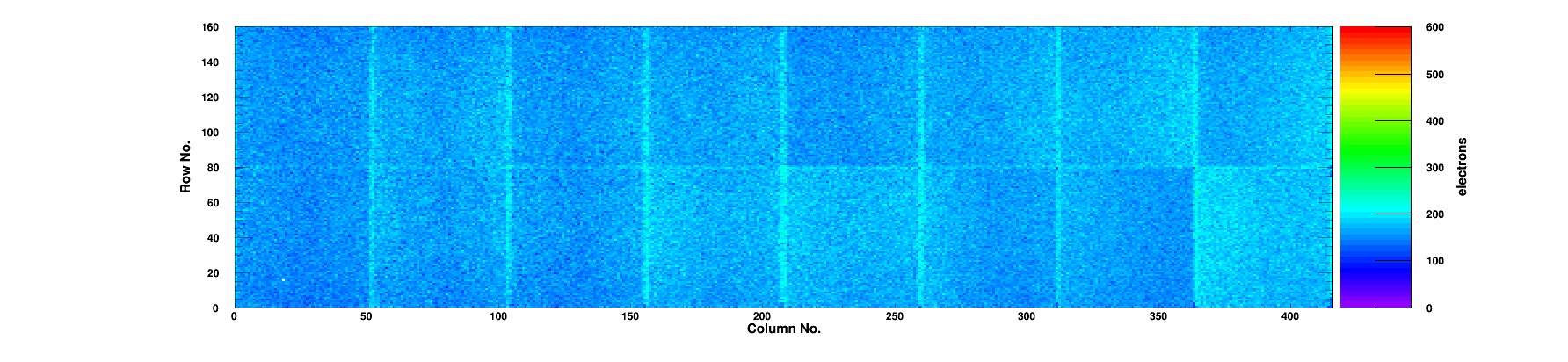

| Module | Module | M2198 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 37 | |
| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 165 | e- |

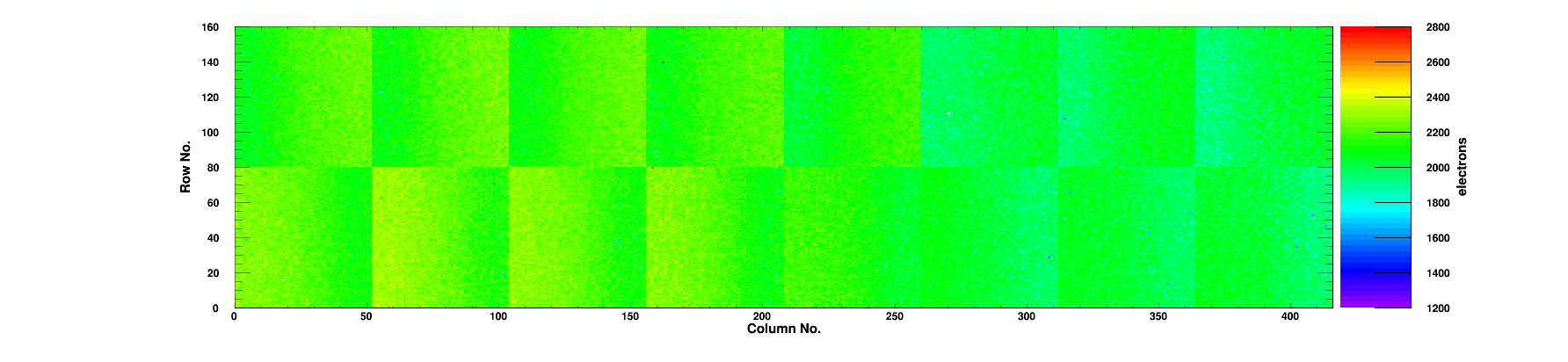

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.88 | 99.31 | 0.6 | 31.3 | 93.4 | 1 | 0/0 | 0 | 1997 | 171 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.00 | 0.55 | 30.9 | 93.6 | 0 | 0/0 | 0 | 2021 | 173 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.21 | 0.36 | 27.8 | 84.8 | 0 | 0/0 | 0 | 2002 | 167 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.37 | 0.45 | 44.2 | 129.6 | 0 | 0/0 | 0 | 2110 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.31 | 0.53 | 51.3 | 148.9 | 0 | 0/0 | 0 | 2160 | 165 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.36 | 0.67 | 55.6 | 160.3 | 0 | 0/0 | 0 | 2169 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.85 | 99.28 | 0.79 | 59.6 | 171.4 | 0 | 0/0 | 0 | 2176 | 165 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.33 | 0.66 | 55.5 | 160.0 | 0 | 0/0 | 0 | 2164 | 156 | 0 |
|
Chip 8
|
A
|
4 | 0 | 99.88 | 99.33 | 0.57 | 59.0 | 171.1 | 3 | 0/0 | 0 | 2162 | 153 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.37 | 0.56 | 62.6 | 181.0 | 0 | 0/0 | 0 | 2229 | 162 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.87 | 99.34 | 0.53 | 62.0 | 177.7 | 2 | 0/0 | 0 | 2208 | 159 | 0 |
|
Chip 11
|
A
|
4 | 0 | 99.89 | 99.37 | 0.59 | 56.2 | 163.5 | 4 | 0/0 | 0 | 2191 | 172 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.87 | 99.35 | 0.54 | 49.9 | 147.0 | 2 | 0/0 | 0 | 2120 | 174 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.87 | 99.35 | 0.57 | 27.4 | 84.4 | 5 | 0/0 | 0 | 2022 | 163 | 0 |
|
Chip 14
|
A
|
4 | 0 | 99.87 | 99.34 | 0.41 | 27.6 | 85.5 | 4 | 0/0 | 0 | 2016 | 161 | 0 |
|
Chip 15
|
A
|
15 | 0 | 99.88 | 99.34 | 0.4 | 31.1 | 93.3 | 15 | 0/0 | 0 | 2005 | 181 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-12 | |
| TestTime | Test Time | 09:31 | |
| TestDuration | Duration | 1:27:0 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
