Test Date: 2016-04-14 11:21
Analysis date: 2016-05-26 14:41
Analysis date: 2016-05-26 14:41
M2202 XRayHRQualification
Summary
| Module | Module | M2202 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 13/3/0 | |
| PixelDefects | Total Pixel Defects | 395 | |

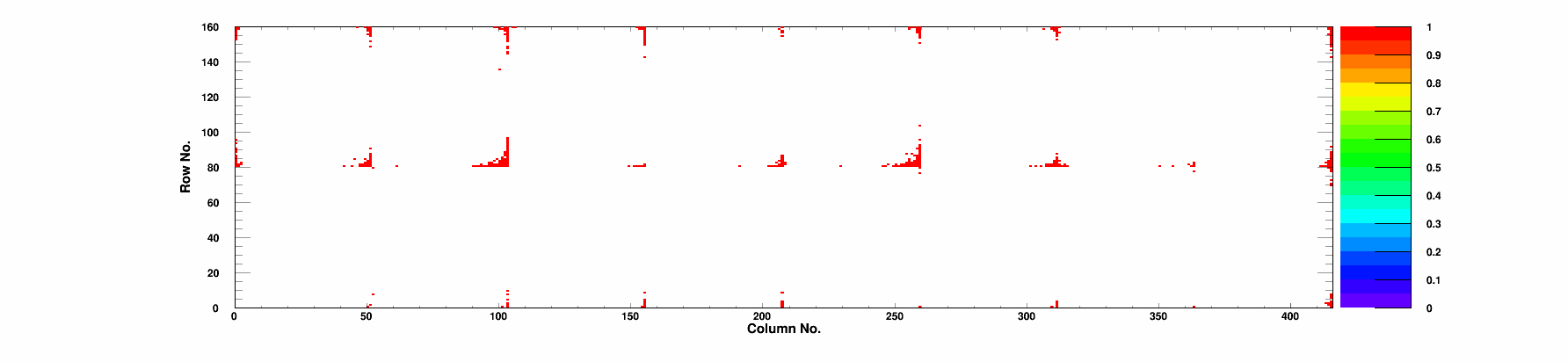

| BumpBondingDefects | Bump Bonding Defects | 394 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

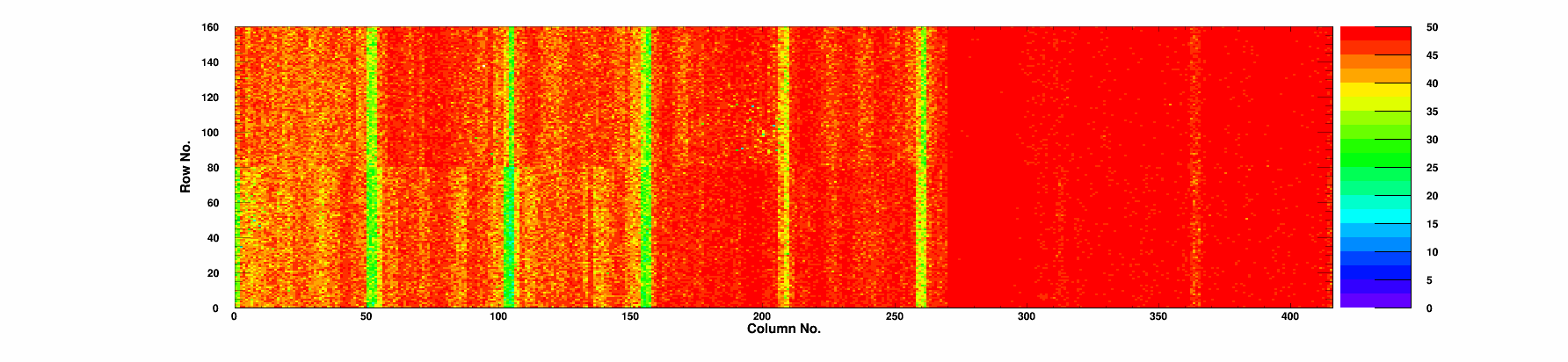

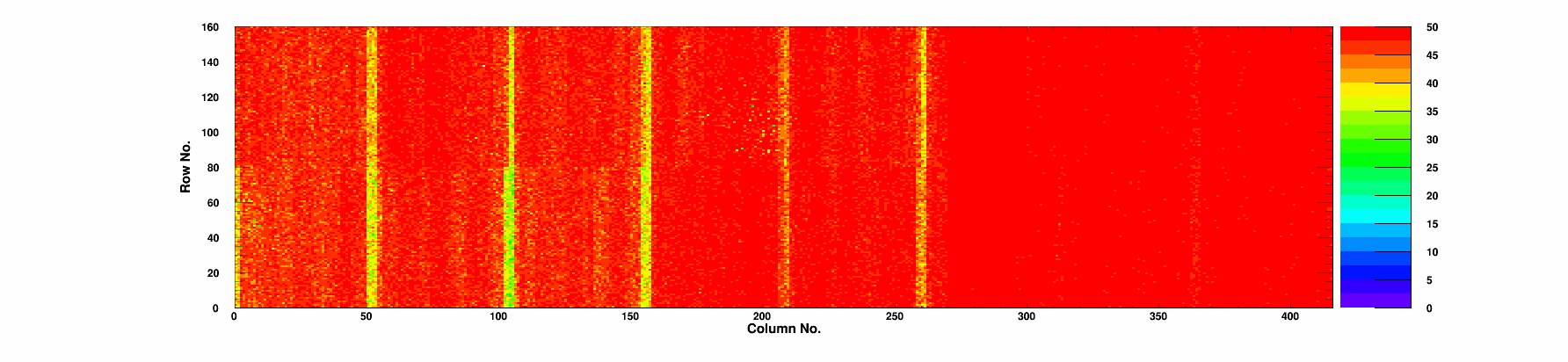

| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 164 | e- |
Summary ROCs

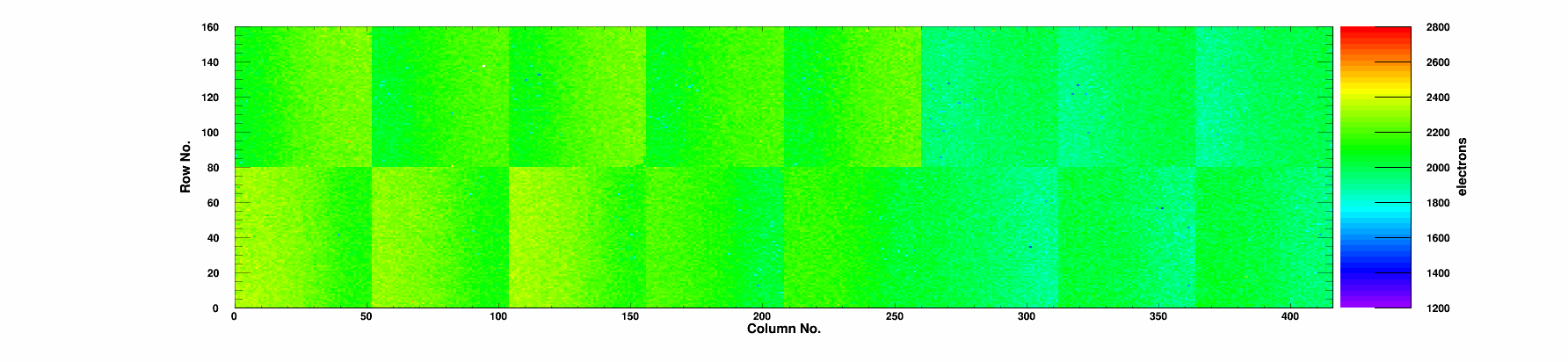

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
35 | 0 | 99.87 | 99.34 | 0.67 | 29.3 | 87.3 | 35 | 0/0 | 0 | 1965 | 169 | 0 |
|
Chip 1
|
A
|
16 | 0 | 99.88 | 99.32 | 0.61 | 29.4 | 88.5 | 16 | 0/0 | 0 | 1973 | 160 | 0 |
|
Chip 2
|
A
|
33 | 0 | 99.84 | 99.04 | 0.71 | 27.5 | 83.3 | 33 | 0/0 | 0 | 1967 | 170 | 0 |
|
Chip 3
|
B
|
71 | 0 | 99.87 | 99.36 | 0.68 | 55.1 | 158.1 | 71 | 0/0 | 0 | 2155 | 173 | 0 |
|
Chip 4
|
A
|
21 | 0 | 99.85 | 99.27 | 2.12 | 54.4 | 156.5 | 21 | 0/0 | 0 | 2139 | 168 | 0 |
|
Chip 5
|
A
|
26 | 0 | 99.90 | 99.37 | 0.53 | 65.8 | 184.4 | 26 | 0/0 | 0 | 2180 | 159 | 0 |
|
Chip 6
|
B
|
79 | 0 | 99.88 | 99.35 | 0.84 | 56.5 | 161.8 | 78 | 0/0 | 0 | 2097 | 153 | 1 |
|
Chip 7
|
B
|
64 | 0 | 99.89 | 99.38 | 0.38 | 66.1 | 187.7 | 64 | 0/0 | 0 | 2186 | 160 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.87 | 99.35 | 0.61 | 69.7 | 197.3 | 2 | 0/0 | 0 | 2235 | 158 | 0 |
|
Chip 9
|
A
|
9 | 0 | 99.88 | 99.35 | 0.78 | 65.6 | 185.8 | 9 | 0/0 | 0 | 2208 | 161 | 0 |
|
Chip 10
|
A
|
7 | 0 | 99.86 | 99.32 | 0.39 | 70.6 | 196.3 | 7 | 0/0 | 0 | 2236 | 154 | 0 |
|
Chip 11
|
A
|
5 | 0 | 99.88 | 99.37 | 0.52 | 49.4 | 143.5 | 5 | 0/0 | 0 | 2119 | 159 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.87 | 99.33 | 0.66 | 50.7 | 146.1 | 3 | 0/0 | 0 | 2108 | 166 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.87 | 99.31 | 0.52 | 28.8 | 86.6 | 5 | 0/0 | 0 | 1966 | 169 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.28 | 0.75 | 32.3 | 96.1 | 2 | 0/0 | 0 | 1984 | 170 | 0 |
|
Chip 15
|
A
|
17 | 0 | 99.89 | 99.24 | 0.88 | 31.0 | 91.2 | 17 | 0/0 | 0 | 1992 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-04-14 | |
| TestTime | Test Time | 11:21 | |
| TestDuration | Duration | 1:25:14 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 17 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
