Test Date: 2016-05-04 10:00
Analysis date: 2016-05-26 16:25
Analysis date: 2016-05-26 16:25
M2218 XRayHRQualification
Summary
| Module | Module | M2218 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 9 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.20 | % |

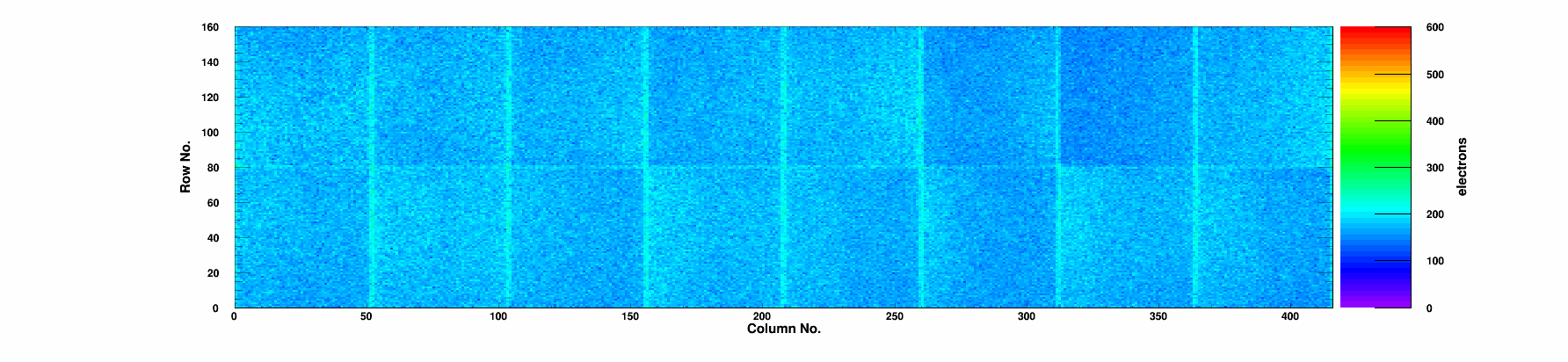

| Noise | Mean Noise | 172 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.29 | 0.43 | 24.5 | 72.9 | 0 | 0/0 | 0 | 1953 | 175 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.02 | 0.44 | 22.1 | 68.0 | 0 | 0/0 | 0 | 1950 | 157 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.32 | 0.32 | 20.2 | 62.3 | 0 | 0/0 | 0 | 1940 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.25 | 0.66 | 40.2 | 117.3 | 0 | 0/0 | 0 | 2071 | 178 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.89 | 99.35 | 0.51 | 37.6 | 111.6 | 0 | 0/0 | 0 | 2057 | 170 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.89 | 99.33 | 0.75 | 46.8 | 135.7 | 0 | 0/0 | 0 | 2103 | 173 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.33 | 0.53 | 48.4 | 141.4 | 0 | 0/0 | 0 | 2126 | 173 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.90 | 99.37 | 0.59 | 52.7 | 153.0 | 0 | 0/0 | 0 | 2146 | 175 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.32 | 0.65 | 42.8 | 126.6 | 0 | 0/0 | 0 | 2070 | 172 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.04 | 0.43 | 43.1 | 126.5 | 0 | 0/0 | 0 | 2093 | 180 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.86 | 99.08 | 0.59 | 41.8 | 122.3 | 1 | 0/0 | 0 | 2061 | 171 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.84 | 99.08 | 0.59 | 38.1 | 112.8 | 2 | 0/0 | 0 | 2075 | 177 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.86 | 99.08 | 0.44 | 32.4 | 96.6 | 1 | 0/0 | 0 | 2027 | 171 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.11 | 0.47 | 18.6 | 57.4 | 0 | 0/0 | 0 | 1918 | 167 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.84 | 99.02 | 0.61 | 22.4 | 67.8 | 2 | 0/0 | 0 | 1966 | 174 | 0 |
|
Chip 15
|
A
|
3 | 0 | 99.86 | 99.14 | 0.39 | 21.6 | 65.0 | 3 | 0/0 | 0 | 1952 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-04 | |
| TestTime | Test Time | 10:00 | |
| TestDuration | Duration | 1:26:36 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
