Test Date: 2016-05-12 13:37
Analysis date: 2016-05-26 17:27
Analysis date: 2016-05-26 17:27
M2228 XRayHRQualification
Summary
| Module | Module | M2228 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 79 | |
| BumpBondingDefects | Bump Bonding Defects | 73 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.31 | % |
| Noise | Mean Noise | 165 | e- |

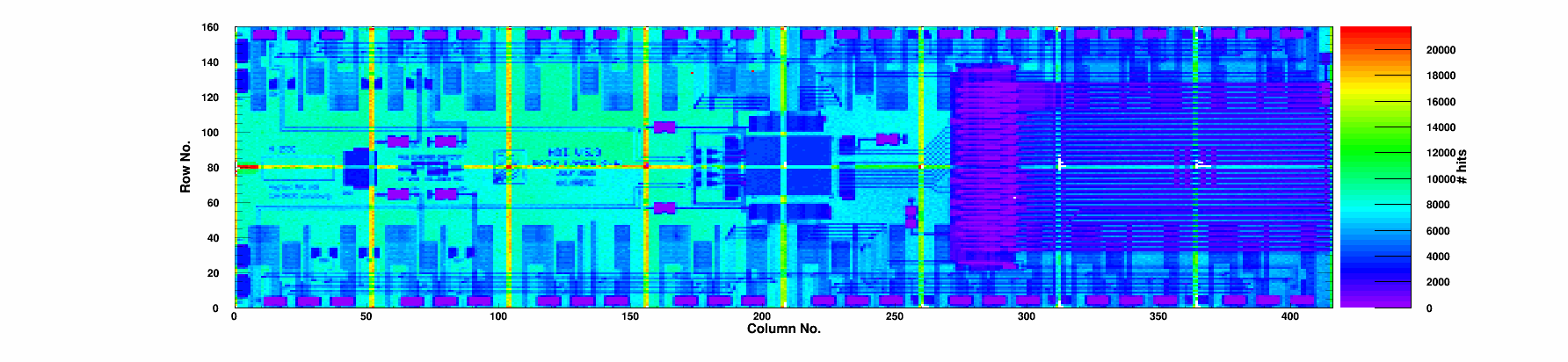

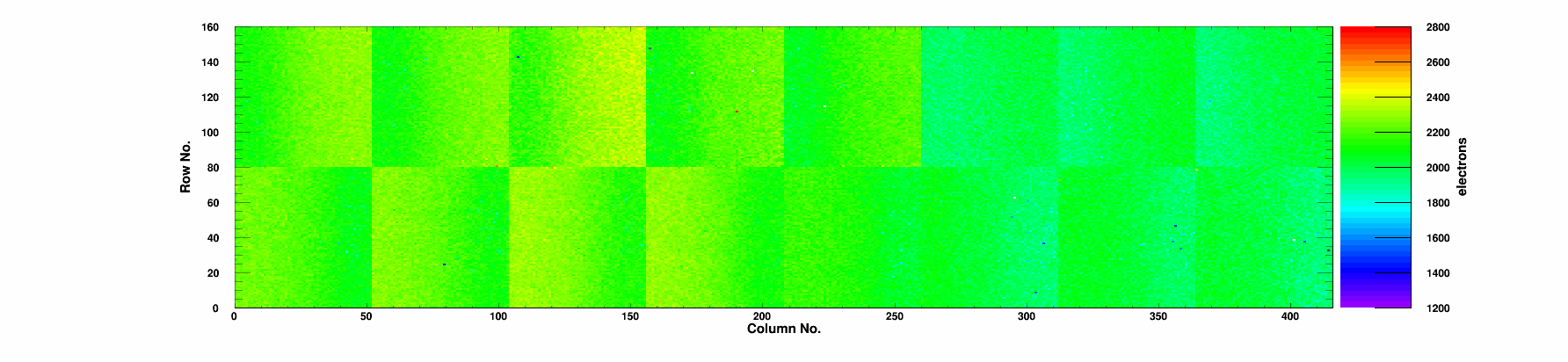

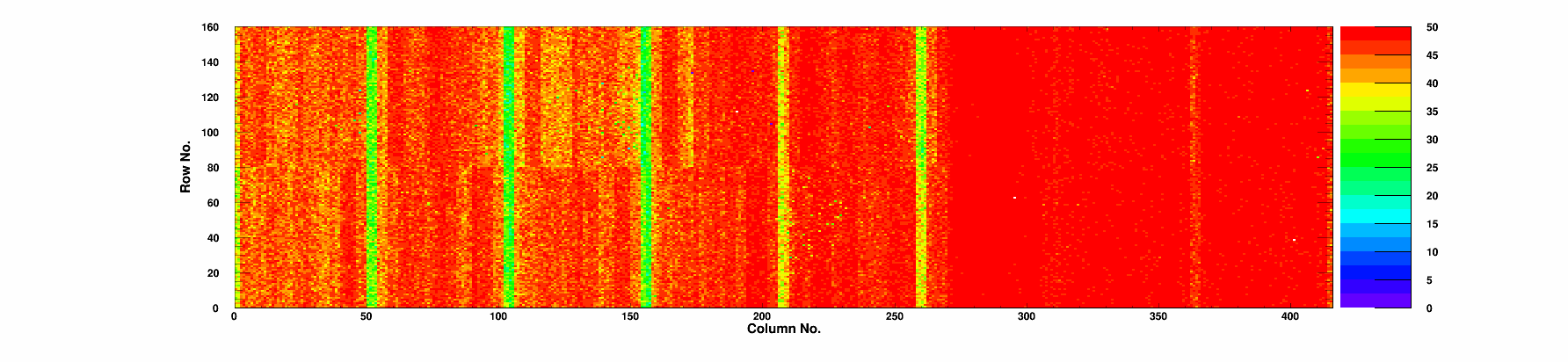

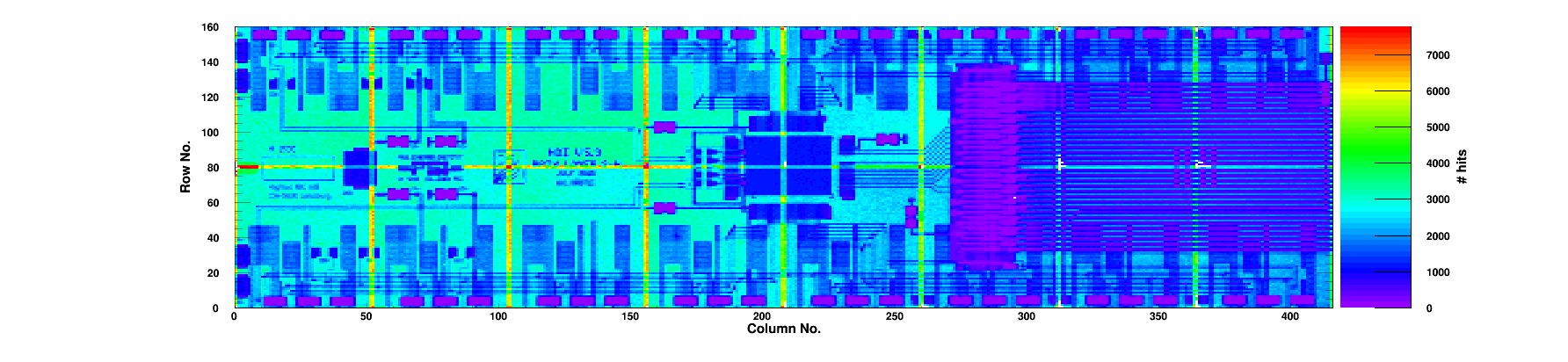

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
15 | 0 | 99.88 | 99.27 | 0.8 | 29.5 | 88.0 | 15 | 0/0 | 0 | 1995 | 170 | 0 |
|
Chip 1
|
A
|
12 | 0 | 99.86 | 99.08 | 0.58 | 28.8 | 87.3 | 12 | 0/0 | 0 | 2009 | 167 | 0 |
|
Chip 2
|
A
|
3 | 0 | 99.86 | 99.23 | 0.73 | 29.9 | 90.6 | 3 | 0/0 | 0 | 1990 | 177 | 0 |
|
Chip 3
|
A
|
5 | 0 | 99.88 | 99.38 | 0.71 | 49.7 | 144.3 | 5 | 0/0 | 0 | 2144 | 167 | 0 |
|
Chip 4
|
A
|
6 | 0 | 99.86 | 99.36 | 1.06 | 57.5 | 165.5 | 2 | 0/0 | 0 | 2160 | 176 | 1 |
|
Chip 5
|
A
|
1 | 0 | 99.83 | 99.36 | 0.87 | 70.9 | 201.8 | 1 | 0/0 | 0 | 2262 | 175 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.87 | 99.36 | 0.56 | 61.2 | 175.0 | 1 | 0/0 | 0 | 2192 | 161 | 0 |
|
Chip 7
|
A
|
6 | 0 | 99.88 | 99.35 | 0.76 | 65.1 | 184.2 | 6 | 0/0 | 0 | 2213 | 155 | 0 |
|
Chip 8
|
A
|
5 | 0 | 99.88 | 99.31 | 0.57 | 61.2 | 177.3 | 5 | 0/0 | 0 | 2174 | 157 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.37 | 0.65 | 60.2 | 172.6 | 0 | 0/0 | 0 | 2198 | 151 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.35 | 0.54 | 64.0 | 181.3 | 0 | 0/0 | 0 | 2228 | 155 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.35 | 0.56 | 57.5 | 165.3 | 1 | 0/0 | 0 | 2209 | 161 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.87 | 99.28 | 0.87 | 48.3 | 140.4 | 3 | 0/0 | 0 | 2112 | 161 | 0 |
|
Chip 13
|
A
|
6 | 0 | 99.86 | 99.24 | 0.49 | 27.7 | 84.6 | 5 | 0/0 | 0 | 1973 | 165 | 1 |
|
Chip 14
|
A
|
7 | 0 | 99.88 | 99.33 | 0.72 | 30.8 | 92.8 | 7 | 0/0 | 0 | 2017 | 168 | 0 |
|
Chip 15
|
A
|
8 | 0 | 99.87 | 99.27 | 0.87 | 31.3 | 93.3 | 7 | 0/0 | 0 | 1993 | 177 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-12 | |
| TestTime | Test Time | 13:37 | |
| TestDuration | Duration | 1:28:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
