Test Date: 2016-05-24 10:46
Analysis date: 2016-05-26 17:30
Analysis date: 2016-05-26 17:30
M2229 XRayHRQualification
Summary
| Module | Module | M2229 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 23 | |
| BumpBondingDefects | Bump Bonding Defects | 20 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

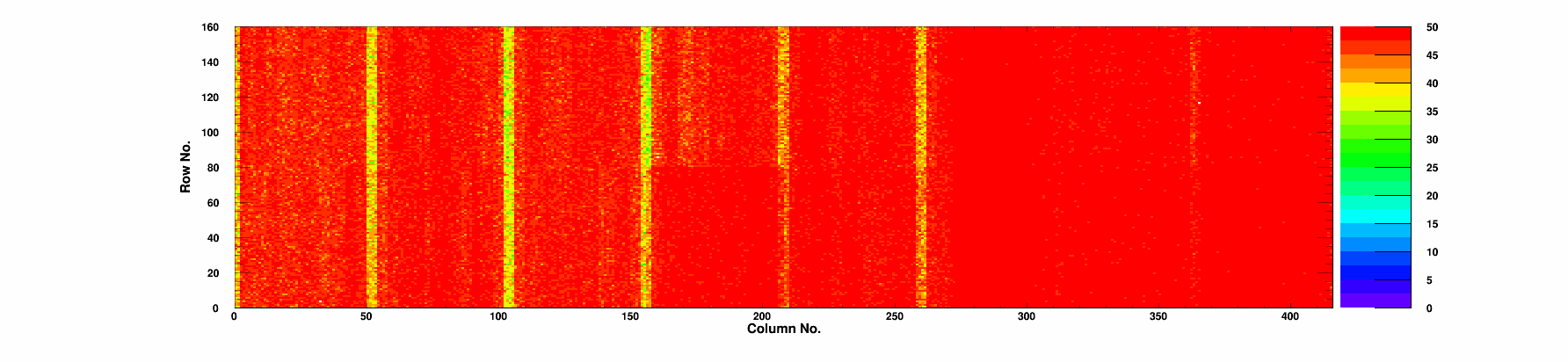

| Efficiency | Efficiency 50/120 | 99.75/99.08 | % |
| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
6 | 0 | 99.79 | 98.85 | 3.05 | 22.4 | 67.6 | 5 | 0/0 | 0 | 1910 | 166 | 1 |
|
Chip 1
|
A
|
1 | 0 | 99.77 | 98.85 | 3.2 | 26.0 | 78.1 | 1 | 0/0 | 0 | 1968 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.72 | 98.95 | 3.46 | 21.9 | 66.6 | 0 | 0/0 | 0 | 1932 | 167 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.75 | 99.15 | 3.74 | 38.1 | 111.7 | 1 | 0/0 | 0 | 2040 | 172 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.73 | 98.99 | 3.78 | 43.4 | 126.3 | 0 | 0/0 | 0 | 2057 | 177 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.73 | 99.31 | 2.68 | 49.5 | 142.0 | 0 | 0/0 | 0 | 2140 | 166 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.74 | 99.28 | 2.89 | 47.5 | 137.8 | 1 | 0/0 | 0 | 2115 | 169 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.72 | 99.29 | 2.81 | 50.6 | 146.3 | 2 | 0/0 | 0 | 2133 | 163 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.70 | 98.99 | 2.79 | 43.4 | 127.7 | 2 | 0/0 | 0 | 2056 | 168 | 1 |
|
Chip 9
|
A
|
2 | 0 | 99.72 | 99.30 | 2.6 | 45.7 | 132.7 | 2 | 0/0 | 0 | 2120 | 176 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.72 | 99.24 | 3.18 | 47.9 | 138.2 | 0 | 0/0 | 0 | 2117 | 169 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.78 | 99.26 | 3.19 | 35.4 | 105.3 | 1 | 0/0 | 0 | 2040 | 170 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.79 | 99.16 | 3.91 | 36.9 | 108.9 | 2 | 0/0 | 0 | 2064 | 180 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.72 | 98.99 | 3.66 | 19.4 | 59.7 | 1 | 0/0 | 0 | 1952 | 168 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.80 | 98.83 | 2.99 | 21.2 | 64.5 | 1 | 0/0 | 0 | 1939 | 168 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.78 | 98.80 | 3.51 | 18.4 | 56.7 | 1 | 0/0 | 0 | 1919 | 155 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-24 | |
| TestTime | Test Time | 10:46 | |
| TestDuration | Duration | 1:23:35 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 32408 | |
| nWarnings | # Warnings | 129936 | |
| channel_0_count | Channel 0 | 32484 | |
| channel_1_count | Channel 1 | 32484 | |
| channel_2_count | Channel 2 | 32484 | |
| channel_3_count | Channel 3 | 32484 | |
| message_eventid_count | Event ID mismatch | 26000 | |
| message_readback_count | Readback start marker | 103936 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
