Test Date: 2016-05-24 10:46
Analysis date: 2016-06-16 18:07
Analysis date: 2016-06-16 18:07
M2239 XRayHRQualification
| Comment | Comment | comment.txt~: Only works with 6 pixels on chip 9 masked. Otherwise RO errors comment.txt: Only works with 6 pixels on chip 9 masked. Otherwise RO errors. |
Summary
| Module | Module | M2239 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 49 | |
| BumpBondingDefects | Bump Bonding Defects | 40 | |
| NoisyPixels | Noisy Pixels | 7 | |
| HotPixelDefects | Hot Pixels | 6 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.29 | % |
| Noise | Mean Noise | 171 | e- |

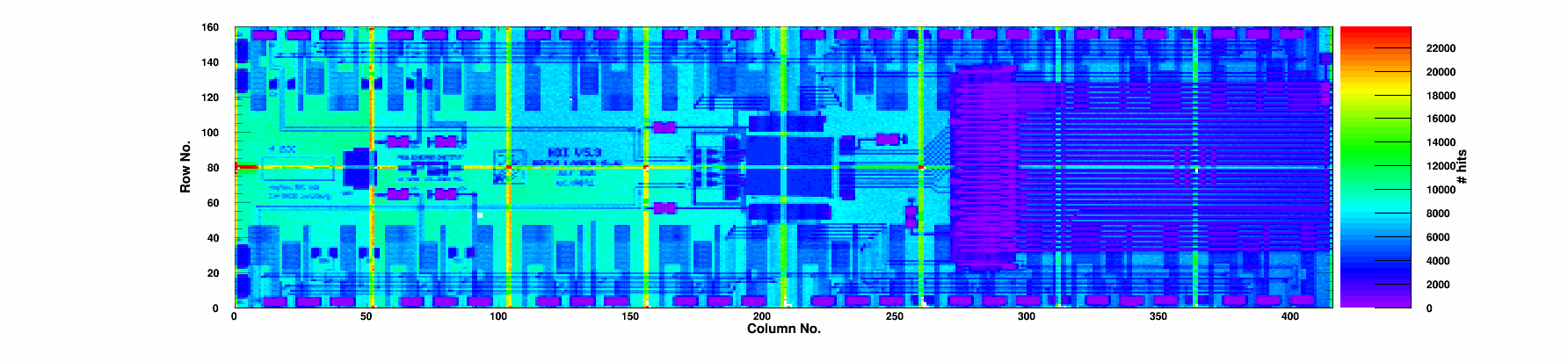

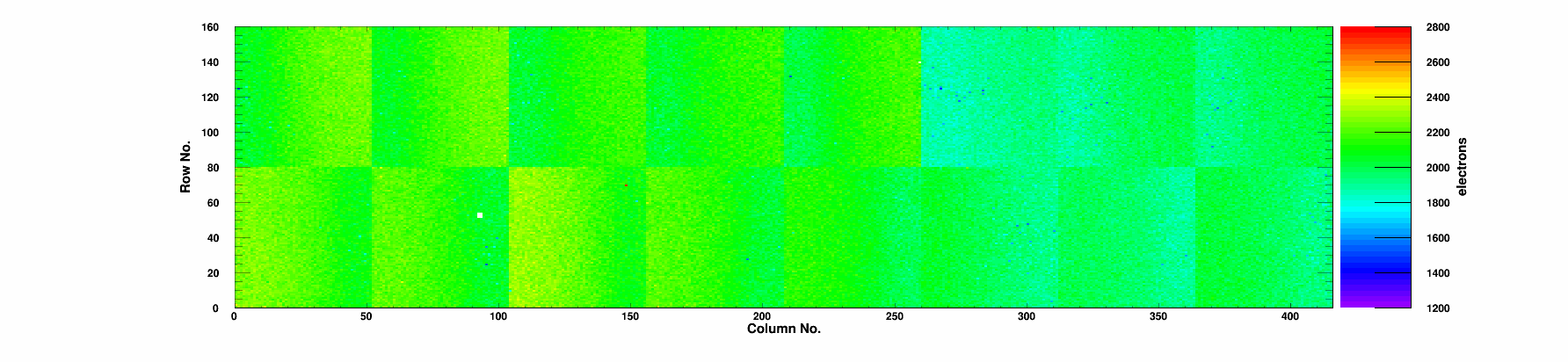

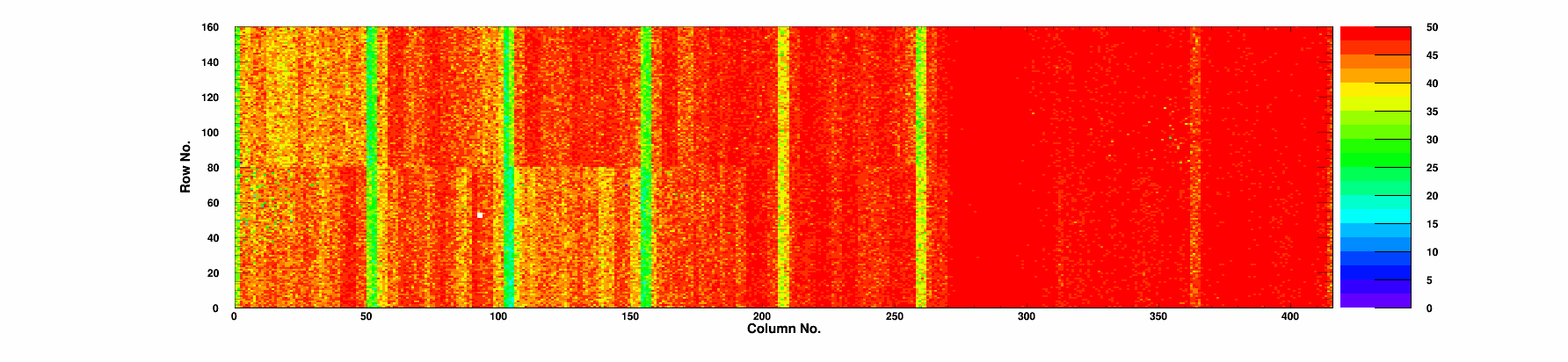

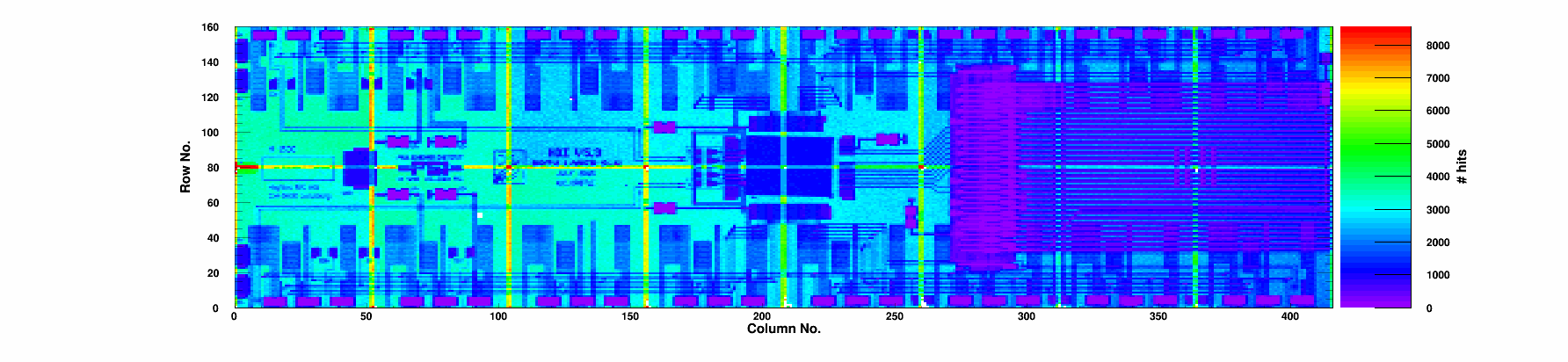

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.16 | 0.74 | 29.8 | 87.4 | 0 | 0/0 | 0 | 1971 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.21 | 1.16 | 32.4 | 96.7 | 0 | 0/0 | 0 | 1957 | 173 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.88 | 99.31 | 0.44 | 28.8 | 86.8 | 0 | 0/0 | 0 | 1898 | 169 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.88 | 99.37 | 0.48 | 53.4 | 153.2 | 0 | 0/0 | 0 | 2065 | 169 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.38 | 0.57 | 55.1 | 158.4 | 0 | 0/0 | 0 | 2105 | 171 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.38 | 0.68 | 59.0 | 167.6 | 1 | 0/0 | 0 | 2111 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.32 | 0.67 | 64.7 | 183.9 | 0 | 0/0 | 0 | 2161 | 168 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.87 | 99.27 | 0.82 | 73.1 | 208.6 | 0 | 0/0 | 0 | 2164 | 172 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.85 | 99.34 | 0.86 | 66.6 | 189.3 | 3 | 0/0 | 0 | 2186 | 164 | 0 |
|
Chip 9
|
A
|
8 | 0 | 99.88 | 99.36 | 0.47 | 66.9 | 192.7 | 2 | 0/0 | 0 | 1919 | 174 | 6 |
|
Chip 10
|
A
|
2 | 0 | 99.88 | 99.40 | 0.66 | 72.4 | 206.9 | 1 | 0/0 | 0 | 2206 | 175 | 0 |
|
Chip 11
|
A
|
6 | 0 | 99.88 | 99.30 | 0.43 | 57.4 | 166.4 | 6 | 0/0 | 0 | 2127 | 172 | 0 |
|
Chip 12
|
A
|
9 | 0 | 99.89 | 99.42 | 0.51 | 52.1 | 150.1 | 9 | 0/0 | 0 | 2076 | 179 | 0 |
|
Chip 13
|
A
|
11 | 0 | 99.87 | 99.36 | 0.44 | 29.6 | 88.2 | 11 | 0/0 | 0 | 1976 | 171 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.85 | 98.96 | 0.57 | 32.0 | 95.0 | 3 | 0/0 | 0 | 1949 | 172 | 0 |
|
Chip 15
|
A
|
4 | 0 | 99.86 | 99.14 | 0.68 | 31.6 | 92.6 | 4 | 0/0 | 0 | 1978 | 172 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-05-24 | |
| TestTime | Test Time | 10:46 | |
| TestDuration | Duration | 1:23:35 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 86 | |
| nWarnings | # Warnings | 30 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 30 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 6 | |
| message_readback_count | Readback start marker | 24 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
