Test Date: 2016-06-09 09:50
Analysis date: 2016-06-10 11:30
Analysis date: 2016-06-10 11:30

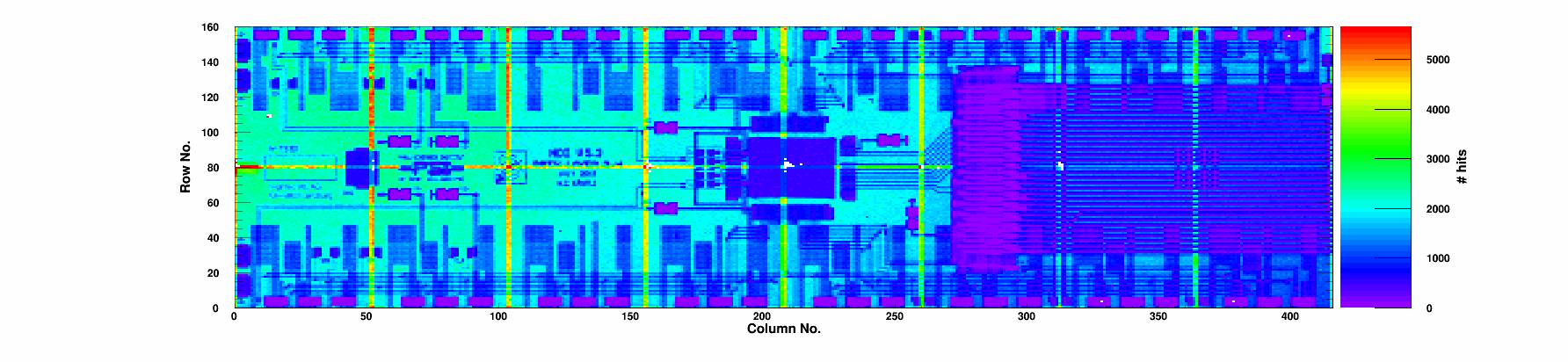

M2241 XRayHRQualification
Summary
| Module | Module | M2241 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 48 | |
| BumpBondingDefects | Bump Bonding Defects | 42 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 3 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.31 | % |

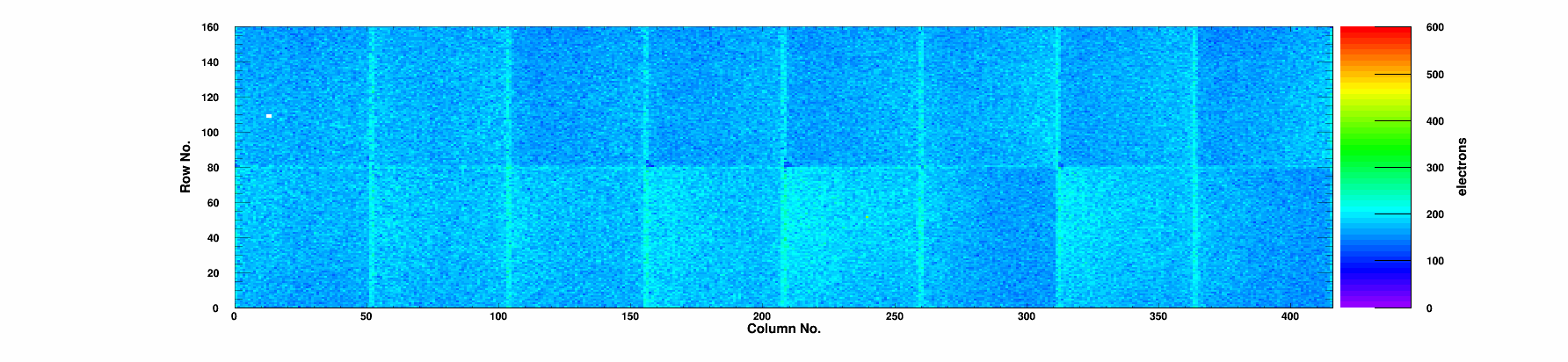

| Noise | Mean Noise | 172 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.87 | 99.30 | 0.47 | 21.7 | 66.5 | 1 | 0/0 | 0 | 1930 | 166 | 0 |
|
Chip 1
|
A
|
5 | 0 | 99.88 | 99.30 | 0.44 | 22.9 | 70.3 | 5 | 0/0 | 0 | 1940 | 169 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.88 | 99.32 | 0.27 | 21.3 | 65.8 | 1 | 0/0 | 0 | 1916 | 172 | 0 |
|
Chip 3
|
A
|
11 | 0 | 99.86 | 99.15 | 0.61 | 36.5 | 108.4 | 11 | 0/0 | 0 | 2073 | 167 | 0 |
|
Chip 4
|
A
|
6 | 0 | 99.87 | 99.35 | 0.54 | 38.3 | 113.9 | 6 | 0/0 | 0 | 2048 | 165 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.59 | 46.4 | 134.7 | 0 | 0/0 | 0 | 2106 | 164 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.89 | 99.39 | 0.43 | 48.0 | 139.9 | 2 | 0/0 | 0 | 2125 | 172 | 0 |
|
Chip 7
|
A
|
8 | 0 | 99.88 | 99.36 | 1.0 | 49.4 | 143.9 | 4 | 0/0 | 0 | 1998 | 168 | 3 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.43 | 0.62 | 45.2 | 132.4 | 0 | 0/0 | 0 | 2093 | 172 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.89 | 99.41 | 0.5 | 44.2 | 130.3 | 2 | 0/0 | 0 | 2104 | 178 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.90 | 99.44 | 0.43 | 44.9 | 131.5 | 1 | 0/0 | 0 | 2108 | 176 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.89 | 99.41 | 0.45 | 35.9 | 108.0 | 3 | 0/0 | 0 | 2052 | 183 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.85 | 99.18 | 0.69 | 34.3 | 103.8 | 2 | 0/0 | 0 | 2042 | 188 | 1 |
|
Chip 13
|
A
|
2 | 0 | 99.85 | 99.12 | 0.47 | 17.4 | 55.2 | 2 | 0/0 | 0 | 1901 | 166 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.85 | 99.07 | 0.44 | 20.9 | 65.1 | 2 | 0/0 | 0 | 1925 | 183 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.89 | 99.37 | 0.23 | 18.0 | 56.0 | 0 | 0/0 | 0 | 1902 | 164 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-09 | |
| TestTime | Test Time | 09:50 | |
| TestDuration | Duration | 1:27:24 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
