Test Date: 2016-06-09 09:50
Analysis date: 2016-06-09 12:14
Analysis date: 2016-06-09 12:14
M2243 XRayHRQualification
Summary
| Module | Module | M2243 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 33 | |
| BumpBondingDefects | Bump Bonding Defects | 28 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.30 | % |
| Noise | Mean Noise | 169 | e- |

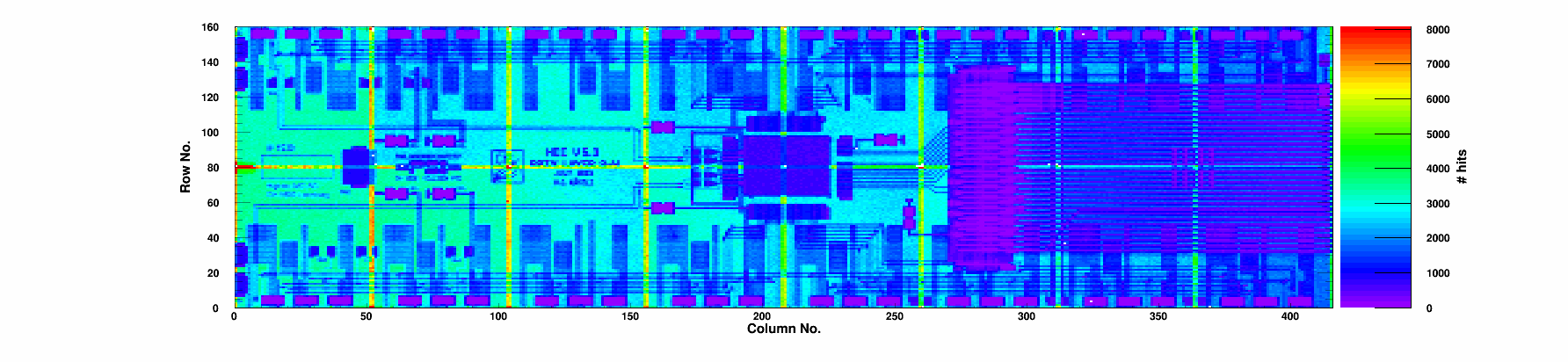

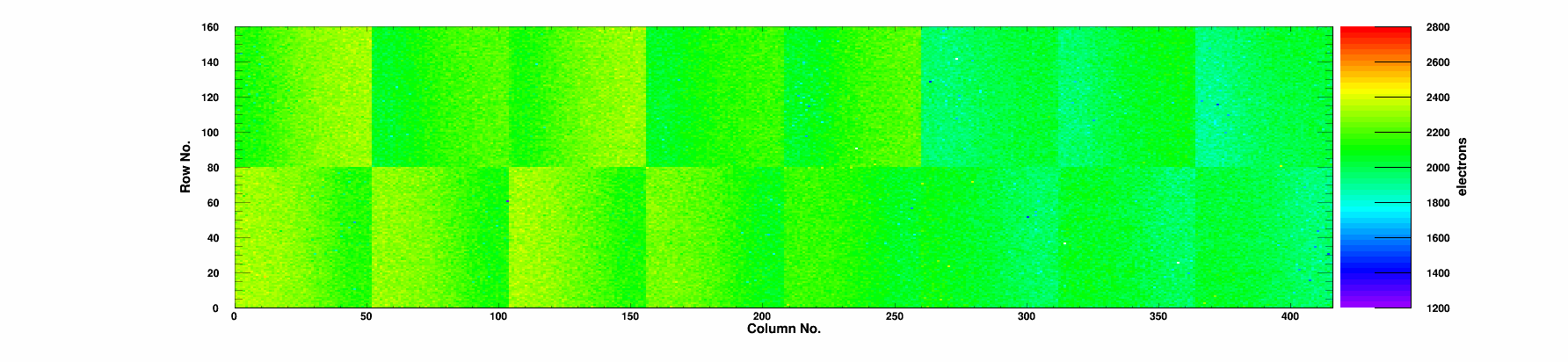

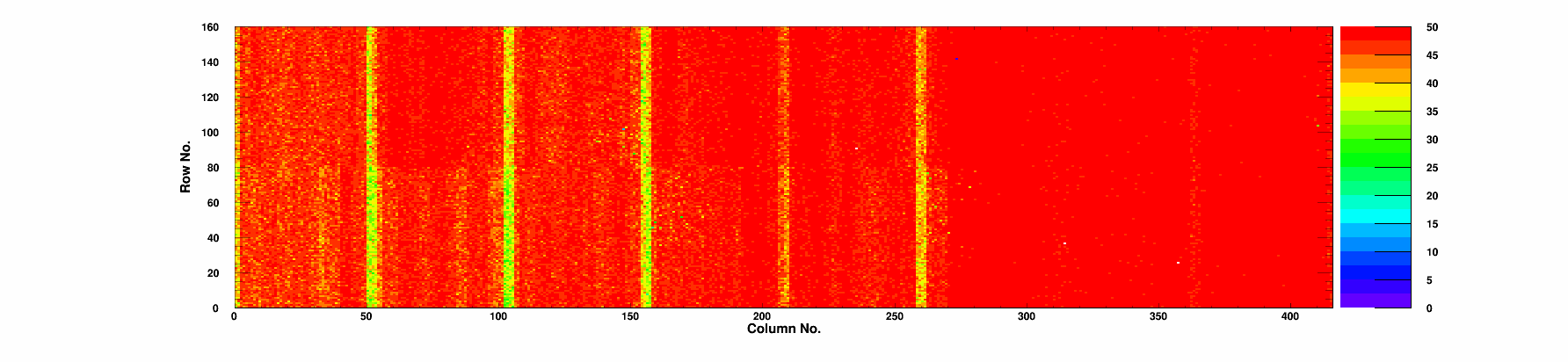

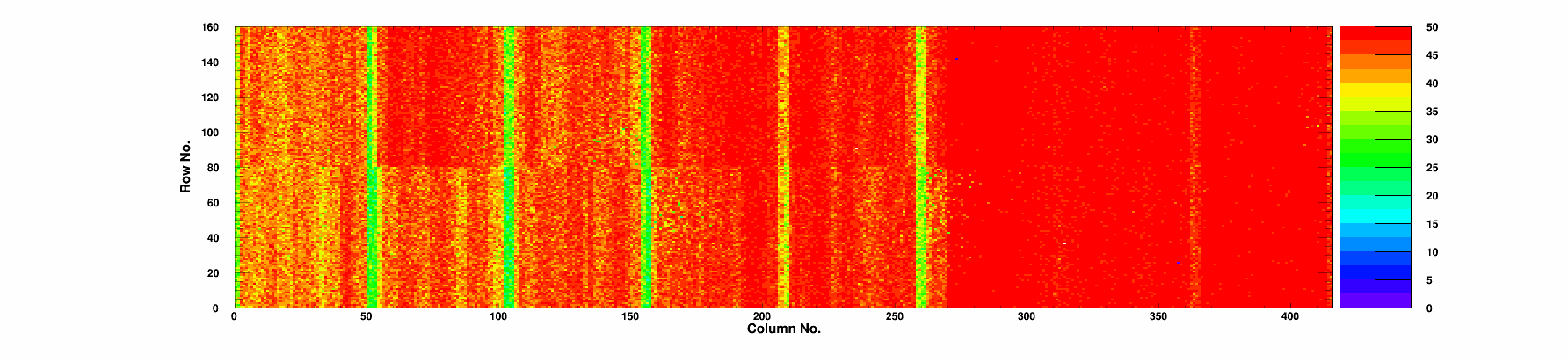

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.27 | 0.87 | 27.1 | 82.1 | 0 | 0/0 | 0 | 1977 | 164 | 0 |
|
Chip 1
|
A
|
2 | 0 | 99.88 | 99.34 | 0.52 | 31.0 | 93.3 | 2 | 0/0 | 0 | 2020 | 167 | 0 |
|
Chip 2
|
A
|
7 | 0 | 99.83 | 99.27 | 2.32 | 27.4 | 83.8 | 5 | 0/0 | 0 | 1990 | 172 | 1 |
|
Chip 3
|
A
|
5 | 0 | 99.88 | 99.38 | 0.46 | 48.9 | 142.1 | 4 | 0/0 | 0 | 2100 | 169 | 1 |
|
Chip 4
|
A
|
3 | 0 | 99.86 | 99.36 | 0.39 | 46.7 | 138.1 | 3 | 0/0 | 0 | 2118 | 170 | 0 |
|
Chip 5
|
A
|
4 | 0 | 99.88 | 99.31 | 0.89 | 64.3 | 184.0 | 4 | 0/0 | 0 | 2223 | 168 | 0 |
|
Chip 6
|
A
|
6 | 0 | 99.90 | 99.35 | 0.47 | 52.7 | 154.3 | 6 | 0/0 | 0 | 2139 | 163 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.87 | 99.36 | 0.7 | 67.5 | 194.2 | 2 | 0/0 | 0 | 2232 | 169 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.34 | 0.35 | 69.5 | 200.3 | 0 | 0/0 | 0 | 2242 | 163 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.89 | 99.33 | 0.62 | 66.3 | 191.9 | 0 | 0/0 | 0 | 2215 | 174 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.36 | 0.6 | 63.5 | 181.3 | 0 | 0/0 | 0 | 2231 | 168 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.26 | 0.9 | 54.6 | 159.5 | 0 | 0/0 | 0 | 2176 | 173 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.20 | 0.63 | 49.3 | 144.9 | 0 | 0/0 | 0 | 2118 | 168 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.77 | 99.03 | 6.16 | 30.3 | 92.4 | 1 | 0/0 | 0 | 2023 | 180 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.86 | 99.29 | 0.77 | 31.8 | 96.0 | 0 | 0/0 | 0 | 1983 | 176 | 1 |
|
Chip 15
|
A
|
1 | 0 | 99.89 | 99.34 | 0.45 | 27.7 | 83.6 | 1 | 0/0 | 0 | 1995 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-09 | |
| TestTime | Test Time | 09:50 | |
| TestDuration | Duration | 1:27:24 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
