Test Date: 2016-06-09 09:50
Analysis date: 2016-06-09 12:17
Analysis date: 2016-06-09 12:17
M2246 XRayHRQualification
Summary
| Module | Module | M2246 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 62 | |
| BumpBondingDefects | Bump Bonding Defects | 58 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

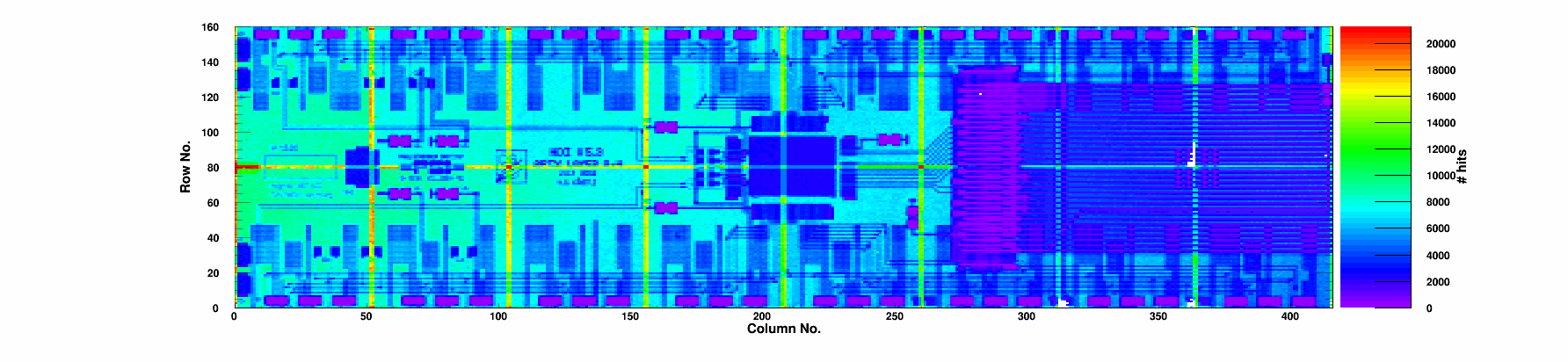

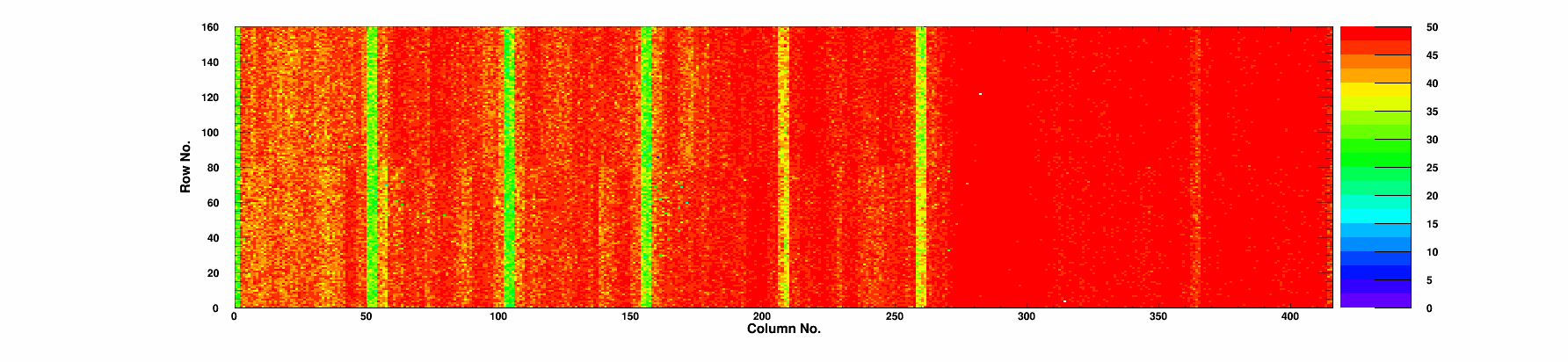

| Efficiency | Efficiency 50/120 | 99.87/99.25 | % |
| Noise | Mean Noise | 163 | e- |
Summary ROCs

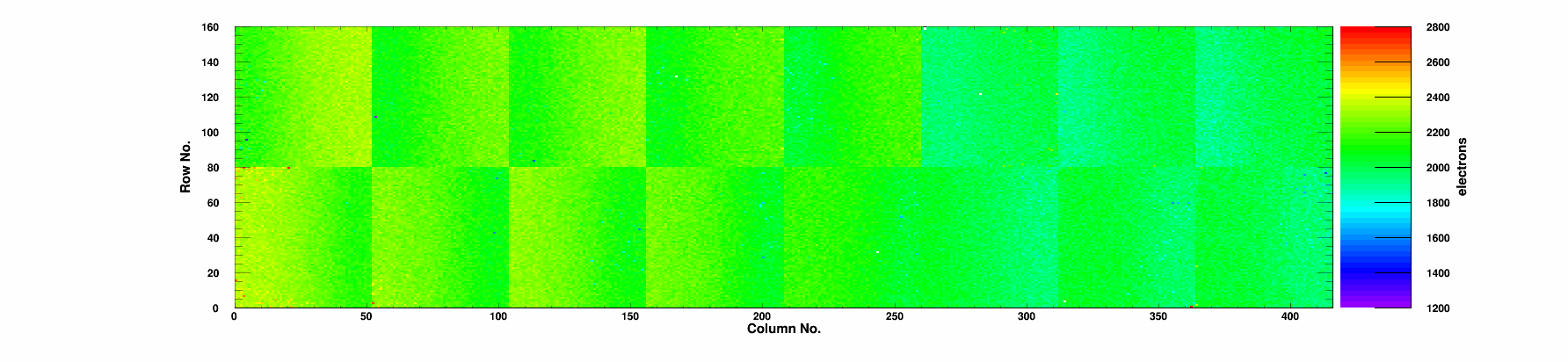

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.87 | 99.30 | 0.41 | 28.5 | 86.2 | 1 | 0/0 | 0 | 1983 | 173 | 0 |
|
Chip 1
|
A
|
28 | 0 | 99.89 | 99.27 | 0.64 | 28.7 | 87.3 | 28 | 0/0 | 0 | 1983 | 162 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.87 | 99.28 | 0.49 | 28.2 | 86.3 | 0 | 0/0 | 0 | 1906 | 170 | 2 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.23 | 0.72 | 45.3 | 133.0 | 0 | 0/0 | 0 | 2117 | 165 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.87 | 99.29 | 1.28 | 52.3 | 153.5 | 0 | 0/0 | 0 | 2156 | 169 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.37 | 0.64 | 57.4 | 166.3 | 0 | 0/0 | 0 | 2203 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.33 | 0.55 | 55.7 | 161.3 | 0 | 0/0 | 0 | 2177 | 161 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.35 | 0.72 | 64.0 | 184.7 | 0 | 0/0 | 0 | 2249 | 154 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.88 | 99.35 | 0.65 | 65.9 | 187.6 | 2 | 0/0 | 0 | 2250 | 162 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.30 | 0.62 | 59.8 | 172.6 | 0 | 0/0 | 0 | 2192 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.39 | 0.74 | 59.5 | 170.8 | 0 | 0/0 | 0 | 2201 | 152 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.28 | 1.66 | 49.9 | 145.3 | 0 | 0/0 | 0 | 2161 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.07 | 0.68 | 45.0 | 132.7 | 0 | 0/0 | 0 | 2111 | 167 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.27 | 0.48 | 25.6 | 78.8 | 0 | 0/0 | 0 | 1997 | 155 | 0 |
|
Chip 14
|
A
|
25 | 0 | 99.86 | 99.00 | 0.78 | 28.4 | 86.9 | 24 | 0/0 | 0 | 1971 | 171 | 1 |
|
Chip 15
|
A
|
3 | 0 | 99.84 | 99.00 | 0.71 | 27.0 | 82.2 | 3 | 0/0 | 0 | 1991 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-09 | |
| TestTime | Test Time | 09:50 | |
| TestDuration | Duration | 1:27:24 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
