Test Date: 2016-06-10 10:53
Analysis date: 2016-06-10 14:01
Analysis date: 2016-06-10 14:01
M2248 XRayHRQualification
Summary
| Module | Module | M2248 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 75 | |
| BumpBondingDefects | Bump Bonding Defects | 72 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.88/99.27 | % |

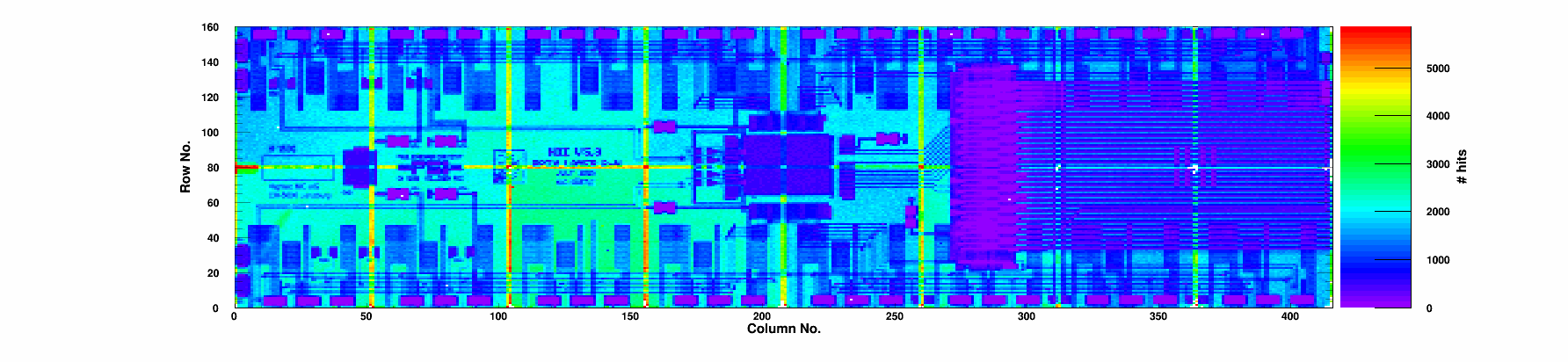

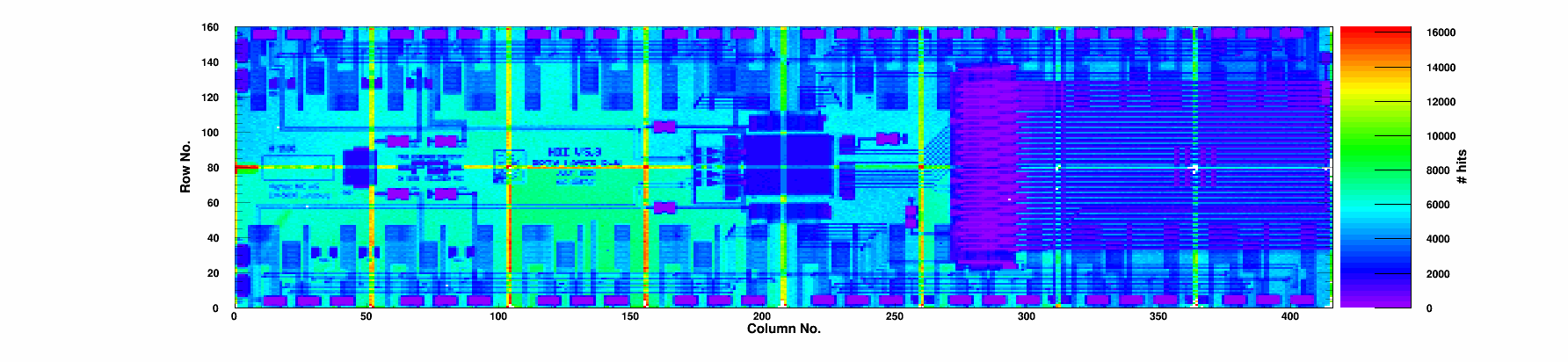

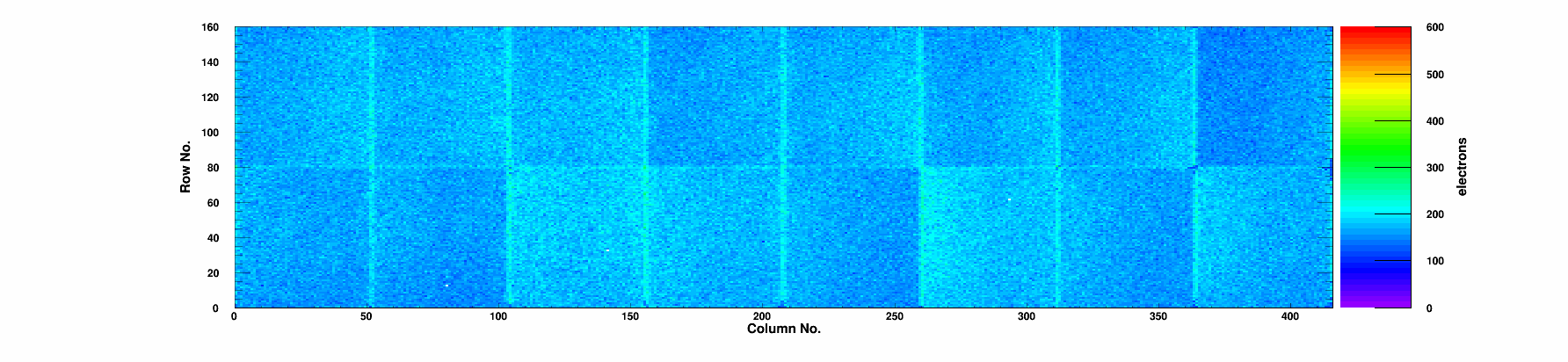

| Noise | Mean Noise | 170 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
10 | 0 | 99.86 | 98.99 | 0.47 | 18.7 | 57.5 | 10 | 0/0 | 0 | 1906 | 154 | 0 |
|
Chip 1
|
A
|
3 | 0 | 99.86 | 99.02 | 0.45 | 21.6 | 66.0 | 3 | 0/0 | 0 | 1933 | 168 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.88 | 99.33 | 0.29 | 19.1 | 59.0 | 0 | 0/0 | 0 | 1917 | 168 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.31 | 0.53 | 33.6 | 99.6 | 0 | 0/0 | 0 | 2018 | 172 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.33 | 0.7 | 33.5 | 100.5 | 0 | 0/0 | 0 | 2008 | 166 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.28 | 0.67 | 44.6 | 129.9 | 0 | 0/0 | 0 | 2089 | 175 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.36 | 0.52 | 40.5 | 119.3 | 0 | 0/0 | 0 | 2074 | 173 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.88 | 99.34 | 0.46 | 37.5 | 111.9 | 1 | 0/0 | 0 | 2034 | 170 | 0 |
|
Chip 8
|
A
|
4 | 0 | 99.88 | 99.31 | 0.67 | 45.2 | 133.1 | 4 | 0/0 | 0 | 2103 | 164 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.89 | 99.36 | 0.48 | 43.5 | 128.1 | 0 | 0/0 | 0 | 2033 | 162 | 1 |
|
Chip 10
|
A
|
8 | 0 | 99.89 | 99.43 | 0.64 | 54.8 | 159.2 | 8 | 0/0 | 0 | 2166 | 183 | 0 |
|
Chip 11
|
A
|
7 | 0 | 99.88 | 99.41 | 0.85 | 41.8 | 122.9 | 6 | 0/0 | 0 | 2090 | 177 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.89 | 99.38 | 0.49 | 33.9 | 100.6 | 2 | 0/0 | 0 | 2038 | 164 | 0 |
|
Chip 13
|
A
|
5 | 0 | 99.85 | 99.08 | 0.58 | 24.6 | 74.7 | 4 | 0/0 | 0 | 1930 | 183 | 1 |
|
Chip 14
|
A
|
9 | 0 | 99.86 | 99.04 | 0.55 | 23.4 | 71.1 | 9 | 0/0 | 0 | 1939 | 165 | 0 |
|
Chip 15
|
A
|
25 | 0 | 99.87 | 99.29 | 0.62 | 25.0 | 74.5 | 25 | 0/0 | 0 | 1965 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-10 | |
| TestTime | Test Time | 10:53 | |
| TestDuration | Duration | 1:27:47 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 34 | |
| nWarnings | # Warnings | 10 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 10 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 2 | |
| message_readback_count | Readback start marker | 8 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
