Test Date: 2016-06-10 13:39
Analysis date: 2016-06-10 15:24
Analysis date: 2016-06-10 15:24
M2249 XRayHRQualification

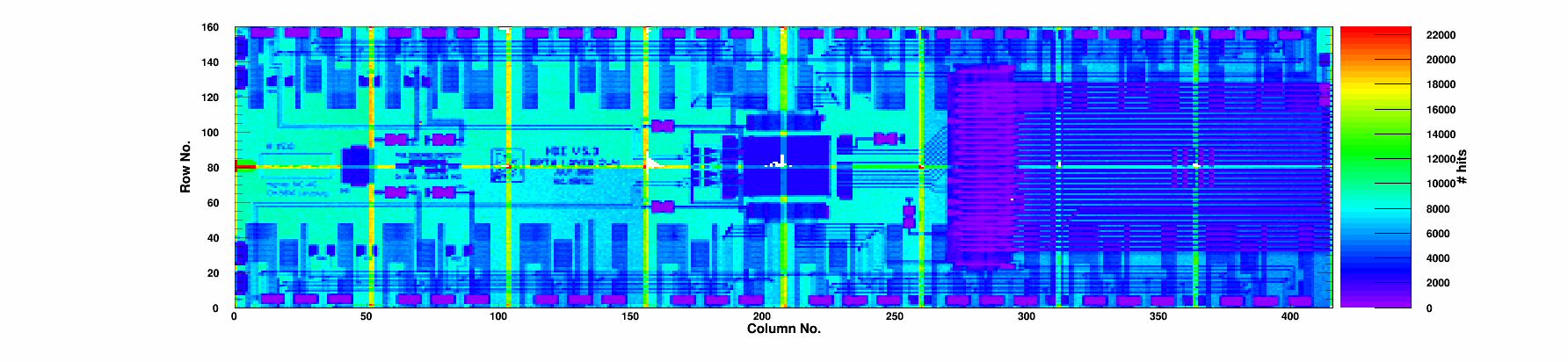

Summary
| Module | Module | M2249 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 85 | |
| BumpBondingDefects | Bump Bonding Defects | 82 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.18 | % |
| Noise | Mean Noise | 160 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.82 | 98.95 | 0.71 | 32.9 | 97.4 | 3 | 0/0 | 0 | 2037 | 167 | 0 |
|
Chip 1
|
A
|
5 | 0 | 99.87 | 99.26 | 0.59 | 32.5 | 97.8 | 5 | 0/0 | 0 | 2044 | 168 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.82 | 98.94 | 0.47 | 26.1 | 80.3 | 1 | 0/0 | 0 | 1977 | 156 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.81 | 98.96 | 0.77 | 54.6 | 160.2 | 2 | 0/0 | 0 | 2184 | 162 | 0 |
|
Chip 4
|
B
|
50 | 0 | 99.86 | 99.29 | 0.98 | 52.9 | 155.9 | 50 | 0/0 | 0 | 2165 | 160 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.32 | 0.54 | 65.0 | 188.2 | 1 | 0/0 | 0 | 2235 | 160 | 0 |
|
Chip 6
|
A
|
14 | 0 | 99.84 | 99.29 | 1.47 | 57.6 | 168.9 | 13 | 0/0 | 0 | 2151 | 152 | 1 |
|
Chip 7
|
A
|
1 | 0 | 99.85 | 99.28 | 0.56 | 63.0 | 184.5 | 1 | 0/0 | 0 | 2211 | 154 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.27 | 0.78 | 62.8 | 183.2 | 0 | 0/0 | 0 | 2206 | 159 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.27 | 0.62 | 57.4 | 166.0 | 0 | 0/0 | 0 | 2168 | 154 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.30 | 0.63 | 56.8 | 163.5 | 0 | 0/0 | 0 | 2169 | 153 | 0 |
|
Chip 11
|
A
|
5 | 0 | 99.85 | 99.29 | 0.6 | 52.3 | 153.2 | 5 | 0/0 | 0 | 2154 | 156 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.83 | 99.17 | 2.39 | 52.5 | 153.7 | 0 | 0/0 | 0 | 2142 | 168 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.85 | 99.24 | 0.79 | 27.7 | 84.8 | 0 | 0/0 | 0 | 1940 | 158 | 1 |
|
Chip 14
|
A
|
0 | 0 | 99.81 | 98.96 | 0.63 | 33.3 | 99.7 | 0 | 0/0 | 0 | 2033 | 167 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.86 | 99.09 | 0.57 | 31.3 | 92.8 | 1 | 0/0 | 0 | 2000 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-10 | |
| TestTime | Test Time | 13:39 | |
| TestDuration | Duration | 1:27:40 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
