Test Date: 2016-06-29 10:04
Analysis date: 2016-06-29 11:46
Analysis date: 2016-06-29 11:46
M2264 XRayHRQualification
Summary
| Module | Module | M2264 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 8 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

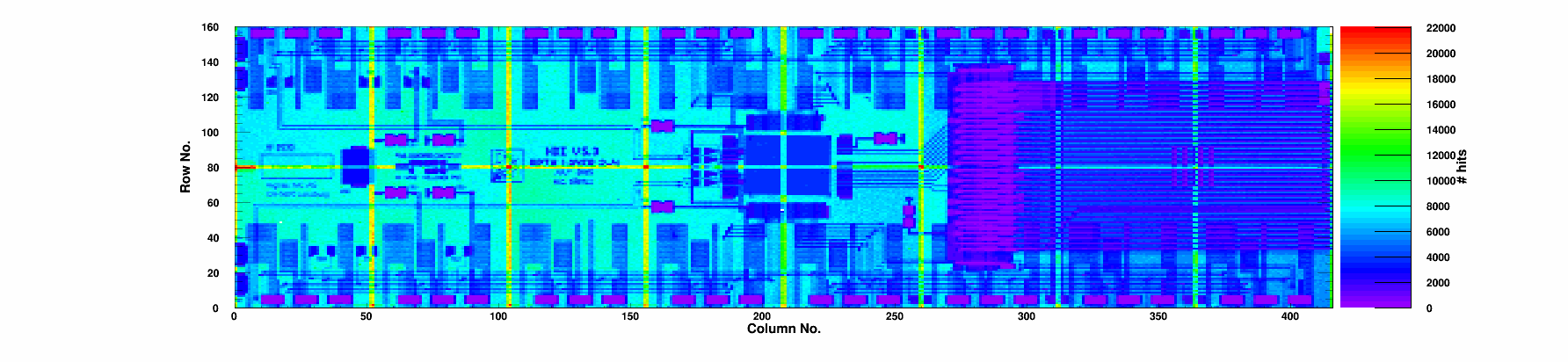

| Efficiency | Efficiency 50/120 | 99.86/99.27 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs

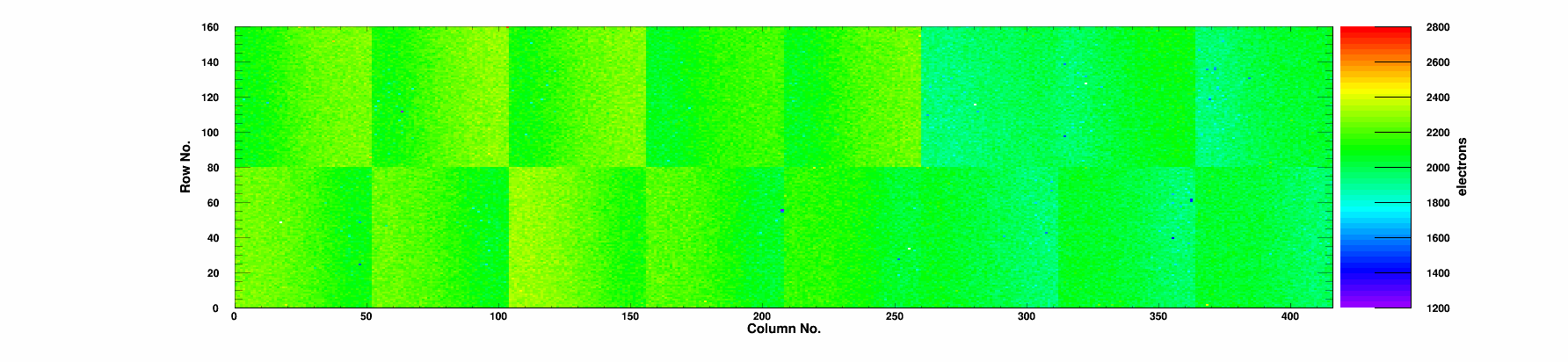

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.86 | 99.30 | 0.43 | 31.0 | 91.6 | 4 | 0/0 | 0 | 1996 | 169 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.87 | 99.27 | 0.67 | 33.1 | 98.4 | 0 | 0/0 | 0 | 1991 | 178 | 1 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 98.98 | 0.81 | 26.5 | 80.6 | 0 | 0/0 | 0 | 1964 | 169 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.22 | 2.71 | 53.0 | 153.1 | 0 | 0/0 | 0 | 2164 | 163 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.32 | 0.52 | 50.9 | 147.5 | 0 | 0/0 | 0 | 2125 | 160 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.35 | 0.83 | 61.8 | 175.8 | 0 | 0/0 | 0 | 2195 | 161 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.33 | 0.81 | 59.7 | 171.3 | 0 | 0/0 | 0 | 2201 | 163 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.38 | 0.64 | 55.8 | 161.7 | 0 | 0/0 | 0 | 2187 | 158 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.87 | 99.35 | 0.5 | 60.1 | 174.4 | 0 | 0/0 | 0 | 2148 | 156 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.25 | 1.11 | 58.5 | 168.9 | 0 | 0/0 | 0 | 2160 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.35 | 0.64 | 66.4 | 188.7 | 0 | 0/0 | 0 | 2224 | 161 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.88 | 99.32 | 0.49 | 51.6 | 149.4 | 0 | 0/0 | 0 | 2140 | 166 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.33 | 0.46 | 47.2 | 137.8 | 0 | 0/0 | 0 | 2102 | 162 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.29 | 0.47 | 29.1 | 88.0 | 0 | 0/0 | 0 | 2005 | 171 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.03 | 0.66 | 29.8 | 89.1 | 0 | 0/0 | 0 | 2012 | 165 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.26 | 0.58 | 31.6 | 93.1 | 0 | 0/0 | 0 | 2009 | 168 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-29 | |
| TestTime | Test Time | 10:04 | |
| TestDuration | Duration | 1:22:20 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.1-7-g5388ca4 on branch psi46master
