Test Date: 2016-06-30 09:26
Analysis date: 2016-06-30 14:02
Analysis date: 2016-06-30 14:02
M2268 XRayHRQualification
Summary
| Module | Module | M2268 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 3 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

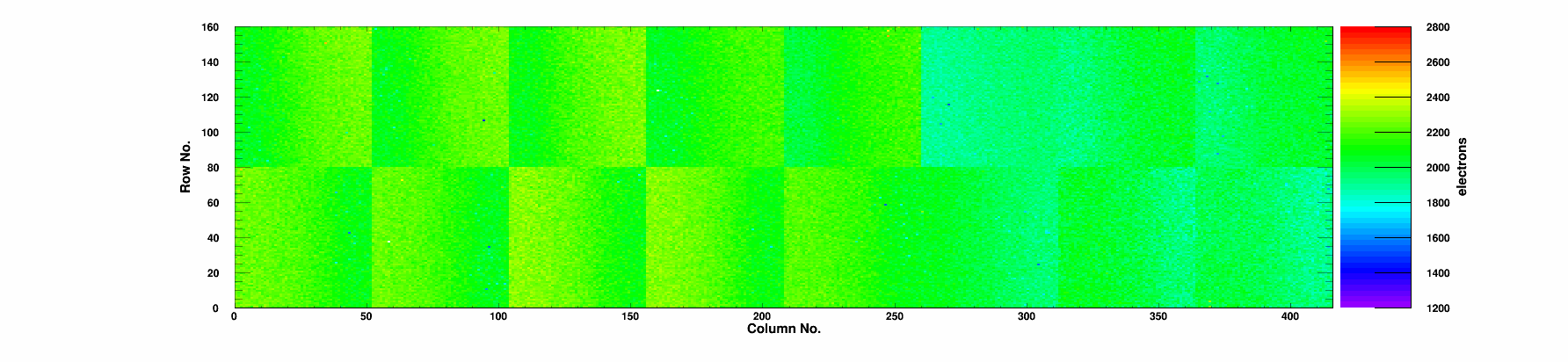

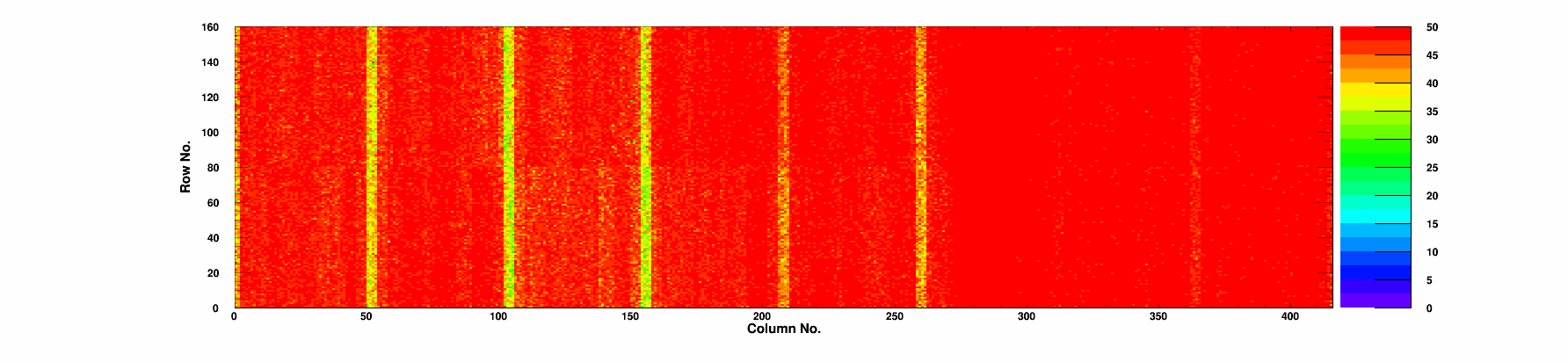

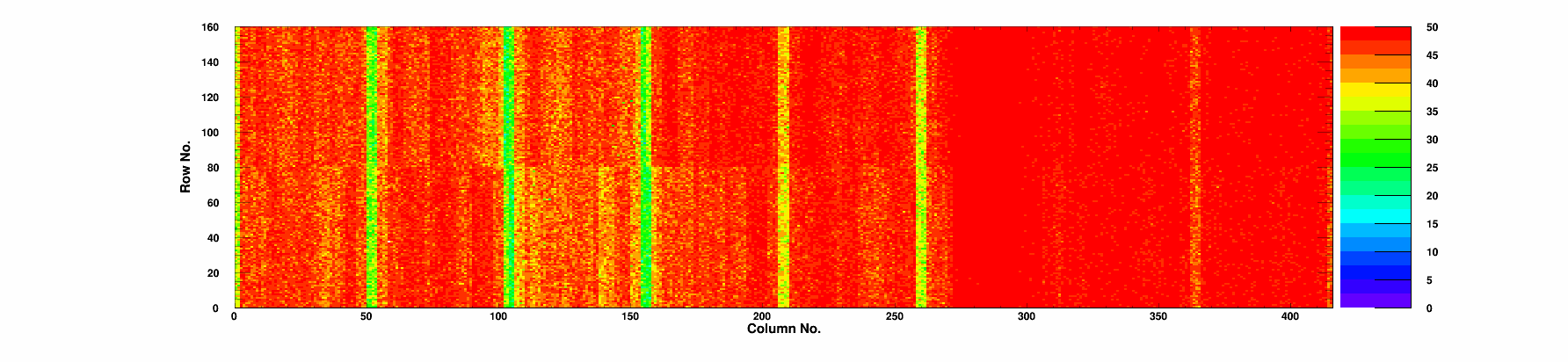

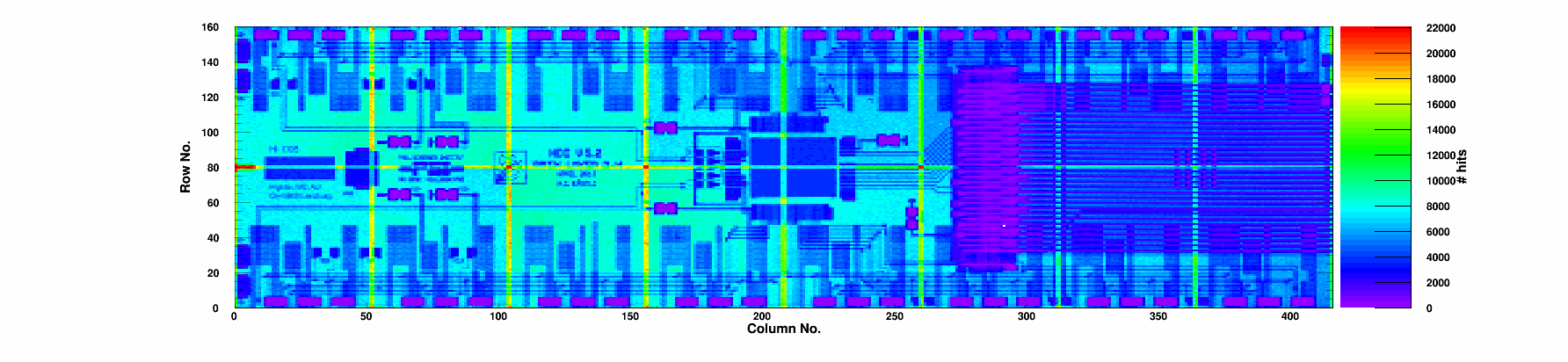

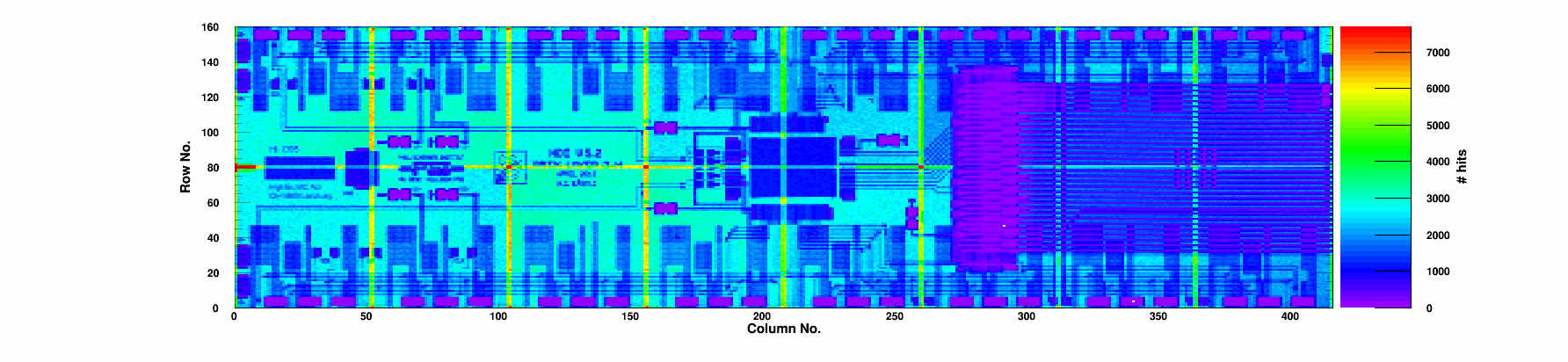

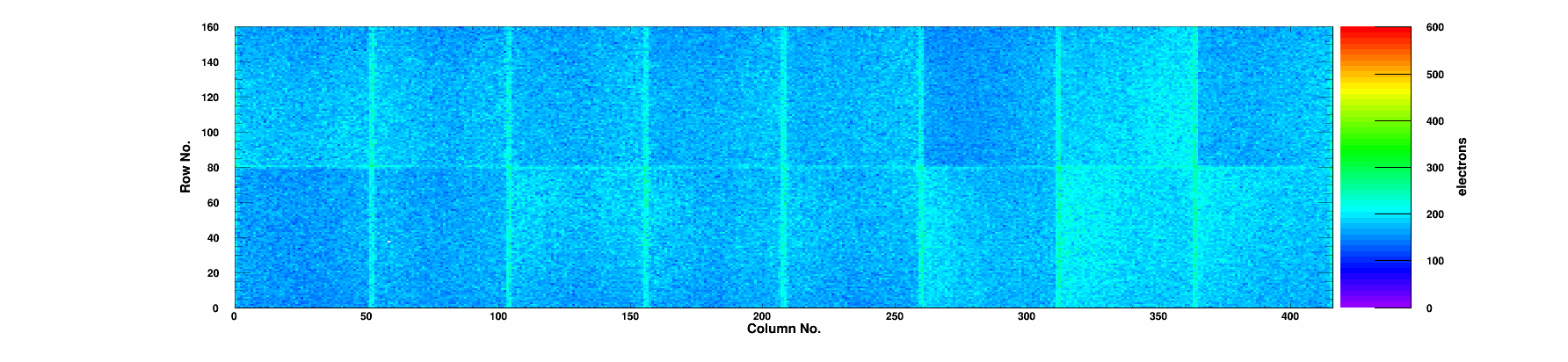

| Efficiency | Efficiency 50/120 | 99.86/99.27 | % |
| Noise | Mean Noise | 176 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.20 | 0.63 | 87.7 | 0 | 29.2 | 0/0 | 0 | 2001 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.35 | 0.55 | 100.2 | 0 | 33.3 | 0/0 | 0 | 2000 | 191 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.14 | 0.32 | 75.6 | 0 | 24.1 | 0/0 | 0 | 1927 | 163 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.35 | 0.43 | 136.4 | 0 | 46.4 | 0/0 | 0 | 2106 | 174 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.41 | 0.47 | 145.0 | 0 | 49.2 | 0/0 | 0 | 2126 | 171 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.33 | 0.68 | 178.6 | 0 | 61.9 | 0/0 | 0 | 2177 | 172 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.30 | 0.6 | 173.5 | 1 | 59.5 | 0/0 | 0 | 2167 | 175 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.33 | 0.56 | 165.8 | 0 | 57.2 | 0/0 | 0 | 2167 | 176 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.14 | 0.55 | 157.0 | 0 | 53.7 | 0/0 | 0 | 2170 | 161 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.87 | 99.35 | 1.63 | 159.7 | 0 | 54.7 | 0/0 | 0 | 2138 | 168 | 1 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.27 | 0.72 | 190.9 | 0 | 65.8 | 0/0 | 0 | 2196 | 179 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.85 | 99.28 | 0.6 | 166.3 | 0 | 56.3 | 0/0 | 0 | 2188 | 174 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.33 | 0.56 | 148.1 | 0 | 50.2 | 0/0 | 0 | 2147 | 174 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.85 | 99.25 | 0.42 | 89.2 | 1 | 29.1 | 0/0 | 0 | 2001 | 180 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.25 | 0.54 | 101.0 | 0 | 33.4 | 0/0 | 0 | 1999 | 196 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 98.99 | 0.73 | 92.7 | 0 | 30.8 | 0/0 | 0 | 1963 | 185 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-30 | |
| TestTime | Test Time | 09:26 | |
| TestDuration | Duration | 1:24:44 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.1-7-g5388ca4 on branch psi46master
