Test Date: 2016-06-30 09:26
Analysis date: 2016-07-04 10:09
Analysis date: 2016-07-04 10:09

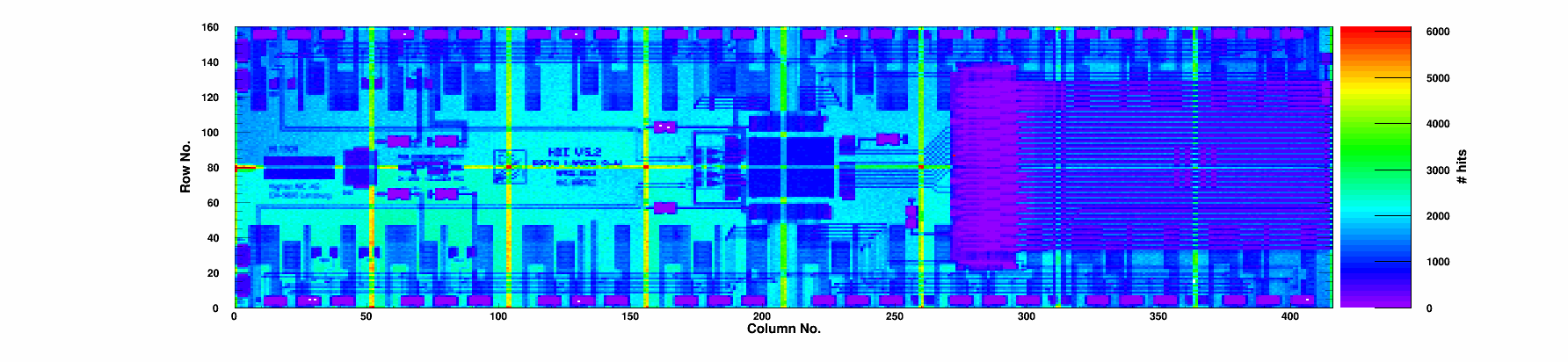

M2269 XRayHRQualification
| Comment | Comment | comment.txt: Was dammaged during handling - was already C because of a bad DC comment.txt~: Was dammaged during handling - was already C because of a bad DC |
Summary
| Module | Module | M2269 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 74 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 1 | |

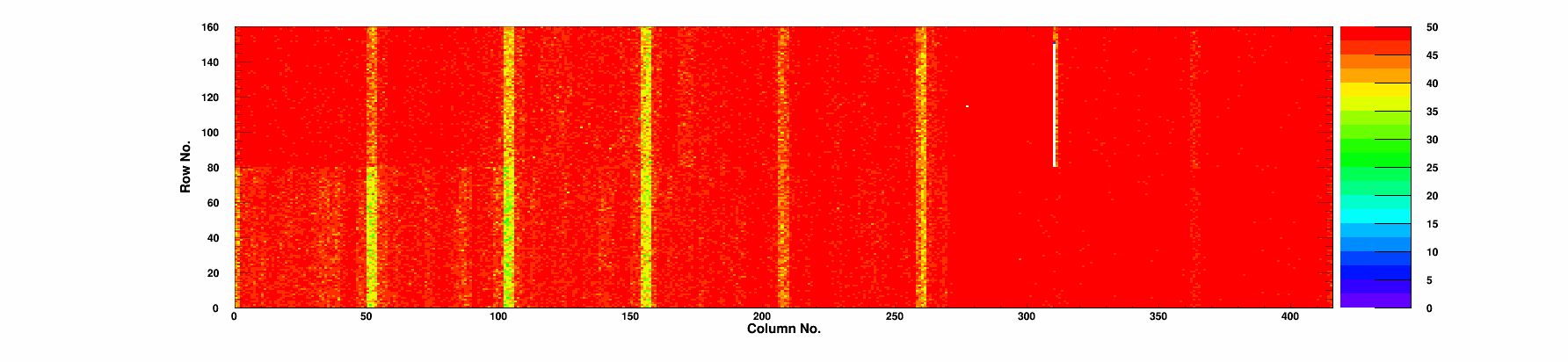

| Efficiency | Efficiency 50/120 | 99.87/99.27 | % |

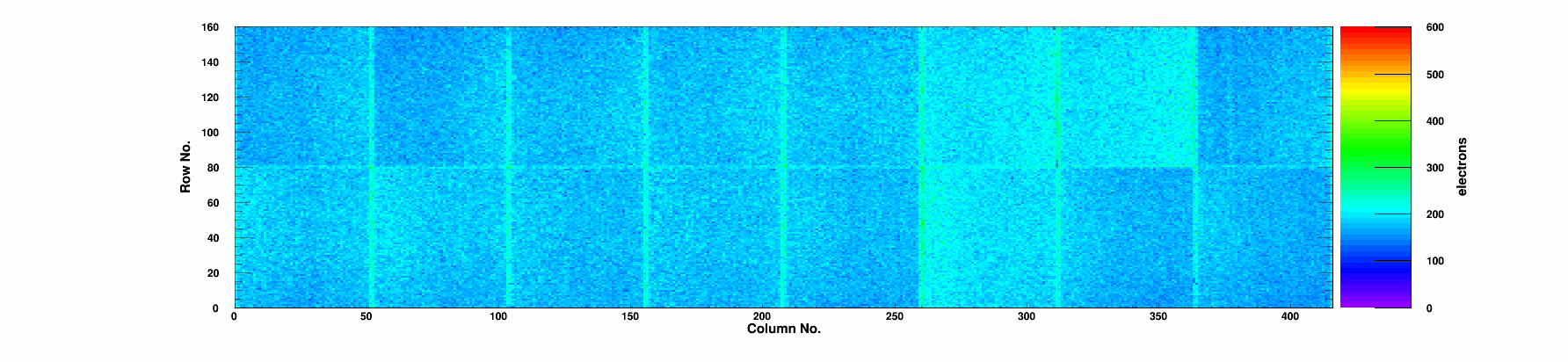

| Noise | Mean Noise | 181 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.84 | 98.97 | 0.4 | 20.3 | 62.8 | 0 | 0/0 | 0 | 1956 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.10 | 0.69 | 23.7 | 73.3 | 0 | 0/0 | 0 | 1945 | 201 | 0 |
|
Chip 2
|
C
|
72 | 1 | 99.87 | 99.18 | 0.45 | 20.3 | 60.2 | 0 | 0/0 | 2 | 1913 | 199 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.39 | 0.64 | 36.0 | 107.8 | 0 | 0/0 | 0 | 2083 | 180 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.13 | 0.5 | 37.1 | 111.3 | 0 | 0/0 | 0 | 2043 | 180 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.34 | 0.55 | 44.9 | 132.4 | 0 | 0/0 | 0 | 2102 | 177 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.30 | 0.49 | 37.3 | 111.8 | 0 | 0/0 | 0 | 2074 | 172 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.44 | 0.47 | 34.5 | 104.7 | 0 | 0/0 | 0 | 2053 | 173 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.15 | 0.61 | 44.2 | 131.7 | 0 | 0/0 | 0 | 2122 | 182 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.33 | 0.54 | 47.6 | 141.1 | 0 | 0/0 | 0 | 2118 | 184 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.32 | 0.59 | 47.0 | 137.3 | 0 | 0/0 | 0 | 2110 | 178 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.32 | 0.62 | 41.9 | 124.3 | 0 | 0/0 | 0 | 2114 | 181 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.33 | 0.5 | 37.5 | 111.9 | 0 | 0/0 | 0 | 2090 | 177 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.88 | 99.37 | 0.41 | 24.1 | 74.0 | 0 | 0/0 | 0 | 1956 | 198 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.33 | 0.44 | 23.4 | 72.1 | 2 | 0/0 | 0 | 1965 | 175 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.88 | 99.27 | 0.47 | 23.6 | 71.7 | 0 | 0/0 | 0 | 1965 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-30 | |
| TestTime | Test Time | 09:26 | |
| TestDuration | Duration | 1:24:44 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.1-7-g5388ca4 on branch psi46master
