Test Date: 2016-07-22 15:16
Analysis date: 2016-07-22 17:01
Analysis date: 2016-07-22 17:01
M2271 XRayHRQualification
Summary
| Module | Module | M2271 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.08 | % |

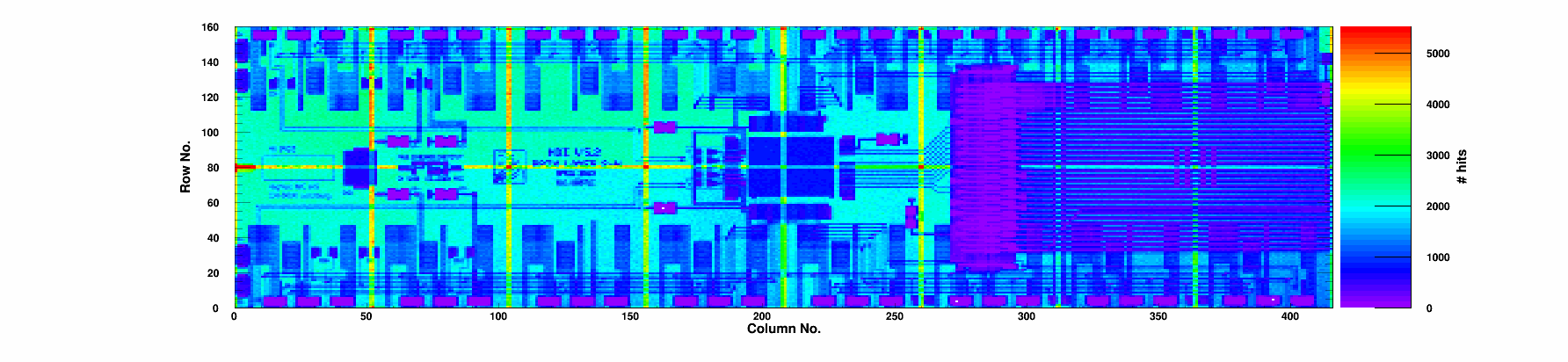

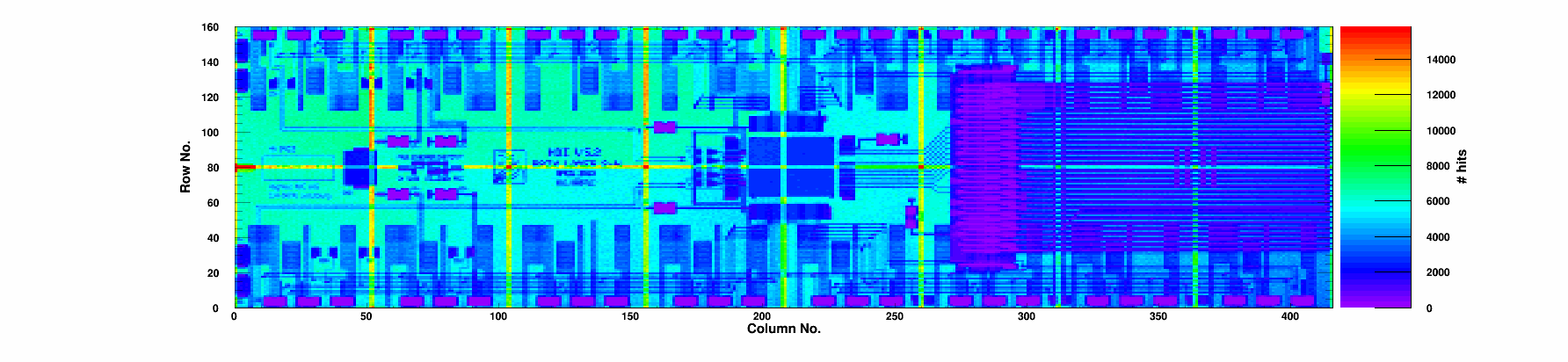

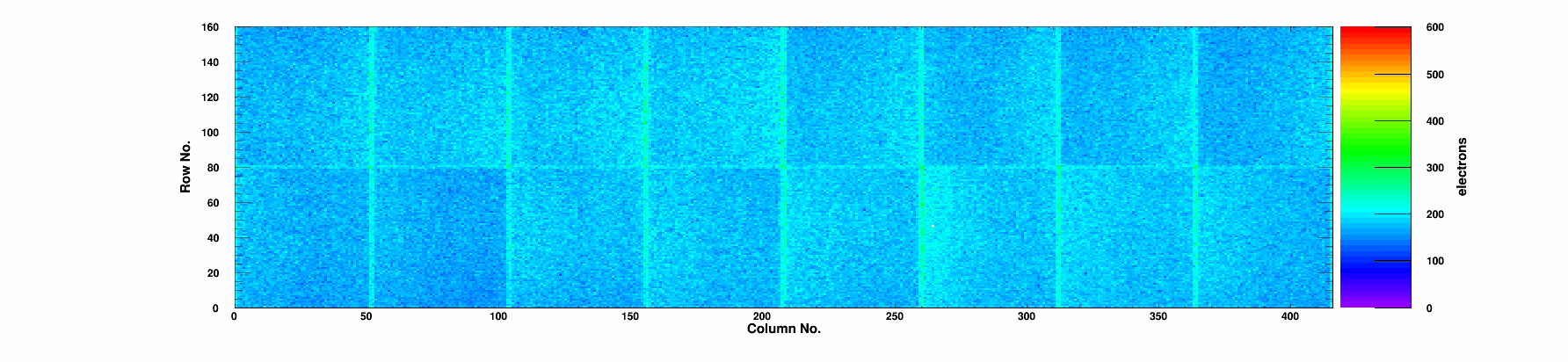

| Noise | Mean Noise | 179 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.30 | 0.39 | 22.3 | 66.9 | 0 | 0/0 | 0 | 1922 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.05 | 0.63 | 23.1 | 70.3 | 0 | 0/0 | 0 | 1939 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.01 | 0.51 | 21.9 | 67.4 | 0 | 0/0 | 0 | 1905 | 178 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.84 | 98.94 | 0.55 | 36.1 | 107.5 | 0 | 0/0 | 0 | 2009 | 180 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.25 | 0.88 | 41.6 | 123.7 | 0 | 0/0 | 0 | 2080 | 186 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.23 | 0.63 | 48.4 | 141.3 | 0 | 0/0 | 0 | 2098 | 184 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.16 | 1.22 | 42.6 | 125.7 | 0 | 0/0 | 0 | 2066 | 181 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.83 | 98.97 | 0.96 | 47.1 | 138.9 | 0 | 0/0 | 0 | 2112 | 176 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.22 | 0.66 | 43.0 | 127.0 | 0 | 0/0 | 0 | 2101 | 171 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.00 | 0.7 | 39.5 | 116.5 | 0 | 0/0 | 0 | 2054 | 167 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.02 | 0.67 | 41.2 | 120.7 | 0 | 0/0 | 0 | 2058 | 178 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 99.12 | 0.53 | 34.0 | 101.5 | 0 | 0/0 | 0 | 2018 | 179 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.84 | 98.93 | 0.77 | 35.2 | 104.4 | 0 | 0/0 | 0 | 2037 | 182 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 98.96 | 0.62 | 20.8 | 63.5 | 0 | 0/0 | 0 | 1945 | 186 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.93 | 0.5 | 21.3 | 64.8 | 0 | 0/0 | 0 | 1929 | 183 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.17 | 0.44 | 21.6 | 64.8 | 0 | 0/0 | 0 | 1936 | 177 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-07-22 | |
| TestTime | Test Time | 15:16 | |
| TestDuration | Duration | 1:33:46 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
