Test Date: 2016-07-25 09:53
Analysis date: 2016-07-25 11:40
Analysis date: 2016-07-25 11:40

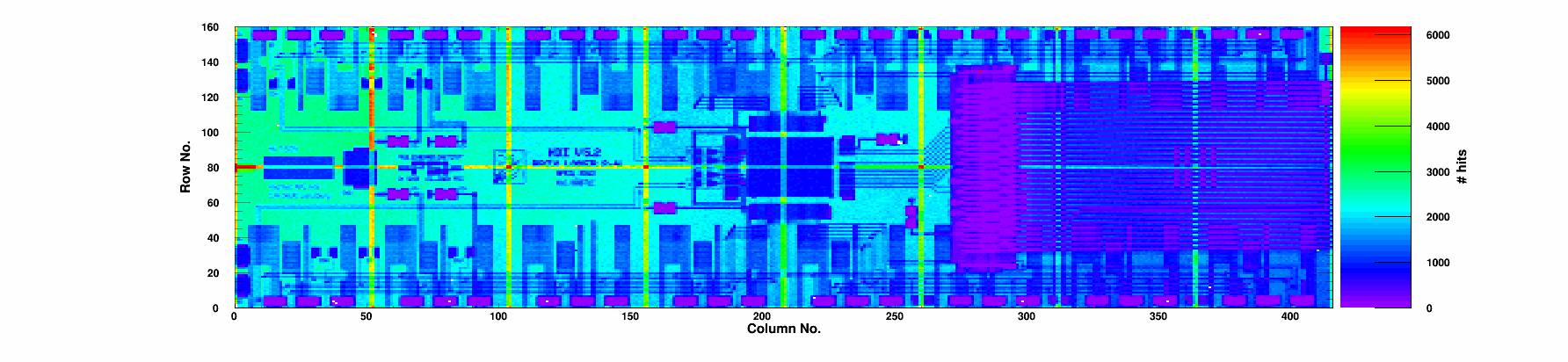

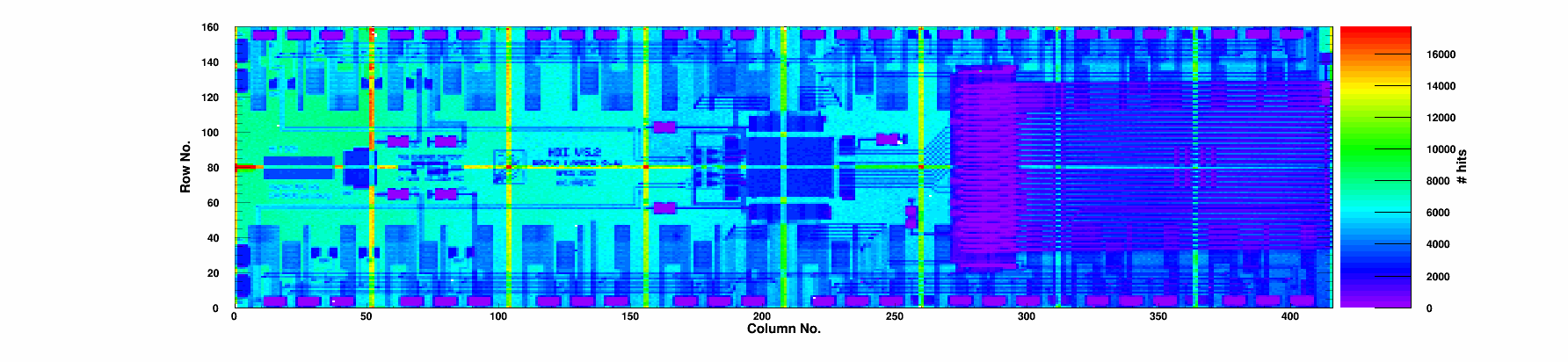

M2272 XRayHRQualification
Summary
| Module | Module | M2272 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 22 | |
| BumpBondingDefects | Bump Bonding Defects | 18 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |
| Noise | Mean Noise | 165 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.30 | 0.42 | 24.0 | 71.8 | 0 | 0/0 | 0 | 1935 | 169 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.16 | 0.39 | 24.4 | 73.7 | 0 | 0/0 | 0 | 1931 | 161 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.86 | 99.24 | 0.43 | 24.2 | 73.2 | 0 | 0/0 | 0 | 1943 | 170 | 1 |
|
Chip 3
|
A
|
6 | 0 | 99.87 | 99.33 | 0.65 | 41.5 | 121.4 | 5 | 0/0 | 0 | 2050 | 178 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.17 | 0.71 | 38.8 | 114.4 | 0 | 0/0 | 0 | 2041 | 165 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.28 | 0.61 | 49.5 | 142.6 | 0 | 0/0 | 0 | 2084 | 163 | 0 |
|
Chip 6
|
A
|
4 | 0 | 99.86 | 99.14 | 0.92 | 50.5 | 145.8 | 4 | 0/0 | 0 | 2115 | 165 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.85 | 99.33 | 0.76 | 56.1 | 163.4 | 1 | 0/0 | 0 | 2141 | 160 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.86 | 99.29 | 0.74 | 49.3 | 144.7 | 3 | 0/0 | 0 | 2112 | 167 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.88 | 99.31 | 0.59 | 46.4 | 135.6 | 1 | 0/0 | 0 | 2099 | 162 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.84 | 99.04 | 1.04 | 49.4 | 142.5 | 1 | 0/0 | 0 | 2086 | 171 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 99.01 | 0.7 | 39.4 | 116.2 | 0 | 0/0 | 0 | 2059 | 163 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.86 | 99.22 | 0.46 | 37.7 | 111.6 | 2 | 0/0 | 0 | 1994 | 171 | 1 |
|
Chip 13
|
A
|
1 | 0 | 99.85 | 99.11 | 0.55 | 21.1 | 64.3 | 1 | 0/0 | 0 | 1931 | 161 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.86 | 99.28 | 0.63 | 20.7 | 63.2 | 0 | 0/0 | 0 | 1887 | 154 | 1 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 98.93 | 0.52 | 21.2 | 63.6 | 0 | 0/0 | 0 | 1924 | 162 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-07-25 | |
| TestTime | Test Time | 09:53 | |
| TestDuration | Duration | 1:32:29 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
