Test Date: 2016-07-22 15:16
Analysis date: 2016-07-22 17:06
Analysis date: 2016-07-22 17:06
M2273 XRayHRQualification
Summary
| Module | Module | M2273 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 72 | |
| BumpBondingDefects | Bump Bonding Defects | 66 | |
| NoisyPixels | Noisy Pixels | 5 | |
| HotPixelDefects | Hot Pixels | 1 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.30 | % |

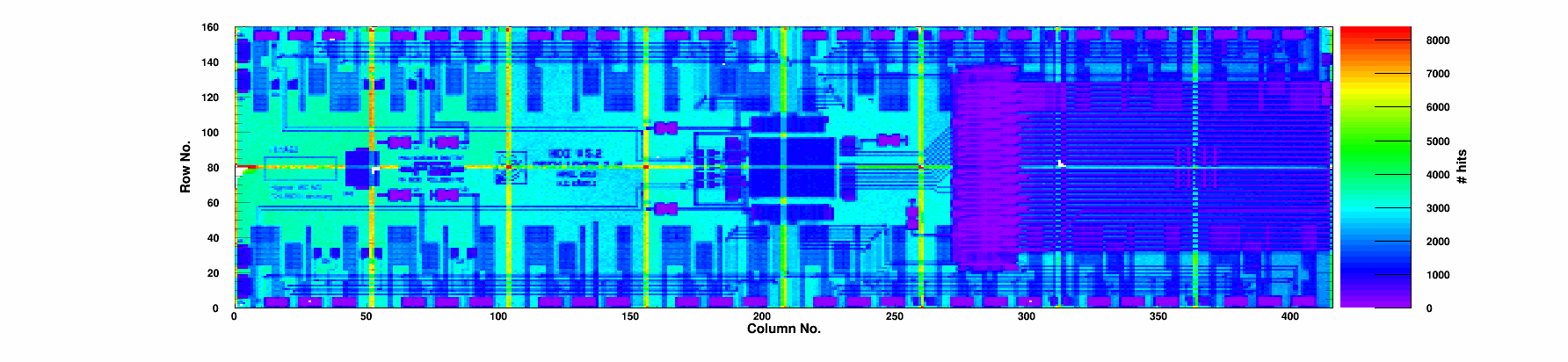

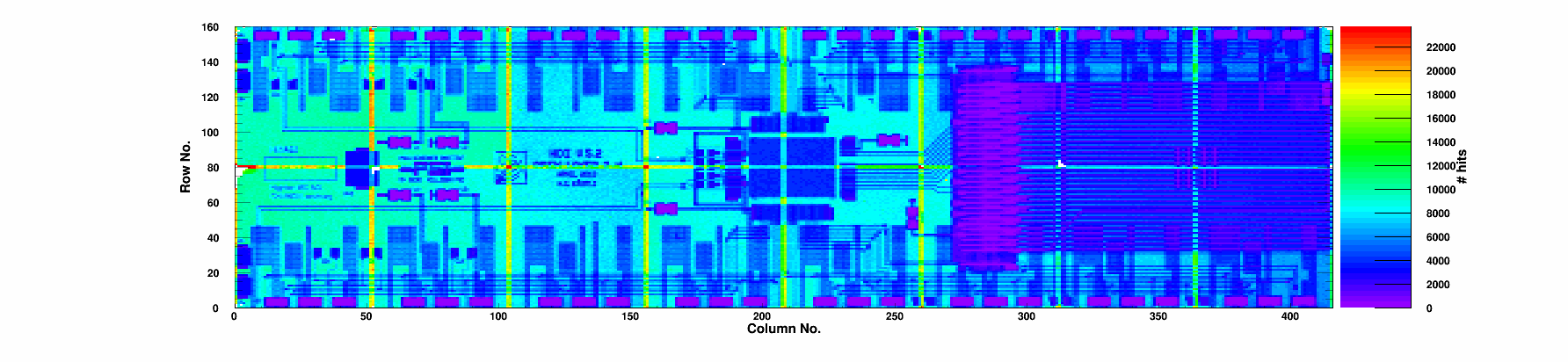

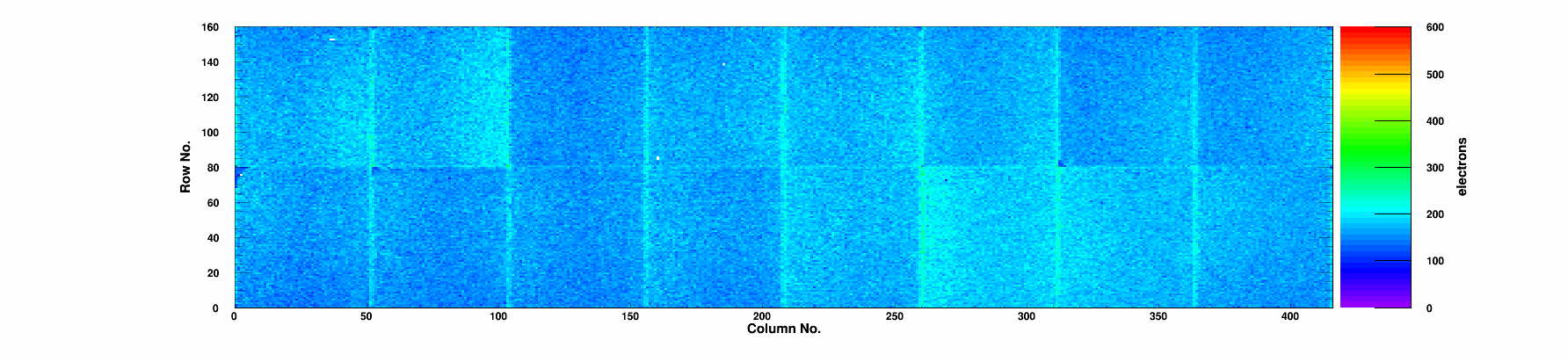

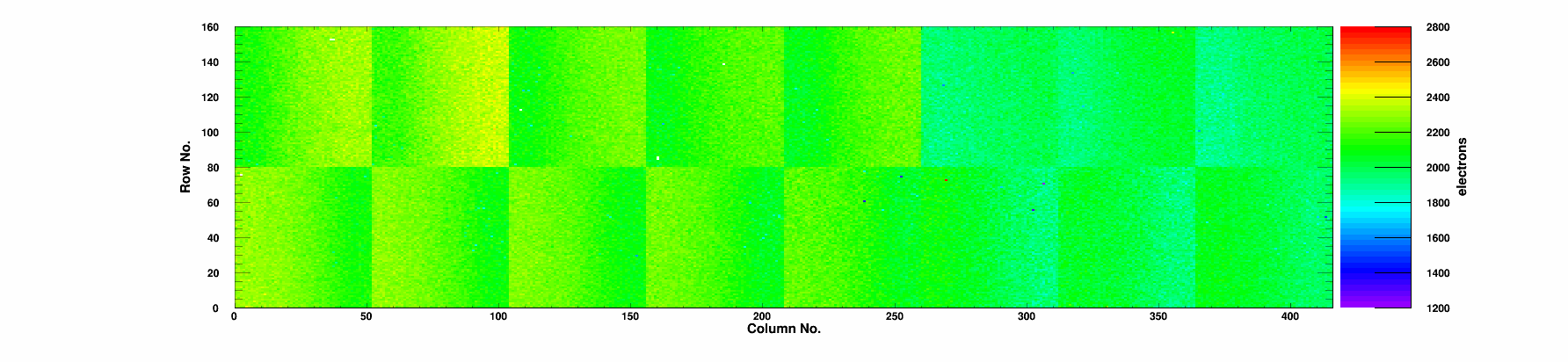

| Noise | Mean Noise | 168 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.87 | 99.33 | 0.51 | 27.3 | 81.8 | 7 | 0/0 | 0 | 1962 | 162 | 0 |
|
Chip 1
|
A
|
7 | 0 | 99.87 | 99.32 | 0.44 | 29.8 | 89.9 | 7 | 0/0 | 0 | 1999 | 162 | 0 |
|
Chip 2
|
A
|
2 | 0 | 99.83 | 99.01 | 0.58 | 28.9 | 87.7 | 2 | 0/0 | 0 | 1967 | 171 | 0 |
|
Chip 3
|
A
|
4 | 0 | 99.87 | 99.33 | 0.58 | 55.2 | 161.1 | 4 | 0/0 | 0 | 2157 | 173 | 0 |
|
Chip 4
|
A
|
2 | 0 | 99.86 | 99.28 | 0.62 | 55.9 | 163.6 | 0 | 0/0 | 0 | 2082 | 169 | 2 |
|
Chip 5
|
A
|
1 | 0 | 99.89 | 99.37 | 0.81 | 61.5 | 175.2 | 1 | 0/0 | 0 | 2184 | 155 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.84 | 99.32 | 0.64 | 66.0 | 191.4 | 2 | 0/0 | 0 | 2274 | 177 | 0 |
|
Chip 7
|
A
|
7 | 0 | 99.88 | 99.36 | 0.7 | 70.3 | 203.7 | 5 | 0/0 | 0 | 2158 | 171 | 2 |
|
Chip 8
|
A
|
29 | 0 | 99.87 | 99.32 | 0.61 | 67.8 | 195.8 | 28 | 0/0 | 0 | 2183 | 159 | 1 |
|
Chip 9
|
A
|
9 | 0 | 99.87 | 99.33 | 0.69 | 62.2 | 179.4 | 9 | 0/0 | 0 | 2200 | 157 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.32 | 0.57 | 61.9 | 175.9 | 0 | 0/0 | 0 | 2186 | 158 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.34 | 0.61 | 56.0 | 163.5 | 0 | 0/0 | 0 | 2166 | 163 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.35 | 0.66 | 53.9 | 158.2 | 0 | 0/0 | 0 | 2148 | 175 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.85 | 99.31 | 0.5 | 32.5 | 98.5 | 0 | 0/0 | 0 | 2017 | 189 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.29 | 0.54 | 33.4 | 100.5 | 0 | 0/0 | 0 | 2000 | 179 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.85 | 99.26 | 0.51 | 31.5 | 93.7 | 1 | 0/0 | 0 | 2016 | 166 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-07-22 | |
| TestTime | Test Time | 15:16 | |
| TestDuration | Duration | 1:33:46 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
