Test Date: 2016-07-25 09:53
Analysis date: 2016-07-25 11:48
Analysis date: 2016-07-25 11:48
M2277 XRayHRQualification
Summary
| Module | Module | M2277 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 20 | |
| BumpBondingDefects | Bump Bonding Defects | 17 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.14 | % |

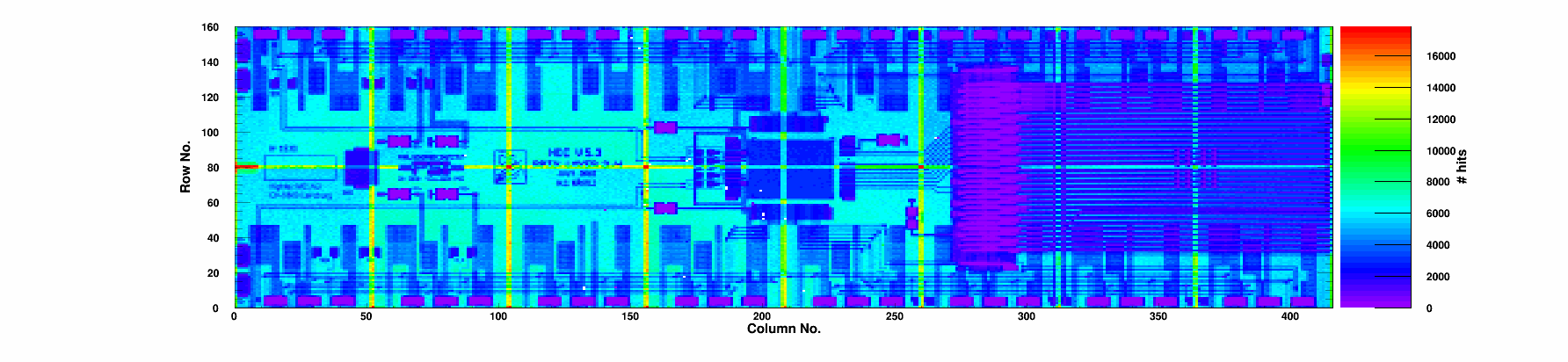

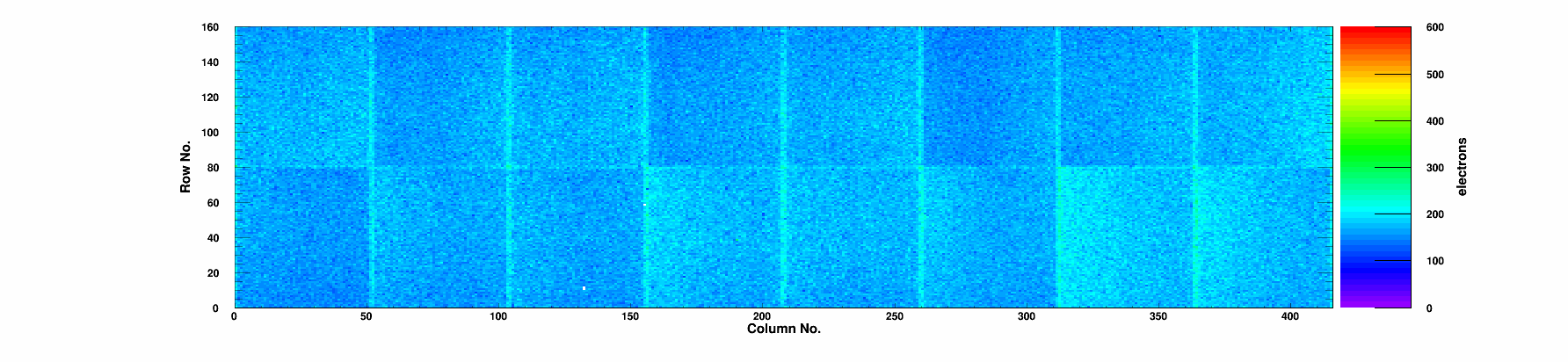

| Noise | Mean Noise | 170 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.84 | 98.92 | 0.58 | 23.4 | 69.9 | 0 | 0/0 | 0 | 1962 | 176 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 98.91 | 0.74 | 22.2 | 67.4 | 0 | 0/0 | 0 | 1949 | 166 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.84 | 99.02 | 0.25 | 19.1 | 59.1 | 1 | 0/0 | 0 | 1925 | 158 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.15 | 0.71 | 37.3 | 110.2 | 0 | 0/0 | 0 | 2057 | 169 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.86 | 99.25 | 0.66 | 36.0 | 107.2 | 3 | 0/0 | 0 | 2038 | 161 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.87 | 99.23 | 0.69 | 47.6 | 140.0 | 2 | 0/0 | 0 | 2120 | 170 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.87 | 99.25 | 0.62 | 38.6 | 115.0 | 1 | 0/0 | 0 | 2057 | 163 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.21 | 0.7 | 42.7 | 127.0 | 0 | 0/0 | 0 | 2092 | 171 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.28 | 0.55 | 42.2 | 125.7 | 0 | 0/0 | 0 | 2072 | 159 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.25 | 0.57 | 46.3 | 137.0 | 0 | 0/0 | 0 | 2109 | 167 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.87 | 99.11 | 0.75 | 48.5 | 141.6 | 0 | 0/0 | 0 | 2199 | 166 | 3 |
|
Chip 11
|
A
|
8 | 0 | 99.87 | 99.27 | 0.54 | 43.0 | 127.8 | 8 | 0/0 | 0 | 2087 | 177 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.85 | 99.19 | 0.62 | 41.2 | 122.0 | 2 | 0/0 | 0 | 2087 | 173 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 98.95 | 0.48 | 23.6 | 71.9 | 0 | 0/0 | 0 | 1964 | 171 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.99 | 0.64 | 26.7 | 80.5 | 0 | 0/0 | 0 | 1963 | 186 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 99.26 | 0.4 | 27.6 | 81.8 | 0 | 0/0 | 0 | 1973 | 180 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-07-25 | |
| TestTime | Test Time | 09:53 | |
| TestDuration | Duration | 1:32:29 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
