Test Date: 2016-08-10 16:30
Analysis date: 2016-08-10 18:09
Analysis date: 2016-08-10 18:09
M2280 XRayHRQualification
Summary
| Module | Module | M2280 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 59 | |
| BumpBondingDefects | Bump Bonding Defects | 58 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

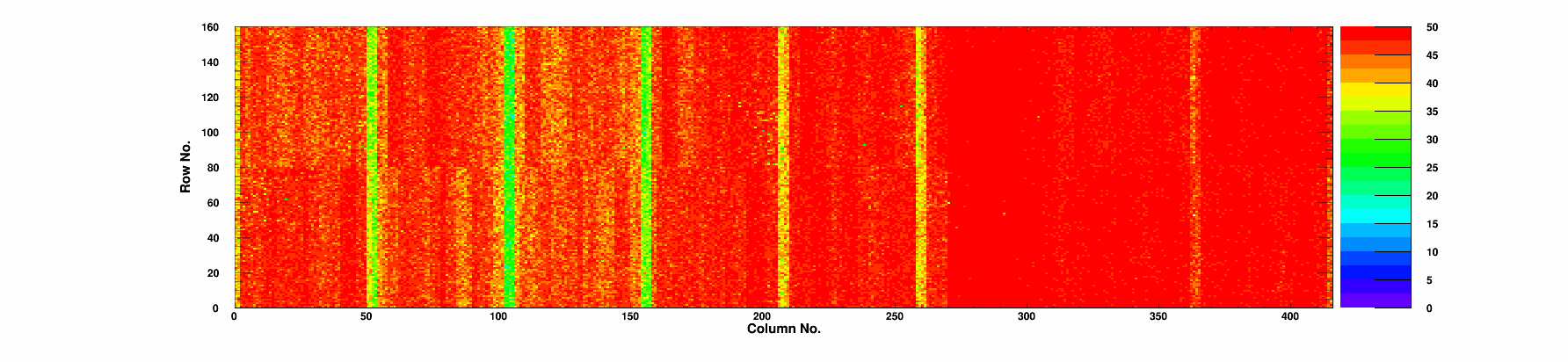

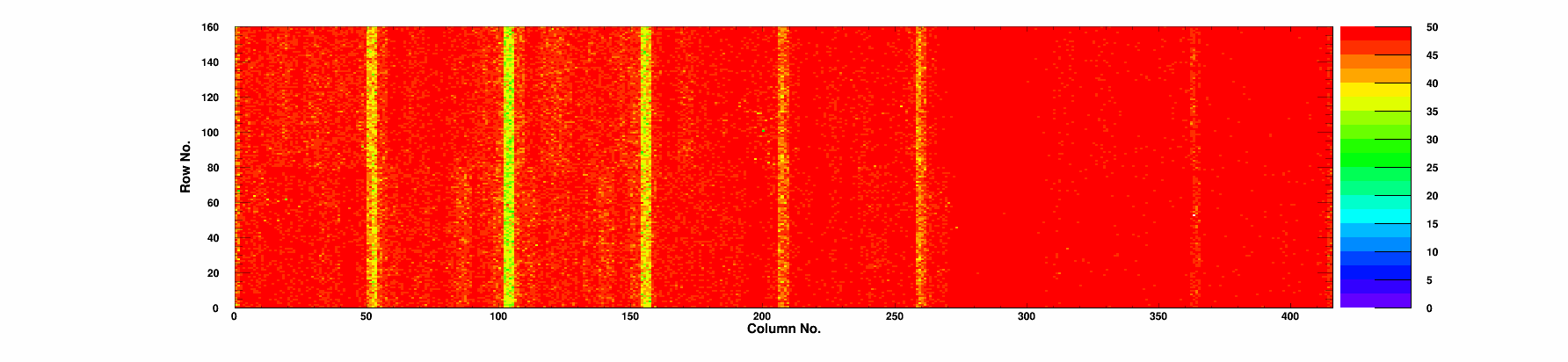

| Efficiency | Efficiency 50/120 | 99.86/99.24 | % |

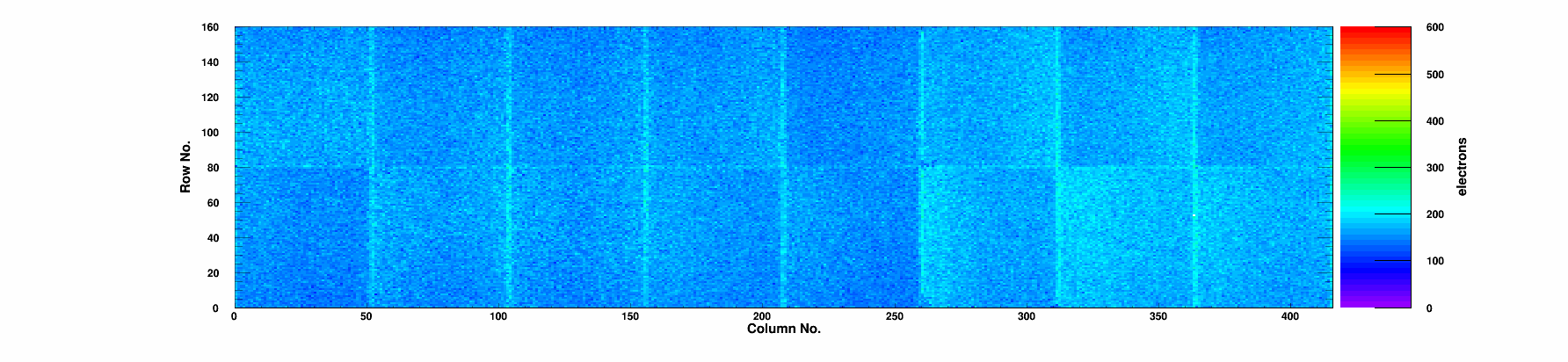

| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.29 | 0.42 | 29.6 | 89.8 | 0 | 0/0 | 0 | 1981 | 164 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.00 | 0.49 | 31.8 | 96.9 | 0 | 0/0 | 0 | 1994 | 168 | 0 |
|
Chip 2
|
A
|
14 | 0 | 99.88 | 99.33 | 0.52 | 25.4 | 79.3 | 14 | 0/0 | 0 | 1933 | 169 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.87 | 99.25 | 0.7 | 42.8 | 129.6 | 2 | 0/0 | 0 | 2059 | 150 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.20 | 0.85 | 47.4 | 143.1 | 0 | 0/0 | 0 | 2087 | 159 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.27 | 0.78 | 60.1 | 176.3 | 0 | 0/0 | 0 | 2153 | 156 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.27 | 0.83 | 54.1 | 159.7 | 0 | 0/0 | 0 | 2126 | 157 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.88 | 99.33 | 0.63 | 57.3 | 168.9 | 2 | 0/0 | 0 | 2178 | 164 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.31 | 0.59 | 49.0 | 145.7 | 0 | 0/0 | 0 | 2093 | 151 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.87 | 99.33 | 0.62 | 59.2 | 175.0 | 2 | 0/0 | 0 | 2192 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.28 | 0.61 | 61.8 | 179.9 | 0 | 0/0 | 0 | 2208 | 160 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.85 | 99.09 | 0.69 | 43.6 | 131.9 | 0 | 0/0 | 0 | 2061 | 158 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.86 | 99.23 | 0.53 | 42.0 | 126.4 | 1 | 0/0 | 0 | 2063 | 153 | 0 |
|
Chip 13
|
A
|
33 | 0 | 99.87 | 99.31 | 0.54 | 27.1 | 83.8 | 33 | 0/0 | 0 | 1962 | 169 | 0 |
|
Chip 14
|
A
|
3 | 0 | 99.87 | 99.30 | 0.52 | 31.8 | 96.8 | 2 | 0/0 | 0 | 1965 | 178 | 1 |
|
Chip 15
|
A
|
2 | 0 | 99.84 | 99.08 | 0.79 | 31.0 | 93.8 | 2 | 0/0 | 0 | 2008 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-10 | |
| TestTime | Test Time | 16:30 | |
| TestDuration | Duration | 1:26:52 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
