Test Date: 2016-08-10 08:59
Analysis date: 2016-08-10 15:55
Analysis date: 2016-08-10 15:55
M2283 XRayHRQualification
Summary
| Module | Module | M2283 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 21 | |
| BumpBondingDefects | Bump Bonding Defects | 21 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.13 | % |

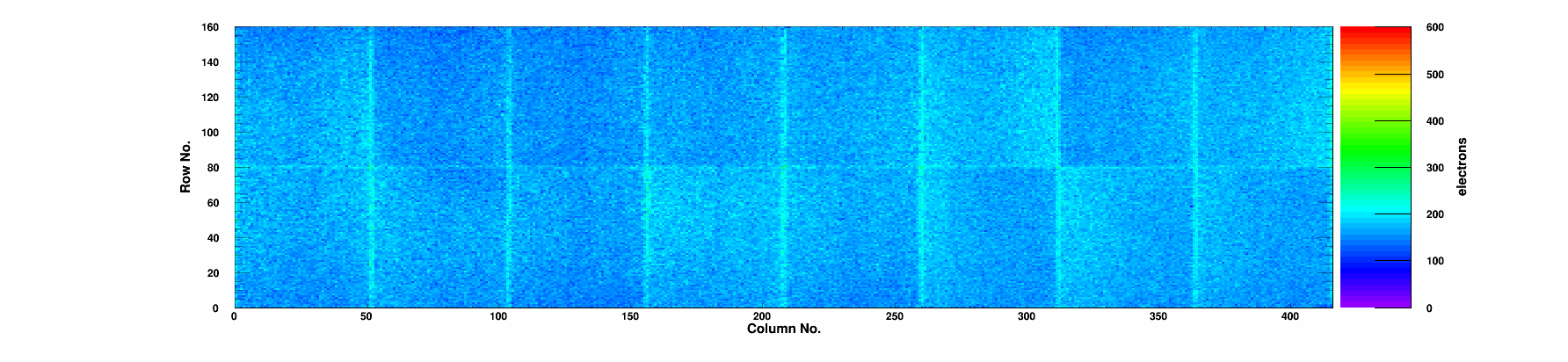

| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 98.93 | 0.72 | 67.3 | 0 | 22.3 | 0/0 | 0 | 1969 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.19 | 0.55 | 69.9 | 0 | 23.1 | 0/0 | 0 | 1973 | 163 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.26 | 0.54 | 68.8 | 0 | 22.4 | 0/0 | 0 | 1984 | 177 | 0 |
|
Chip 3
|
A
|
3 | 0 | 99.83 | 98.98 | 0.52 | 112.7 | 3 | 37.8 | 0/0 | 0 | 2122 | 167 | 0 |
|
Chip 4
|
A
|
2 | 0 | 99.87 | 99.26 | 0.59 | 116.0 | 2 | 38.8 | 0/0 | 0 | 2119 | 162 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.85 | 99.25 | 0.87 | 134.6 | 2 | 46.1 | 0/0 | 0 | 2150 | 154 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 98.98 | 0.6 | 134.6 | 0 | 45.7 | 0/0 | 0 | 2152 | 154 | 0 |
|
Chip 7
|
A
|
3 | 0 | 99.84 | 99.22 | 0.91 | 154.9 | 3 | 52.7 | 0/0 | 0 | 2199 | 166 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.84 | 98.96 | 0.76 | 138.4 | 3 | 46.9 | 0/0 | 0 | 2191 | 166 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.28 | 0.68 | 135.1 | 0 | 45.9 | 0/0 | 0 | 2203 | 165 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.24 | 0.63 | 138.9 | 0 | 47.5 | 0/0 | 0 | 2179 | 160 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.25 | 0.48 | 107.9 | 1 | 35.9 | 0/0 | 0 | 2127 | 174 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 98.99 | 0.84 | 104.1 | 0 | 34.6 | 0/0 | 0 | 2103 | 166 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.16 | 0.47 | 59.6 | 0 | 19.3 | 0/0 | 0 | 1986 | 166 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.20 | 0.41 | 64.6 | 0 | 21.0 | 0/0 | 0 | 1948 | 171 | 0 |
|
Chip 15
|
A
|
7 | 0 | 99.86 | 98.98 | 0.32 | 57.4 | 7 | 18.6 | 0/0 | 0 | 1955 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-10 | |
| TestTime | Test Time | 08:59 | |
| TestDuration | Duration | 1:33:13 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
