Test Date: 2016-08-22 17:23
Analysis date: 2016-08-22 19:30
Analysis date: 2016-08-22 19:30
M2294 XRayHRQualification
Summary
| Module | Module | M2294 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 6 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

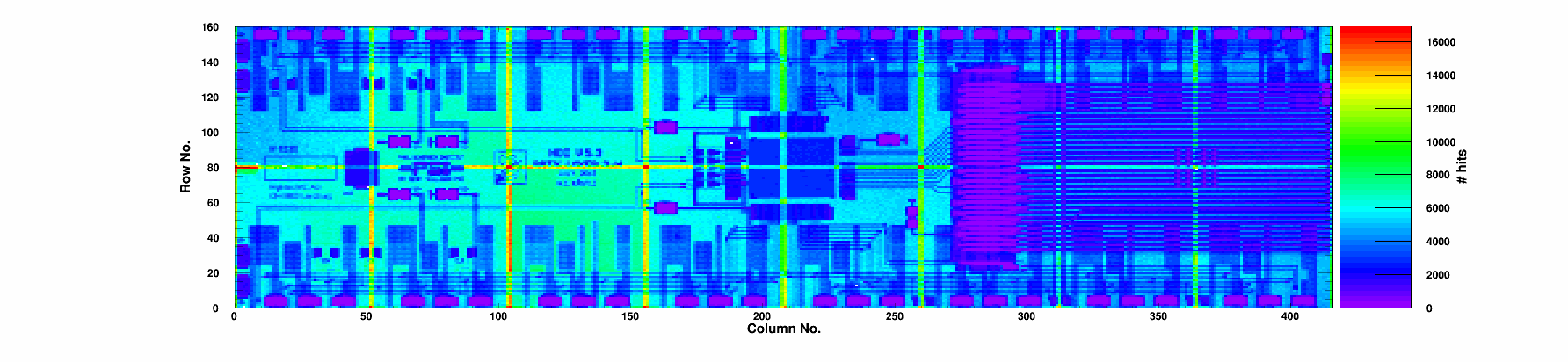

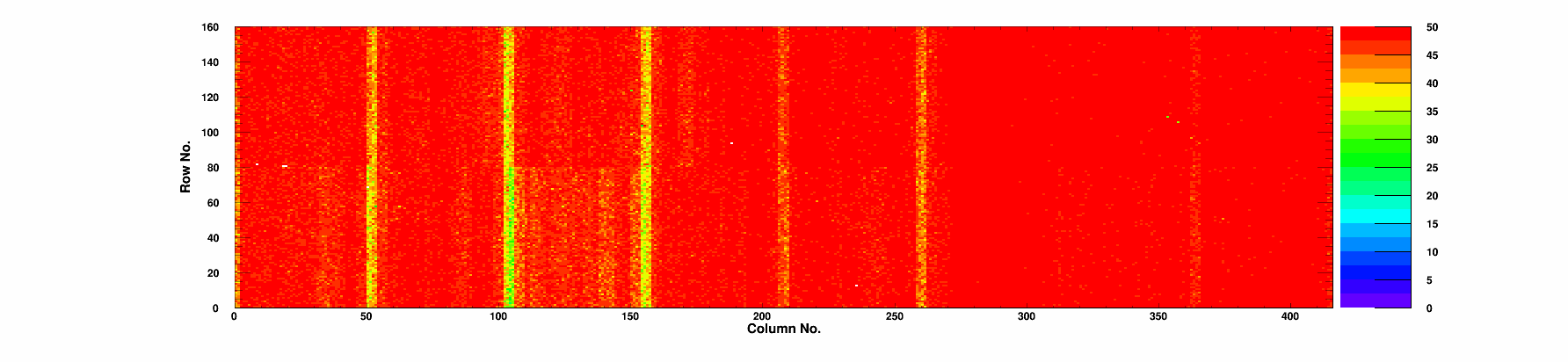

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 167 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.85 | 99.22 | 0.5 | 21.9 | 66.5 | 0 | 0/0 | 0 | 1960 | 157 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.24 | 0.43 | 22.9 | 69.8 | 0 | 0/0 | 0 | 1967 | 172 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.25 | 0.39 | 19.3 | 59.9 | 0 | 0/0 | 0 | 1934 | 162 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.87 | 99.35 | 0.41 | 31.1 | 94.1 | 1 | 0/0 | 0 | 2021 | 161 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.86 | 99.25 | 0.51 | 37.4 | 112.5 | 0 | 0/0 | 0 | 2042 | 172 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.30 | 0.47 | 43.5 | 127.7 | 0 | 0/0 | 0 | 2093 | 164 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.33 | 0.49 | 43.2 | 128.0 | 0 | 0/0 | 0 | 2121 | 169 | 0 |
|
Chip 7
|
A
|
3 | 0 | 99.87 | 99.13 | 0.78 | 36.0 | 108.0 | 0 | 0/0 | 0 | 1919 | 166 | 3 |
|
Chip 8
|
A
|
2 | 0 | 99.85 | 99.26 | 0.52 | 42.8 | 127.9 | 1 | 0/0 | 0 | 2046 | 169 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.29 | 0.44 | 42.9 | 127.0 | 0 | 0/0 | 0 | 2089 | 164 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.30 | 0.56 | 53.4 | 156.9 | 0 | 0/0 | 0 | 2172 | 178 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.27 | 0.57 | 37.2 | 111.7 | 0 | 0/0 | 0 | 2073 | 163 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.88 | 99.31 | 0.69 | 35.3 | 106.4 | 0 | 0/0 | 0 | 1989 | 177 | 1 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.28 | 0.57 | 21.0 | 65.0 | 0 | 0/0 | 0 | 1954 | 161 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.82 | 98.95 | 0.67 | 24.3 | 73.9 | 0 | 0/0 | 0 | 1980 | 166 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.85 | 99.23 | 0.64 | 25.0 | 75.3 | 1 | 0/0 | 0 | 1975 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-22 | |
| TestTime | Test Time | 17:23 | |
| TestDuration | Duration | 1:35:18 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 17 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
