Test Date: 2016-08-23 09:37
Analysis date: 2016-08-23 11:30
Analysis date: 2016-08-23 11:30
M2296 XRayHRQualification
Summary
| Module | Module | M2296 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 15 | |
| BumpBondingDefects | Bump Bonding Defects | 15 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

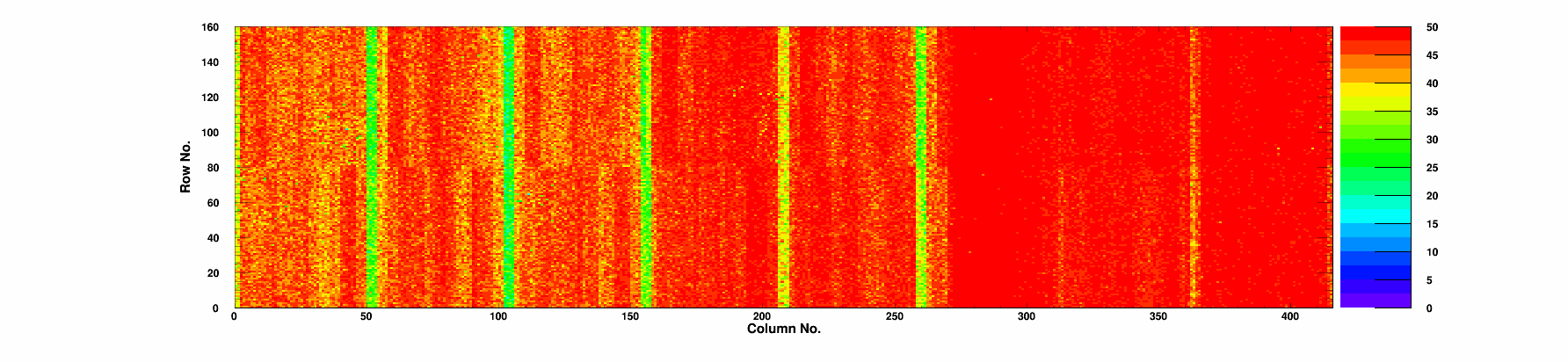

| Efficiency | Efficiency 50/120 | 99.86/99.24 | % |

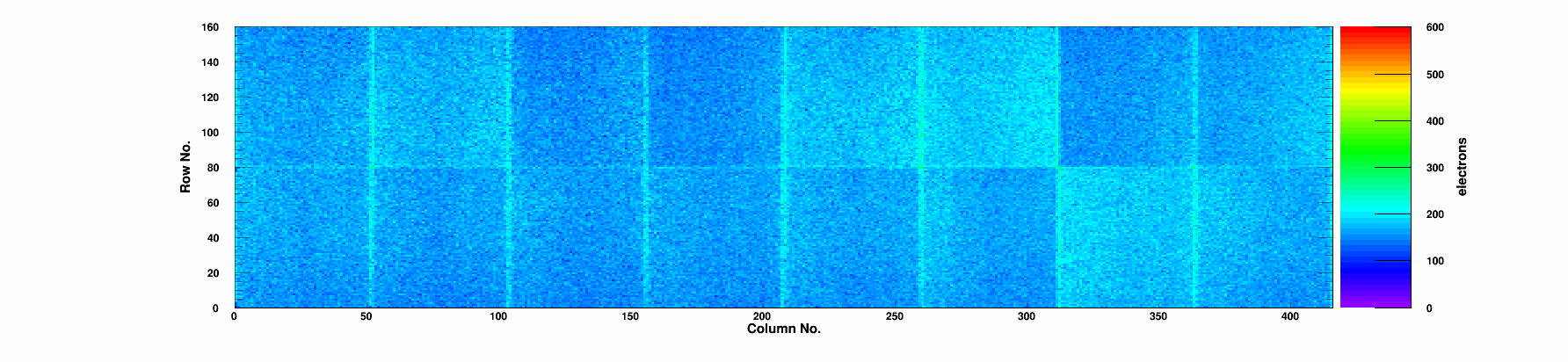

| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.87 | 99.27 | 0.54 | 29.9 | 88.9 | 4 | 0/0 | 0 | 1971 | 169 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 98.98 | 0.74 | 31.9 | 95.1 | 0 | 0/0 | 0 | 1996 | 159 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.86 | 99.27 | 0.73 | 30.9 | 93.3 | 1 | 0/0 | 0 | 1974 | 185 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.33 | 0.44 | 53.7 | 157.5 | 0 | 0/0 | 0 | 2140 | 178 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.33 | 0.85 | 47.7 | 140.4 | 0 | 0/0 | 0 | 2098 | 154 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.31 | 0.56 | 66.7 | 191.3 | 0 | 0/0 | 0 | 2241 | 156 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.31 | 0.7 | 62.8 | 182.9 | 0 | 0/0 | 0 | 2175 | 173 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.86 | 99.30 | 0.49 | 62.3 | 182.3 | 1 | 0/0 | 0 | 2165 | 163 | 0 |
|
Chip 8
|
A
|
7 | 0 | 99.87 | 99.30 | 0.82 | 61.7 | 181.1 | 7 | 0/0 | 0 | 2181 | 163 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.87 | 99.18 | 0.99 | 59.4 | 173.1 | 1 | 0/0 | 0 | 2143 | 160 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.29 | 0.56 | 61.8 | 177.8 | 0 | 0/0 | 0 | 2173 | 159 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.27 | 0.67 | 50.3 | 147.9 | 0 | 0/0 | 0 | 2133 | 161 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.30 | 0.87 | 50.5 | 147.8 | 1 | 0/0 | 0 | 2119 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.22 | 0.6 | 31.8 | 95.8 | 0 | 0/0 | 0 | 2008 | 166 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 98.95 | 0.63 | 36.5 | 108.7 | 0 | 0/0 | 0 | 2018 | 183 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.88 | 99.25 | 0.52 | 32.8 | 97.0 | 0 | 0/0 | 0 | 2008 | 169 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-23 | |
| TestTime | Test Time | 09:37 | |
| TestDuration | Duration | 1:32:30 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 17 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
