Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 17:00
Analysis date: 2016-09-05 17:00
M2306 XRayHRQualification
Summary
| Module | Module | M2306 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

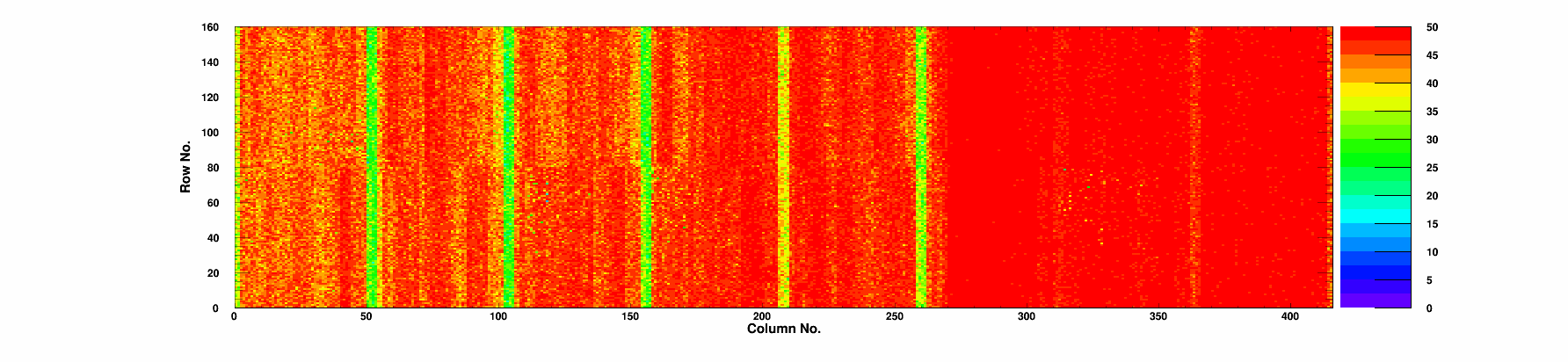

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 160 | e- |
Summary ROCs

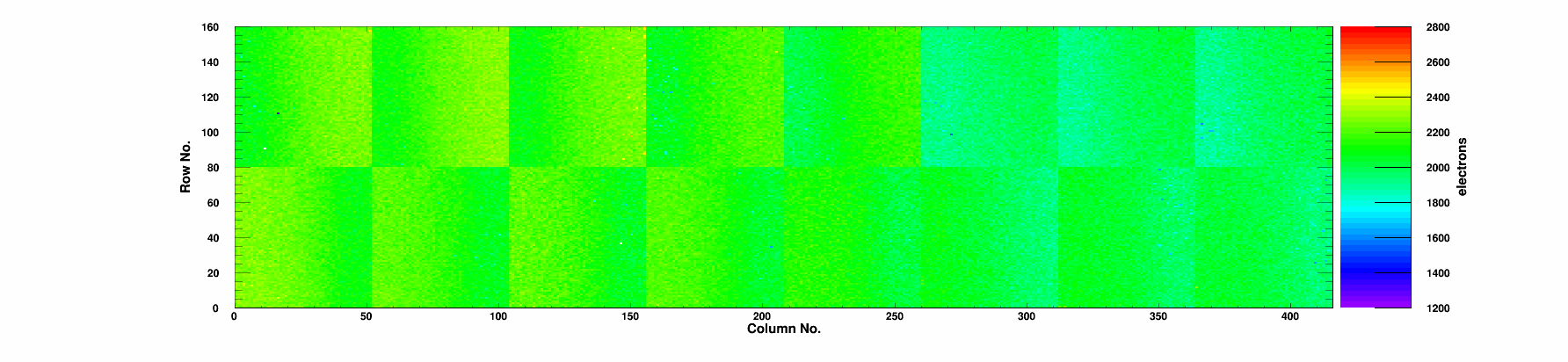

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.87 | 99.29 | 0.42 | 28.9 | 86.9 | 0 | 0/0 | 0 | 1964 | 161 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.84 | 99.14 | 0.64 | 28.9 | 88.0 | 0 | 0/0 | 0 | 1970 | 152 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.09 | 0.48 | 26.9 | 82.7 | 0 | 0/0 | 0 | 1960 | 163 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.83 | 98.99 | 0.86 | 45.7 | 135.0 | 0 | 0/0 | 0 | 2094 | 159 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.30 | 0.42 | 53.0 | 155.8 | 0 | 0/0 | 0 | 2139 | 164 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.33 | 0.55 | 64.0 | 184.3 | 1 | 0/0 | 0 | 2178 | 157 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.85 | 99.31 | 0.57 | 62.0 | 180.6 | 0 | 0/0 | 0 | 2198 | 148 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.86 | 99.31 | 0.64 | 64.8 | 186.7 | 1 | 0/0 | 0 | 2184 | 162 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.32 | 0.76 | 62.5 | 180.7 | 0 | 0/0 | 0 | 2191 | 153 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.30 | 0.49 | 60.2 | 174.8 | 0 | 0/0 | 0 | 2146 | 152 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.85 | 99.29 | 1.89 | 55.5 | 162.4 | 1 | 0/0 | 0 | 2146 | 151 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.29 | 0.64 | 51.2 | 151.0 | 0 | 0/0 | 0 | 2131 | 163 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.30 | 0.67 | 49.5 | 146.1 | 0 | 0/0 | 0 | 2087 | 164 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.87 | 99.31 | 0.63 | 29.8 | 91.6 | 0 | 0/0 | 0 | 2009 | 183 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.22 | 1.06 | 32.8 | 99.2 | 0 | 0/0 | 0 | 2015 | 167 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.88 | 99.28 | 0.51 | 29.1 | 87.3 | 1 | 0/0 | 0 | 1996 | 160 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-05 | |
| TestTime | Test Time | 15:24 | |
| TestDuration | Duration | 1:23:29 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 17 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 5 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
