Test Date: 2016-09-08 10:51
Analysis date: 2016-09-08 13:31
Analysis date: 2016-09-08 13:31
M2312 XRayHRQualification
Summary
| Module | Module | M2312 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 22 | |
| BumpBondingDefects | Bump Bonding Defects | 22 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |

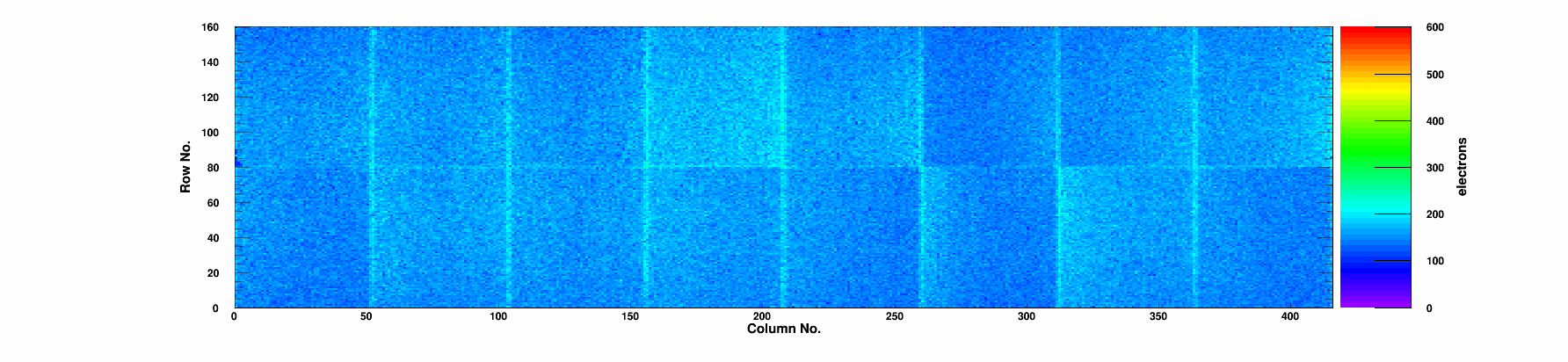

| Noise | Mean Noise | 156 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.85 | 99.06 | 0.67 | 23.3 | 71.1 | 1 | 0/0 | 0 | 1994 | 162 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.28 | 0.43 | 21.2 | 66.5 | 0 | 0/0 | 0 | 1942 | 155 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.20 | 1.17 | 18.4 | 58.6 | 0 | 0/0 | 0 | 1937 | 146 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.29 | 0.58 | 37.8 | 112.2 | 0 | 0/0 | 0 | 2089 | 160 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.31 | 0.4 | 42.9 | 127.3 | 0 | 0/0 | 0 | 2102 | 174 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.86 | 99.32 | 0.58 | 51.3 | 148.6 | 1 | 0/0 | 0 | 2177 | 155 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.28 | 0.45 | 49.3 | 143.9 | 0 | 0/0 | 0 | 2152 | 158 | 0 |
|
Chip 7
|
A
|
19 | 0 | 99.87 | 99.26 | 0.95 | 47.5 | 139.3 | 19 | 0/0 | 0 | 2114 | 154 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.16 | 0.63 | 42.4 | 124.7 | 0 | 0/0 | 0 | 2095 | 149 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.30 | 0.34 | 43.2 | 126.8 | 0 | 0/0 | 0 | 2107 | 161 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.29 | 0.43 | 44.8 | 130.6 | 1 | 0/0 | 0 | 2127 | 157 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.32 | 0.42 | 34.6 | 104.1 | 0 | 0/0 | 0 | 2081 | 160 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.07 | 0.75 | 29.3 | 89.8 | 0 | 0/0 | 0 | 2017 | 150 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.15 | 0.47 | 18.6 | 58.0 | 0 | 0/0 | 0 | 1948 | 150 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 98.99 | 0.4 | 21.2 | 65.8 | 0 | 0/0 | 0 | 1980 | 164 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 98.95 | 0.41 | 18.4 | 57.6 | 0 | 0/0 | 0 | 1943 | 148 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-08 | |
| TestTime | Test Time | 10:51 | |
| TestDuration | Duration | 1:26:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
