Test Date: 2016-09-08 10:51
Analysis date: 2016-09-08 13:35
Analysis date: 2016-09-08 13:35
M2314 XRayHRQualification
Summary
| Module | Module | M2314 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 5 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

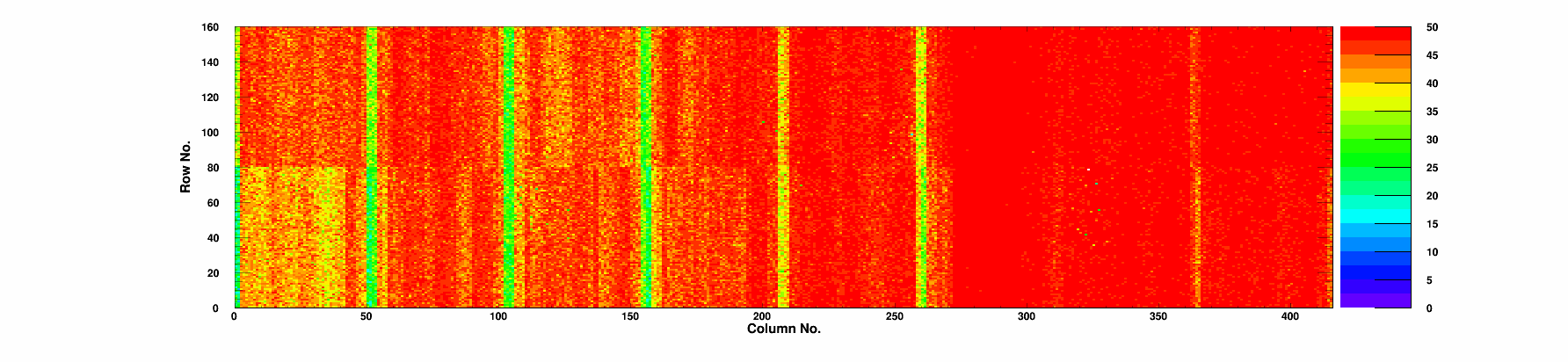

| Efficiency | Efficiency 50/120 | 99.86/99.24 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs

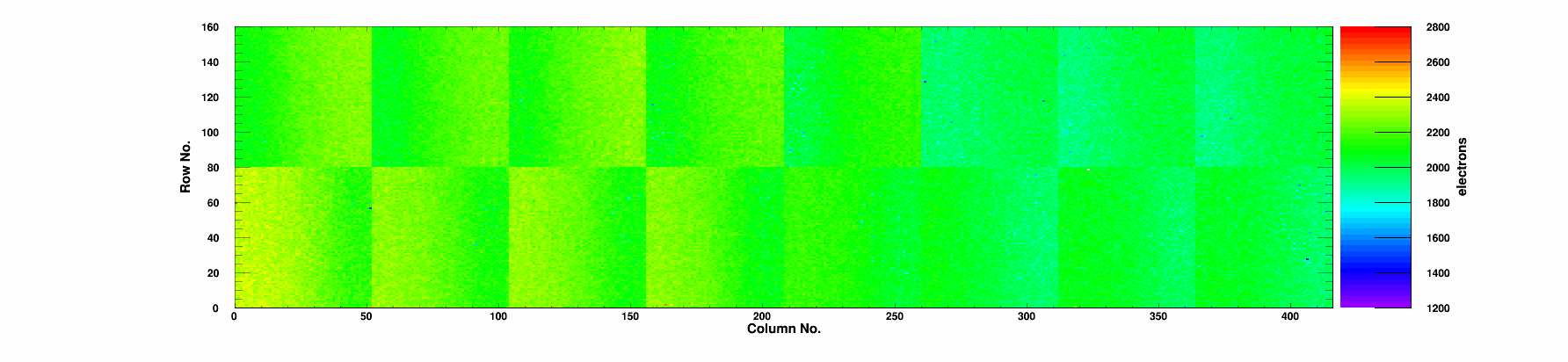

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.86 | 99.27 | 0.7 | 28.2 | 85.6 | 1 | 0/0 | 0 | 1988 | 158 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 99.00 | 0.74 | 28.1 | 86.4 | 0 | 0/0 | 0 | 1990 | 155 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.25 | 0.52 | 26.3 | 81.1 | 0 | 0/0 | 0 | 1985 | 157 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.86 | 99.32 | 0.76 | 43.3 | 129.2 | 1 | 0/0 | 0 | 2095 | 150 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.33 | 0.54 | 53.2 | 156.3 | 0 | 0/0 | 0 | 2162 | 159 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.28 | 0.64 | 64.0 | 185.0 | 0 | 0/0 | 0 | 2198 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.32 | 0.65 | 55.6 | 162.9 | 0 | 0/0 | 0 | 2160 | 154 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.33 | 0.44 | 60.4 | 175.5 | 0 | 0/0 | 0 | 2194 | 158 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.29 | 0.54 | 71.3 | 209.4 | 0 | 0/0 | 0 | 2267 | 174 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.34 | 0.48 | 59.5 | 173.3 | 0 | 0/0 | 0 | 2207 | 162 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.28 | 0.7 | 61.9 | 177.9 | 0 | 0/0 | 0 | 2210 | 154 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.86 | 99.29 | 0.53 | 57.3 | 168.6 | 2 | 0/0 | 0 | 2184 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.31 | 0.63 | 44.2 | 132.2 | 0 | 0/0 | 0 | 2109 | 151 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 99.06 | 0.96 | 29.5 | 90.7 | 0 | 0/0 | 0 | 2019 | 156 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.85 | 99.24 | 1.25 | 32.0 | 96.6 | 0 | 0/0 | 0 | 1990 | 165 | 1 |
|
Chip 15
|
A
|
1 | 0 | 99.83 | 98.96 | 0.62 | 32.6 | 97.3 | 1 | 0/0 | 0 | 2017 | 164 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-08 | |
| TestTime | Test Time | 10:51 | |
| TestDuration | Duration | 1:26:17 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
