Test Date: 2016-09-26 10:58
Analysis date: 2016-09-26 13:32
Analysis date: 2016-09-26 13:32
M2326 XRayHRQualification
Summary
| Module | Module | M2326 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 37 | |
| BumpBondingDefects | Bump Bonding Defects | 32 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

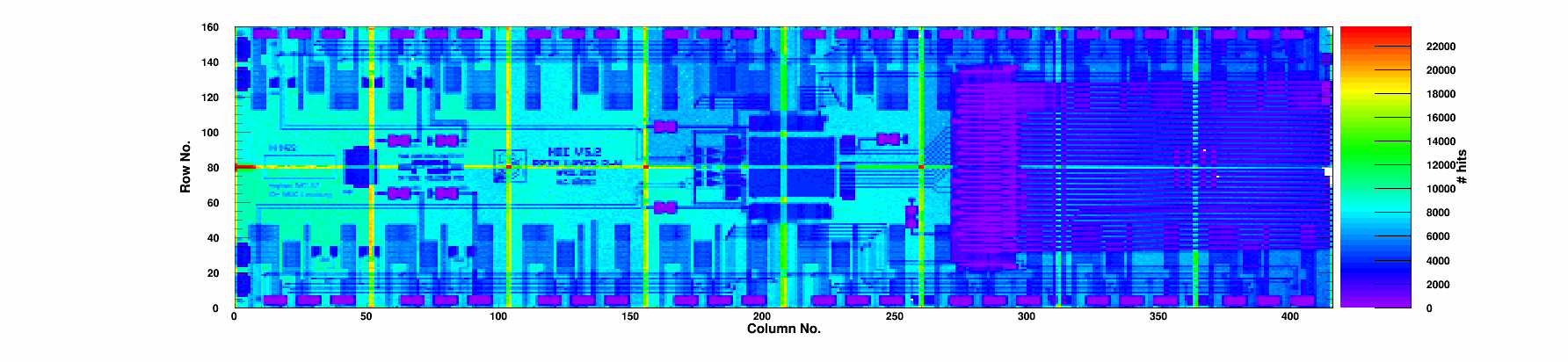

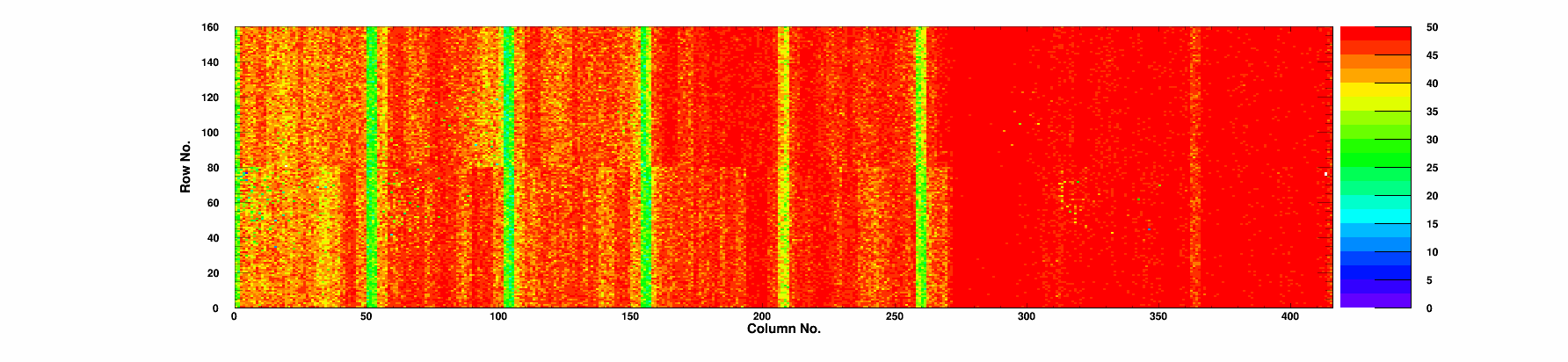

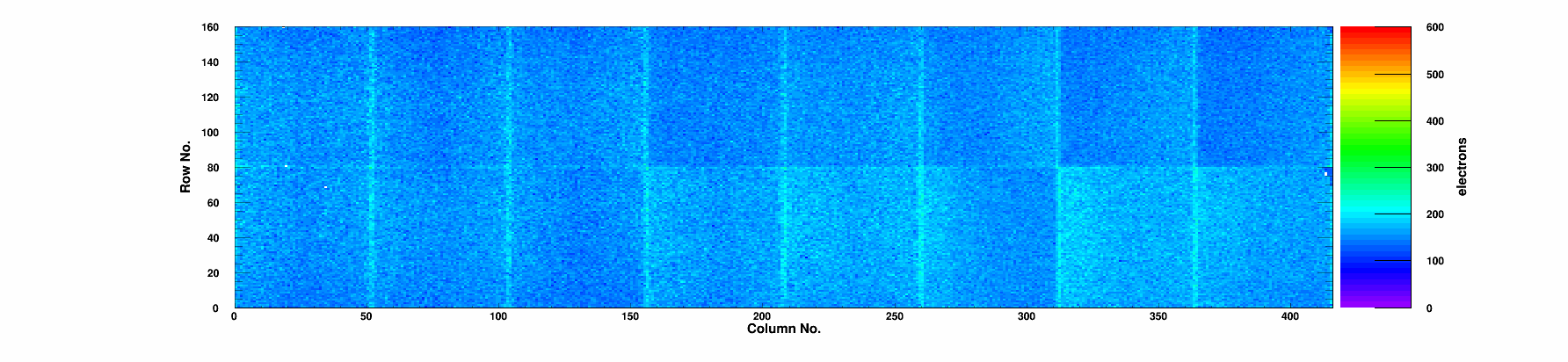

| Efficiency | Efficiency 50/120 | 99.86/99.21 | % |
| Noise | Mean Noise | 157 | e- |
Summary ROCs

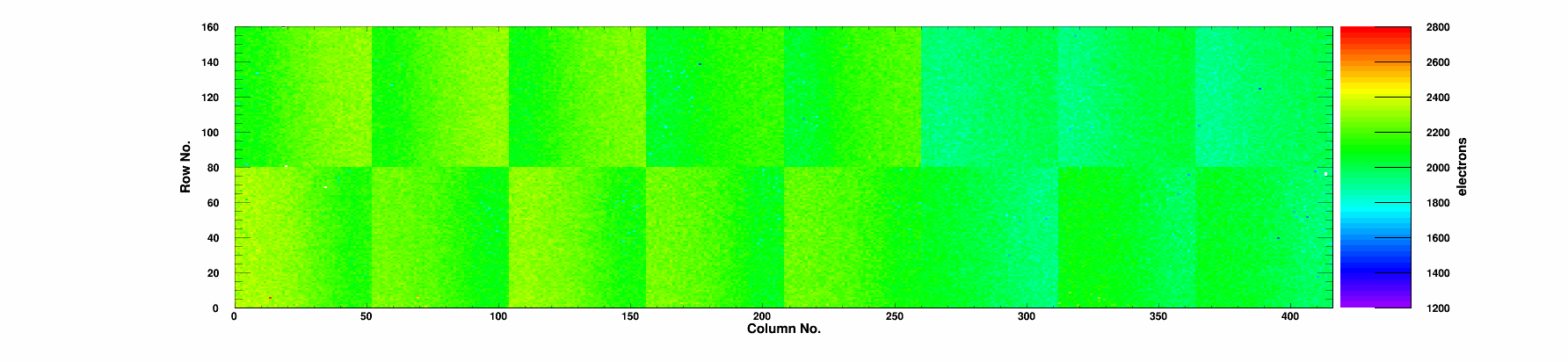

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
7 | 0 | 99.83 | 98.96 | 0.63 | 25.2 | 77.1 | 7 | 0/0 | 0 | 1958 | 147 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 98.94 | 0.7 | 27.7 | 84.7 | 0 | 0/0 | 0 | 1986 | 152 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.22 | 1.14 | 26.7 | 82.0 | 0 | 0/0 | 0 | 1965 | 154 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.88 | 99.27 | 0.56 | 52.0 | 151.7 | 1 | 0/0 | 0 | 2131 | 156 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.29 | 0.46 | 45.4 | 134.9 | 0 | 0/0 | 0 | 2111 | 148 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.28 | 0.6 | 63.8 | 183.1 | 0 | 0/0 | 0 | 2188 | 154 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.85 | 99.28 | 0.94 | 62.6 | 182.2 | 1 | 0/0 | 0 | 2210 | 150 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.88 | 99.29 | 0.7 | 65.4 | 189.7 | 0 | 0/0 | 0 | 2172 | 156 | 1 |
|
Chip 8
|
A
|
1 | 0 | 99.83 | 99.25 | 1.9 | 68.5 | 198.6 | 0 | 0/0 | 0 | 2236 | 156 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.27 | 0.66 | 57.7 | 167.8 | 0 | 0/0 | 0 | 2174 | 156 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.26 | 0.72 | 64.0 | 182.2 | 0 | 0/0 | 0 | 2214 | 151 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.35 | 0.56 | 55.7 | 162.8 | 0 | 0/0 | 0 | 2170 | 162 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.88 | 99.34 | 0.72 | 54.4 | 159.3 | 1 | 0/0 | 0 | 2174 | 169 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 98.98 | 0.82 | 29.0 | 87.6 | 0 | 0/0 | 0 | 1998 | 160 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.84 | 99.20 | 1.87 | 33.1 | 99.2 | 0 | 0/0 | 0 | 2044 | 173 | 0 |
|
Chip 15
|
A
|
24 | 0 | 99.88 | 99.25 | 0.72 | 30.4 | 90.4 | 22 | 0/0 | 0 | 1938 | 164 | 2 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-26 | |
| TestTime | Test Time | 10:58 | |
| TestDuration | Duration | 1:16:48 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 27 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 3 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 3 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
