Test Date: 2016-10-05 12:02
Analysis date: 2016-10-05 13:42
Analysis date: 2016-10-05 13:42
M2351 XRayHRQualification
Summary
| Module | Module | M2351 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

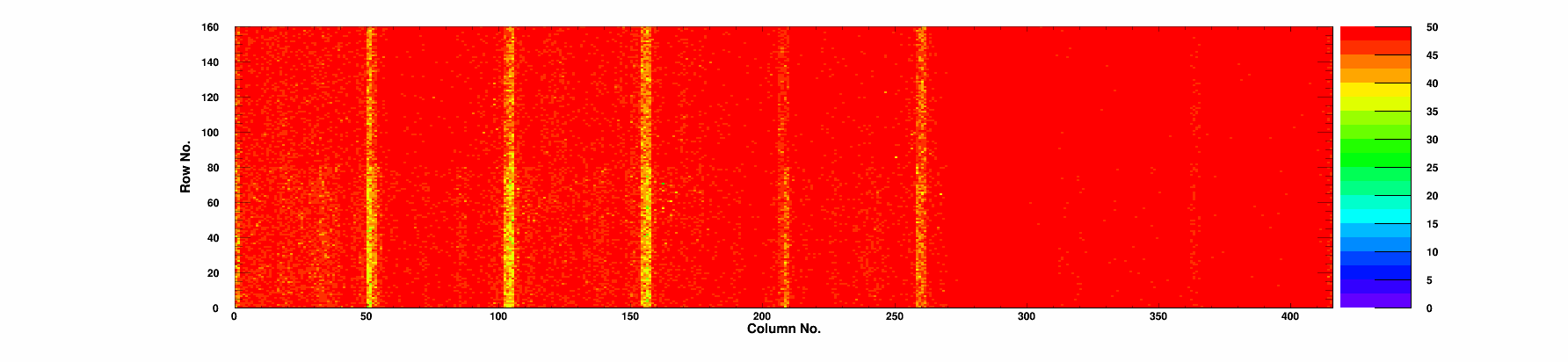

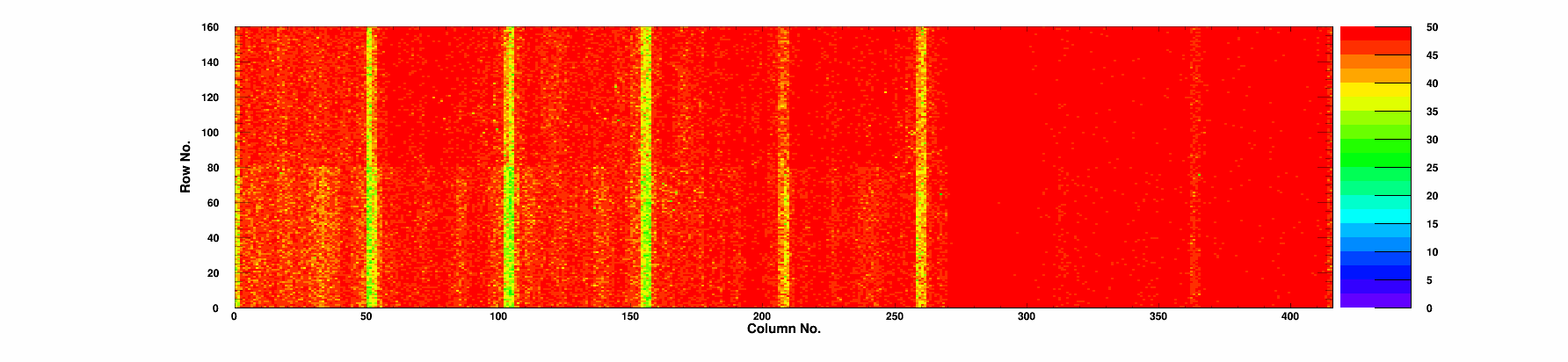

| Efficiency | Efficiency 50/120 | 99.86/99.17 | % |
| Noise | Mean Noise | 168 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.84 | 98.95 | 0.94 | 22.2 | 67.5 | 2 | 0/0 | 0 | 1943 | 179 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 98.98 | 0.58 | 21.7 | 66.7 | 0 | 0/0 | 0 | 1948 | 162 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.21 | 0.41 | 20.6 | 63.3 | 0 | 0/0 | 0 | 1944 | 175 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.27 | 0.56 | 35.5 | 105.0 | 0 | 0/0 | 0 | 2042 | 164 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 99.10 | 0.49 | 37.5 | 111.2 | 0 | 0/0 | 0 | 2054 | 164 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.30 | 0.48 | 49.5 | 143.2 | 0 | 0/0 | 0 | 2110 | 168 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.27 | 0.54 | 38.3 | 114.4 | 0 | 0/0 | 0 | 2054 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.85 | 99.19 | 0.84 | 47.7 | 140.2 | 0 | 0/0 | 0 | 2123 | 170 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.84 | 99.03 | 0.96 | 50.9 | 149.1 | 0 | 0/0 | 0 | 2145 | 173 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.29 | 0.53 | 49.3 | 143.4 | 0 | 0/0 | 0 | 2117 | 164 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.86 | 99.29 | 0.7 | 53.4 | 154.7 | 0 | 0/0 | 0 | 2157 | 162 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.86 | 99.26 | 0.96 | 45.8 | 134.7 | 1 | 0/0 | 0 | 2137 | 171 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.85 | 99.05 | 0.77 | 40.1 | 117.7 | 1 | 0/0 | 0 | 2048 | 165 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.27 | 0.42 | 22.8 | 69.7 | 0 | 0/0 | 0 | 1962 | 166 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.97 | 0.58 | 26.1 | 79.3 | 0 | 0/0 | 0 | 1983 | 170 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.24 | 0.48 | 25.9 | 77.8 | 0 | 0/0 | 0 | 1995 | 178 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-05 | |
| TestTime | Test Time | 12:02 | |
| TestDuration | Duration | 1:16:25 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
