Test Date: 2015-10-26 18:02
Analysis date: 2015-10-26 19:43
Analysis date: 2015-10-26 19:43
M3015 XRayHRQualification
Summary
| Module | Module | M3015 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 27 | |
| BumpBondingDefects | Bump Bonding Defects | 20 | |
| NoisyPixels | Noisy Pixels | 7 | |

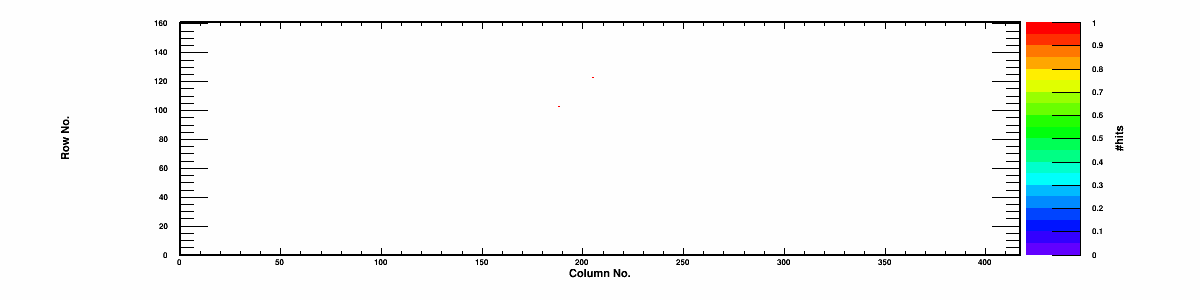

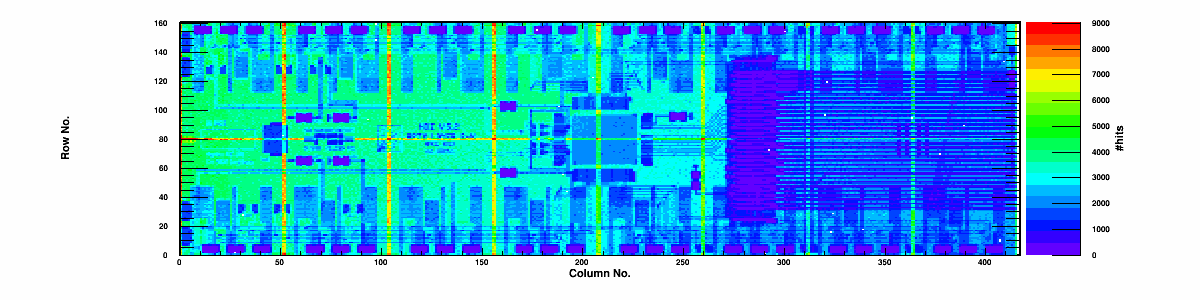

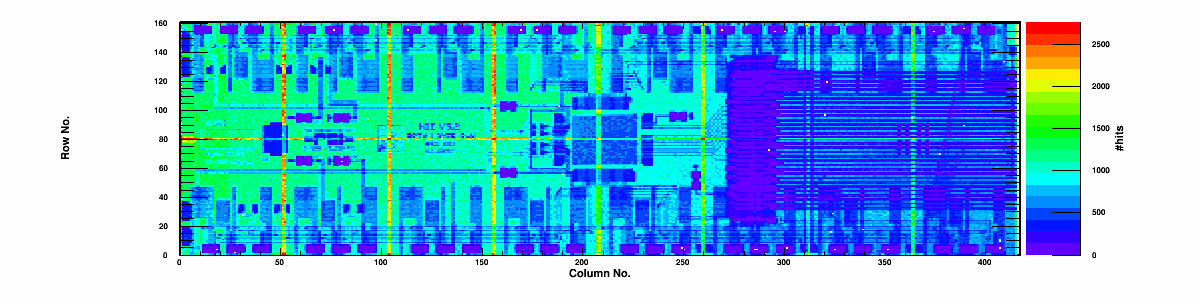

| HotPixelDefects | Hot Pixels | 2 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.15 | % |

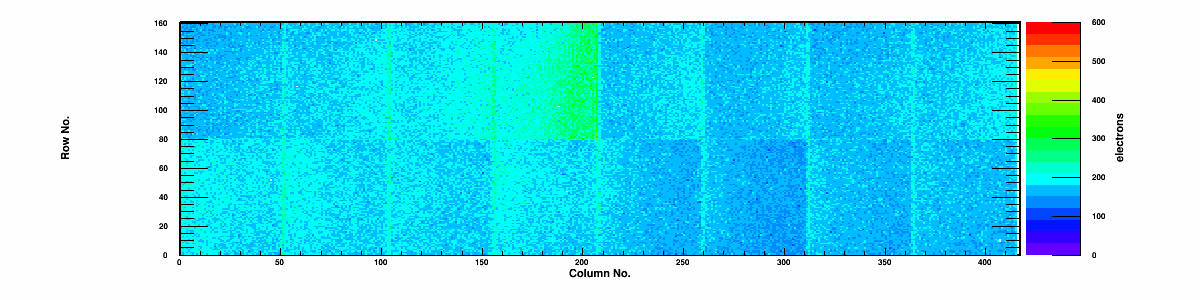

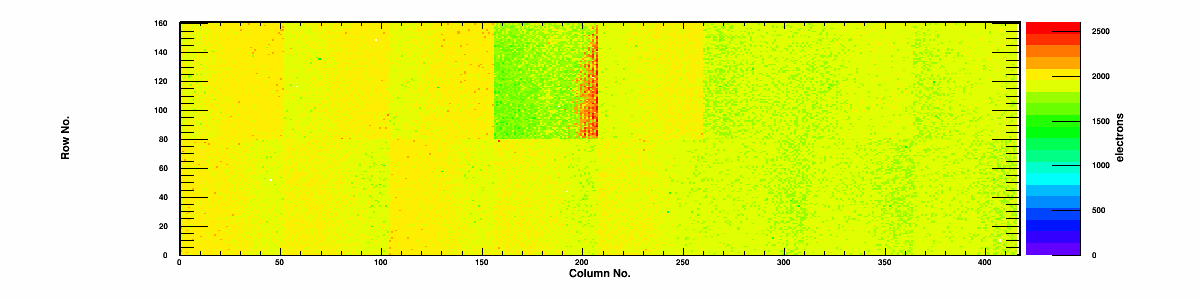

| Noise | Mean Noise | 178 | e- |
Summary ROCs
| ROC | Grade | Defects | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | RO prob | Unif. prob | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 99.84 | 98.91 | 0.28 | 12.3 | 42.3 | 2 | 0/0 | 0 | 1875 | 179 | 0 |
|
Chip 1
|
A
|
3 | 99.88 | 99.25 | 0.21 | 12.6 | 44.0 | 3 | 0/0 | 0 | 1881 | 168 | 0 |
|
Chip 2
|
A
|
1 | 99.86 | 99.37 | 0.34 | 10.9 | 38.8 | 1 | 0/0 | 0 | 1852 | 168 | 0 |
|
Chip 3
|
A
|
0 | 99.84 | 99.01 | 0.55 | 19.2 | 65.0 | 0 | 0/0 | 0 | 1939 | 175 | 0 |
|
Chip 4
|
A
|
3 | 99.71 | 99.01 | 2.61 | 22.6 | 75.5 | 1 | 0/0 | 0 | 1735 | 229 | 2 |
|
Chip 5
|
A
|
0 | 99.87 | 99.30 | 0.39 | 25.0 | 82.5 | 0 | 0/0 | 0 | 1971 | 194 | 0 |
|
Chip 6
|
A
|
4 | 99.87 | 99.30 | 0.95 | 23.1 | 77.7 | 2 | 0/0 | 0 | 1904 | 181 | 2 |
|
Chip 7
|
A
|
1 | 99.87 | 99.33 | 0.50 | 25.4 | 84.5 | 1 | 0/0 | 0 | 1981 | 167 | 0 |
|
Chip 8
|
A
|
2 | 99.86 | 99.31 | 0.96 | 25.1 | 82.8 | 2 | 0/0 | 0 | 1968 | 188 | 0 |
|
Chip 9
|
A
|
0 | 99.84 | 99.05 | 0.64 | 22.1 | 74.0 | 0 | 0/0 | 0 | 1938 | 184 | 0 |
|
Chip 10
|
A
|
1 | 99.87 | 99.32 | 0.51 | 23.2 | 77.0 | 1 | 0/0 | 0 | 1970 | 180 | 0 |
|
Chip 11
|
A
|
2 | 99.85 | 99.01 | 0.57 | 19.3 | 65.2 | 1 | 0/0 | 0 | 1891 | 186 | 1 |
|
Chip 12
|
A
|
0 | 99.86 | 99.13 | 0.30 | 17.3 | 58.8 | 0 | 0/0 | 0 | 1920 | 166 | 0 |
|
Chip 13
|
A
|
2 | 99.85 | 99.21 | 0.81 | 9.8 | 35.0 | 2 | 0/0 | 0 | 1862 | 156 | 0 |
|
Chip 14
|
A
|
3 | 99.88 | 98.87 | 0.19 | 11.2 | 39.3 | 3 | 0/0 | 0 | 1864 | 165 | 0 |
|
Chip 15
|
A
|
3 | 99.85 | 99.05 | 0.29 | 10.7 | 37.1 | 1 | 0/0 | 0 | 1791 | 167 | 2 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 0 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
