Test Date: 2015-09-30 19:38
Analysis date: 2015-10-26 19:47
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
53.083125 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
53.083125 |
|
| medianSlope |
median Slope |
52.9015 |
|
| minSlope |
min Slope |
46.206 |
|
| maxSlope |
max Slope |
58.264 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
67.22475 |
|
| medianOffset |
median Offset |
84.2535 |
|
| minOffset |
min Offset |
-222.275 |
|
| maxOffset |
max Offset |
236.382 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
17.82825 |
|
| medianchi2 |
median chi2 |
20.6205 |
|
| minchi2 |
min chi2 |
0.483 |
|
| maxchi2 |
max chi2 |
43.714 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
53.0 e- / Vcal
|
0.6 e- / Vcal
|
57.2 e-
|
62.4 e-
|
|
1
|
47.9 e- / Vcal
|
0.1 e- / Vcal
|
236.4 e-
|
8.7 e-
|
|
2
|
46.2 e- / Vcal
|
0.1 e- / Vcal
|
232.3 e-
|
14.8 e-
|
|
3
|
52.5 e- / Vcal
|
0.1 e- / Vcal
|
147.3 e-
|
10.2 e-
|
|
4
|
55.5 e- / Vcal
|
0.4 e- / Vcal
|
67.0 e-
|
43.7 e-
|
|
5
|
50.2 e- / Vcal
|
0.1 e- / Vcal
|
128.0 e-
|
8.8 e-
|
|
6
|
56.1 e- / Vcal
|
0.5 e- / Vcal
|
-173.0 e-
|
46.5 e-
|
|
7
|
58.3 e- / Vcal
|
0.5 e- / Vcal
|
-222.3 e-
|
50.0 e-
|
|
8
|
58.2 e- / Vcal
|
0.5 e- / Vcal
|
-93.2 e-
|
54.1 e-
|
|
9
|
55.8 e- / Vcal
|
0.2 e- / Vcal
|
-81.6 e-
|
9.8 e-
|
|
10
|
51.8 e- / Vcal
|
0.1 e- / Vcal
|
64.7 e-
|
10.7 e-
|
|
11
|
54.7 e- / Vcal
|
0.4 e- / Vcal
|
137.2 e-
|
39.4 e-
|
|
12
|
55.3 e- / Vcal
|
0.2 e- / Vcal
|
57.8 e-
|
12.7 e-
|
|
13
|
52.8 e- / Vcal
|
0.5 e- / Vcal
|
212.0 e-
|
50.6 e-
|
|
14
|
50.1 e- / Vcal
|
0.1 e- / Vcal
|
101.5 e-
|
12.1 e-
|
|
15
|
51.0 e- / Vcal
|
0.2 e- / Vcal
|
204.3 e-
|
13.6 e-
|
|
Average
|
53.1 e- / Vcal
|
|
67.2 e-
|
|
|
Median
|
53.0 e- / Vcal
|
|
101.5 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

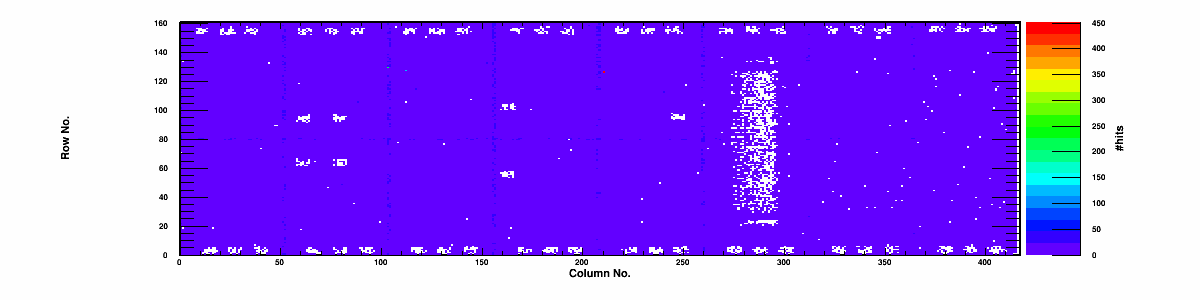

Hits distribution Zn inner/edge/corner

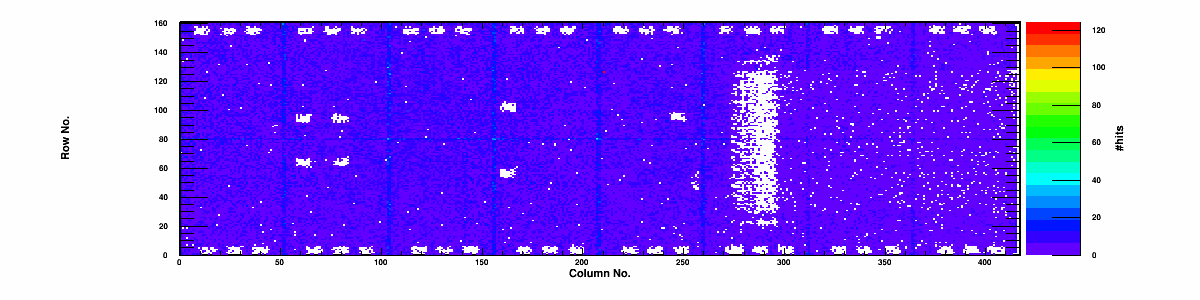

Hits distribution Mo inner/edge/corner

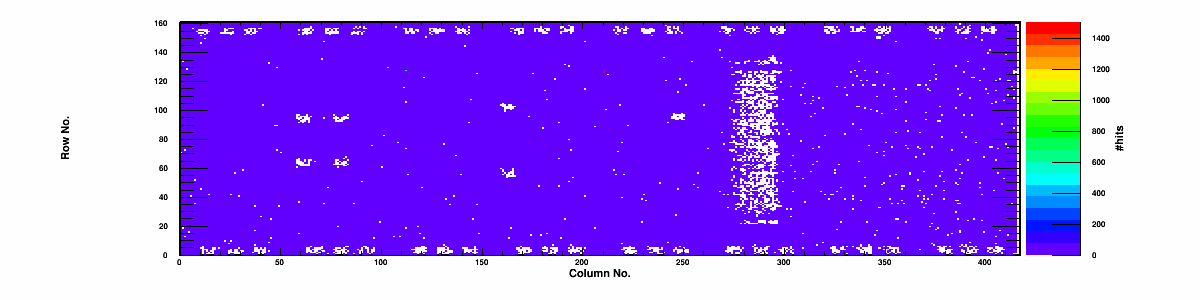

Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
