Test Date: 2015-10-26 18:02
Analysis date: 2015-10-26 19:50
M3017 XRayHRQualification
Chips

Overview

Summary
Module Module M3017
Grade Grade A
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 16/0/0
PixelDefects Total Pixel Defects 46
BumpBondingDefects Bump Bonding Defects 30
NoisyPixels Noisy Pixels 16
HotPixelDefects Hot Pixels 0
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.82/99.15 %
Noise Mean Noise 171 e-
Summary ROCs
ROC Grade Defects Eff 50 Eff 120 Eff chi2 Rate "50" Rate "150" BB def RO prob Unif. prob Thr [e-] "100" Noise "100" Noisy pix
Chip 0
A
 5 99.87 99.34 0.78 16.2 55.1 4 0/0 0 1851 169 1
Chip 1
A
 6 99.83 98.99 0.62 16.9 59.2 2 0/0 0 1761 176 4
Chip 2
A
 3 99.30 98.88 1383.40 15.7 55.2 2 0/0 0 1819 182 1
Chip 3
A
 2 99.84 99.04 0.73 26.4 88.6 2 0/0 0 1978 170 0
Chip 4
A
 0 99.88 99.35 0.51 26.8 90.8 0 0/0 0 2012 166 0
Chip 5
A
 3 99.87 99.35 0.45 35.5 116.2 2 0/0 0 2036 189 1
Chip 6
A
 0 99.89 99.28 0.63 31.7 105.5 0 0/0 0 2041 169 0
Chip 7
A
 1 99.87 99.30 0.65 37.7 122.9 1 0/0 0 2039 168 0
Chip 8
A
 3 99.84 99.08 0.58 35.8 116.6 2 0/0 0 1999 166 1
Chip 9
A
 3 99.84 99.07 0.53 33.3 109.6 3 0/0 0 2034 171 0
Chip 10
A
 2 99.88 99.36 0.50 34.2 112.0 2 0/0 0 2019 179 0
Chip 11
A
 5 99.89 99.31 0.42 27.0 91.0 5 0/0 0 1975 168 0
Chip 12
A
 3 99.84 99.04 1.09 25.2 85.1 1 0/0 0 1883 162 2
Chip 13
A
 5 99.85 99.06 0.32 15.0 53.1 1 0/0 0 1739 163 4
Chip 14
A
 2 99.83 98.98 0.55 16.7 57.9 2 0/0 0 1936 168 0
Chip 15
A
 3 99.85 99.03 0.58 16.5 55.8 1 0/0 0 1815 171 2
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 50
BB defects 150
Noise 100

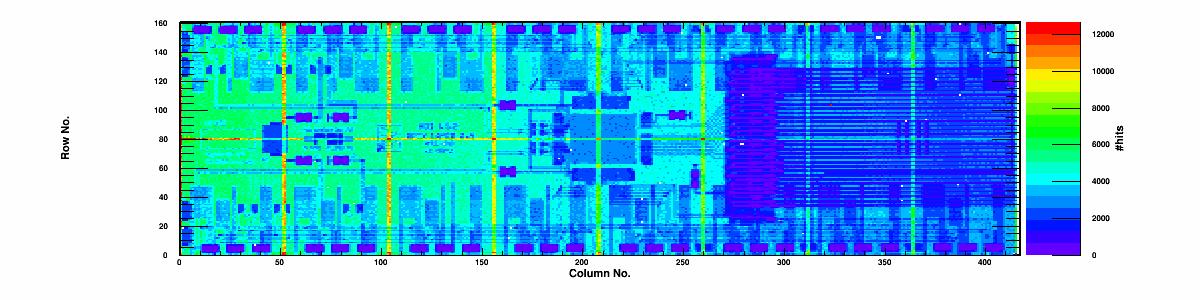

Hit Map 50
Hits distribution 50 inner/edge/corner

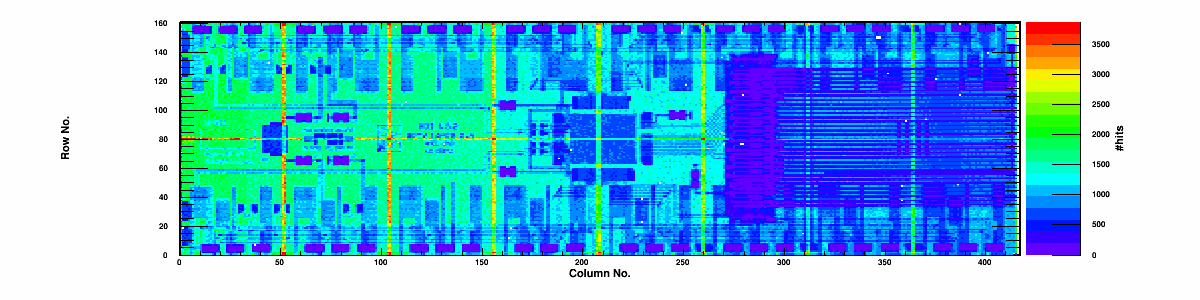

Hit Map 150
Hits distribution 150 inner/edge/corner
Bump Bonding Defects 50
BB defects 50
Bump Bonding Defects 150
BB defects 150
Masked Hot Pixels 50
Hot pixels 50
Masked Hot Pixels 150
Hot pixels 150

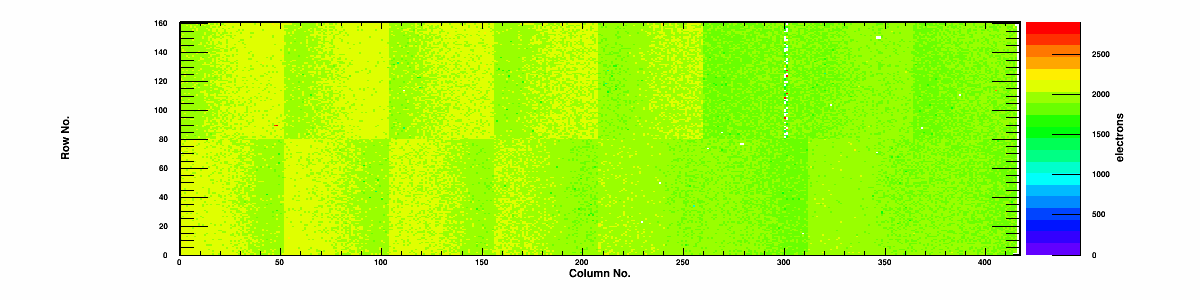

Threshold 100
Threshold distribution 100
Noise 100
Noise distribution 100
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 75
Efficiency distribution 75
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
HR Efficiency Map 250
Efficiency distribution 250
Retrimmed Hot Pixels 150
Retri Hot Pix 150
Retrimmed Hot Pixels 0
Retri Hot Pix 0
Errors
nCriticals # Criticals 0
nErrors # Errors 0
nWarnings # Warnings 0
channel_0_count Channel 0 0
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_tokenchain_count Token Chain Length 0
message_eventid_count Event ID mismatch 0
message_readback_count Readback start marker 0
message_notokenpass_count has NoTokenPass 0
message_datasize_count Data size criticals 0
message_missingevents_count Missing Event criticals 0
message_usbtimeout_count USB criticals 0
message_deser400_count DESER400 failure 0
message_daqerror_count DAQ error 0
