Test Date: 2016-10-19 16:02
Analysis date: 2016-10-24 19:55
M1001 XRayHRQualification
Comment Comment comments.txt: r/o errors, untypical cluster of various pixel defects dead/inefficient/noisy... on C1,3,10,11
Chips

Overview

Summary
Module Module M1001
Grade Grade C
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 3/1/12
PixelDefects Total Pixel Defects 249
BumpBondingDefects Bump Bonding Defects 143
NoisyPixels Noisy Pixels 0
HotPixelDefects Hot Pixels 80
ROCsWithReadoutProblems ROCs with r/o problems 12
ROCsWithUniformityProblems ROCs with unif problems 11
Efficiency Efficiency 150/300 99.80/99.26 %
Noise Mean Noise 362 e-
Summary ROCs
ROC Grade Def DC Eff 150 Eff 300 Eff chi2 Rate "100" Rate "300" BB def R/O Unif. Thr [e-] "250" Noise "250" Noisy pix
Chip 0
C
 0 0 99.81 99.52 0.28 72.9 217.4 0 0/74 0+0/2890 -16 404 2031
Chip 1
C
 136 0 99.83 99.66 0.45 70.3 206.3 135 0/69 2+0/2760 -155 391 1660
Chip 2
C
 1 0 99.83 99.66 0.19 60.4 186.0 1 0/9 0 434 374 1135
Chip 3
C
 26 0 99.75 99.52 0.16 19.1 67.8 0 0/4 6 816 317 703
Chip 4
C
 1 0 99.84 99.12 0.23 23.4 67.5 1 0/45 0+0/522 -76 246 114
Chip 5
C
 0 0 99.81 99.68 0.28 49.2 144.1 0 0/46 0+0/1745 -161 356 540
Chip 6
A
 0 0 99.84 99.47 0.18 40.6 125.9 0 0/0 0 -2449 357 704
Chip 7
A
 0 0 99.77 97.46 0.11 34.9 107.9 0 0/0 0 -283 323 149
Chip 8
C
 0 0 99.81 99.77 0.21 44.6 134.6 0 0/27 0+0/802 -776 402 2039
Chip 9
C
 0 0 99.83 99.34 0.21 41.0 122.9 0 0/28 0+0/771 -741 342 370
Chip 10
B
 42 0 99.68 97.43 3.44 52.0 161.3 0 0/0 0 -2282 388 1611
Chip 11
A
 38 0 99.72 99.28 0.43 37.5 113.8 1 0/0 0 -2651 351 626
Chip 12
C
 1 0 99.84 99.48 0.23 42.0 126.9 1 0/9 0+0/14 -766 365 945
Chip 13
C
 2 0 99.81 99.62 0.29 62.2 189.9 2 0/12 0+0/32 -1193 393 1709
Chip 14
C
 2 0 99.82 99.56 0.29 69.9 209.5 2 0/29 0+0/963 48 394 1748
Chip 15
C
 0 0 99.82 99.61 0.23 68.2 206.4 0 0/31 0+0/959 380 391 1622
Efficiency at 150 MHz/cm2
Efficiency at 300 MHz/cm2
BB defects 100
BB defects 300
Noise 250

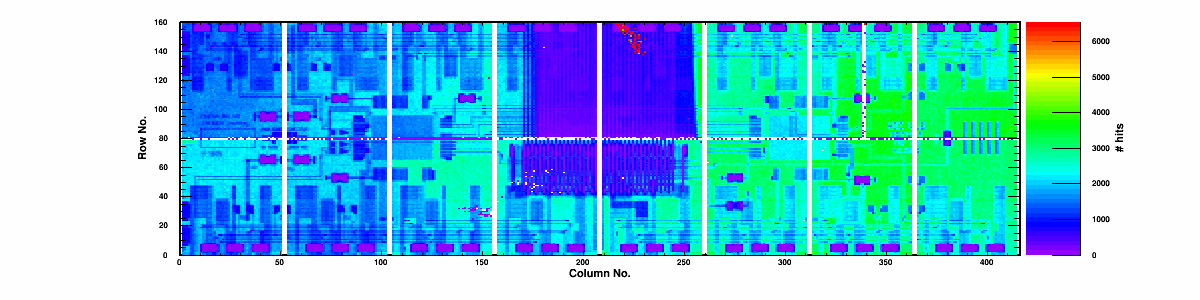

Hit Map 100
Hits distribution 100 inner/edge/corner
Hit Map 300
Hits distribution 300 inner/edge/corner
Bump Bonding Defects 100
BB defects 100
Bump Bonding Defects 300
BB defects 300

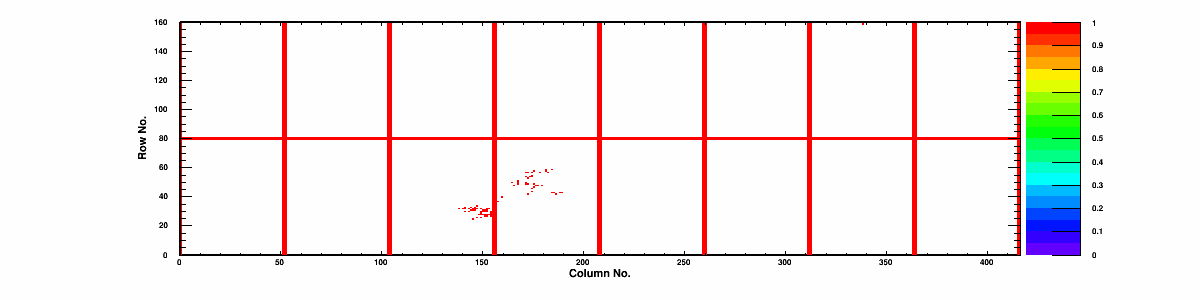

Masked Hot Pixels 100
Hot pixels 100
Masked Hot Pixels 300
Hot pixels 300

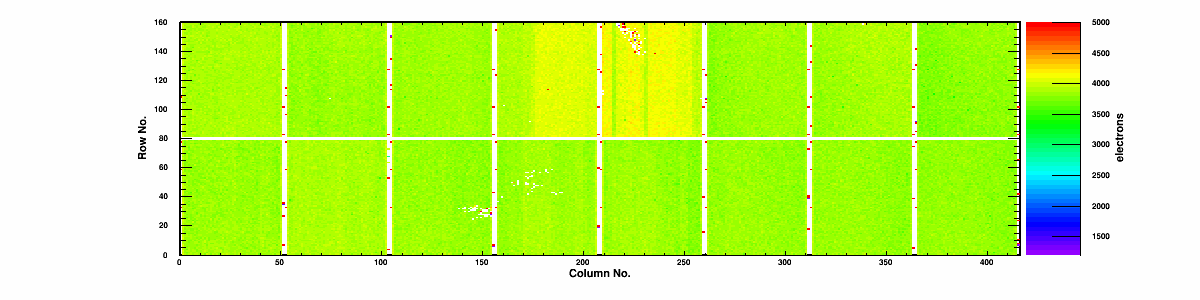

Threshold 250
Threshold distribution 250

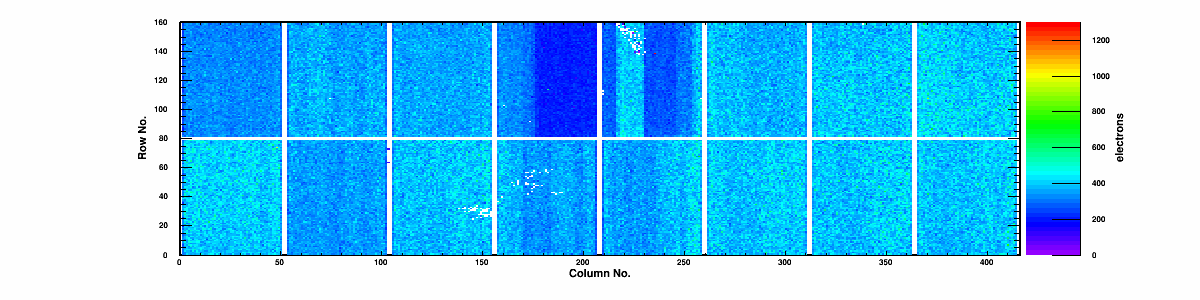

Noise 250
Noise distribution 250
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
HR Efficiency Map 200
Efficiency distribution 200
HR Efficiency Map 250
Efficiency distribution 250
HR Efficiency Map 300
Efficiency distribution 300
Retrimmed Hot Pixels 50
Retri Hot Pix 50
Retrimmed Hot Pixels 150
Retri Hot Pix 150
Setup
TestCenter Test Center ETHZ
TestDate Test Date 2016-10-19
TestTime Test Time 16:02
TestDuration Duration 2:11:22
pXar pXar version v2.7.6+59~gd48421b
DTB_FW DTB FW 4.7
Errors
nCriticals # Criticals 0
nErrors # Errors 718
nWarnings # Warnings 100
channel_0_count Channel 0 27
channel_1_count Channel 1 0
channel_2_count Channel 2 25
channel_3_count Channel 3 0
message_eventid_count Event ID mismatch 54
message_readback_count Readback start marker 100
Logfile

Overview

MoReWeb-v1.0.5-11-g3f3decf on branch master
