Test Date: 2016-10-25 12:40
Analysis date: 2016-11-03 15:54
Analysis date: 2016-11-03 15:54
M1025 XRayHRQualification
| Comment | Comment | comment.txt: Cluster of noisy pixels on C9 |
Summary
| Module | Module | M1025 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | C | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 9 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

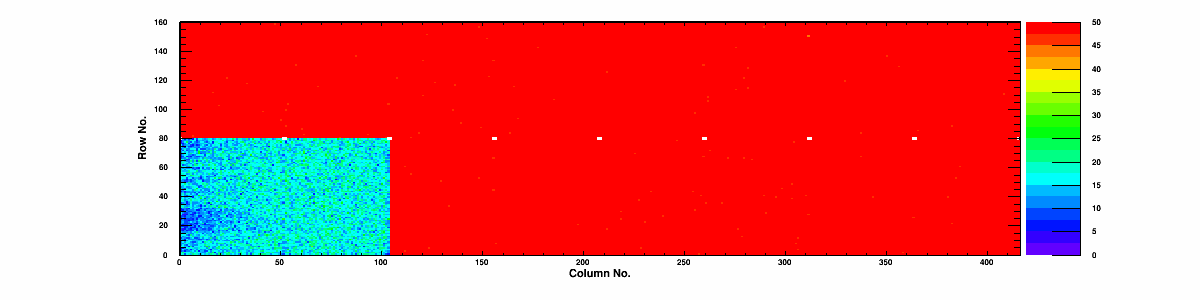

| Efficiency | Efficiency 150/300 | 99.80/99.49 | % |

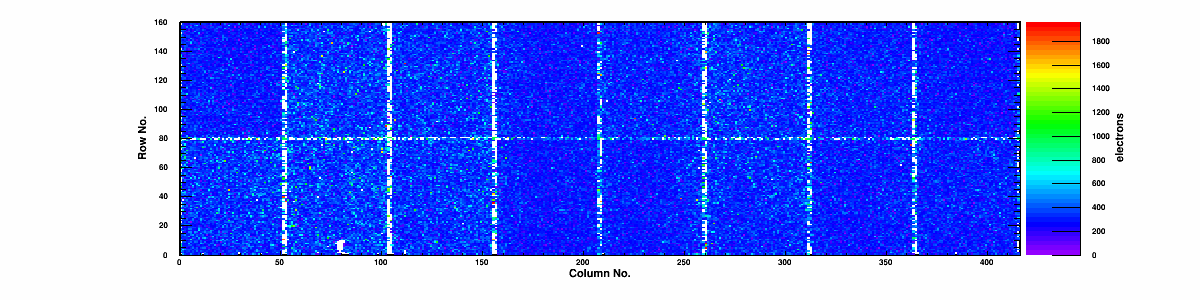

| Noise | Mean Noise | 320 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "100" | Rate "300" | BB def | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
3 | 0 | 99.82 | 99.55 | 0.19 | 60.4 | 181.1 | 3 | 0/0 | 0 | 3883 | 288 | 298 |
|
Chip 1
|
A
|
0 | 0 | 99.81 | 99.56 | 0.29 | 63.3 | 189.8 | 0 | 0/0 | 0 | 3744 | 309 | 514 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.54 | 0.35 | 76.2 | 232.6 | 0 | 0/0 | 0 | 3777 | 339 | 966 |
|
Chip 3
|
A
|
0 | 0 | 99.82 | 99.61 | 0.23 | 56.8 | 170.8 | 0 | 0/0 | 0 | 3842 | 319 | 649 |
|
Chip 4
|
A
|
1 | 0 | 99.83 | 99.55 | 0.17 | 55.3 | 163.7 | 1 | 0/0 | 0 | 3855 | 298 | 427 |
|
Chip 5
|
A
|
0 | 0 | 99.82 | 99.53 | 0.37 | 82.0 | 253.4 | 0 | 0/0 | 0 | 3744 | 336 | 856 |
|
Chip 6
|
A
|
0 | 0 | 99.81 | 99.53 | 0.28 | 83.1 | 249.9 | 0 | 0/0 | 0 | 3780 | 352 | 1105 |
|
Chip 7
|
A
|
1 | 0 | 99.82 | 99.55 | 0.27 | 66.8 | 198.5 | 1 | 0/0 | 0 | 3878 | 297 | 432 |
|
Chip 8
|
A
|
0 | 0 | 99.78 | 99.47 | 0.36 | 89.9 | 272.1 | 0 | 0/0 | 0 | 3795 | 346 | 1030 |
|
Chip 9
|
A
|
2 | 0 | 99.76 | 99.18 | 2.63 | 87.6 | 266.0 | 2 | 0/0 | 0 | 3716 | 360 | 1241 |
|
Chip 10
|
A
|
0 | 0 | 99.81 | 99.54 | 0.37 | 76.6 | 234.6 | 0 | 0/0 | 0 | 3793 | 342 | 978 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.63 | 0.24 | 51.4 | 152.4 | 0 | 0/0 | 0 | 3852 | 291 | 344 |
|
Chip 12
|
A
|
1 | 0 | 99.73 | 99.28 | 0.98 | 52.4 | 155.2 | 1 | 0/0 | 0 | 3844 | 302 | 431 |
|
Chip 13
|
A
|
1 | 0 | 99.82 | 99.37 | 0.61 | 71.1 | 215.4 | 1 | 0/0 | 0 | 3803 | 329 | 753 |
|
Chip 14
|
A
|
0 | 0 | 99.78 | 99.37 | 0.3 | 53.6 | 164.4 | 0 | 0/0 | 0 | 3858 | 300 | 417 |
|
Chip 15
|
A
|
0 | 0 | 99.81 | 99.61 | 0.26 | 59.2 | 177.4 | 0 | 0/0 | 0 | 3880 | 305 | 458 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-25 | |
| TestTime | Test Time | 12:40 | |
| TestDuration | Duration | 0:59:48 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 52824 | |
| nWarnings | # Warnings | 137729 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 56533 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 48697 | |
| message_tokenchain_count | Token Chain Length | 2497 | |
| message_readback_count | Readback start marker | 6542 |
MoReWeb-v1.0.5-18-g6921b8e on branch L1Xray
