Test Date: 2016-11-07 15:15
Analysis date: 2016-11-07 16:22
Analysis date: 2016-11-07 16:22
M1124 XRayHRQualification
Summary
| Module | Module | M1124 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 0 | |
| BumpBondingDefects | Bump Bonding Defects | 0 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.82/99.56 | % |

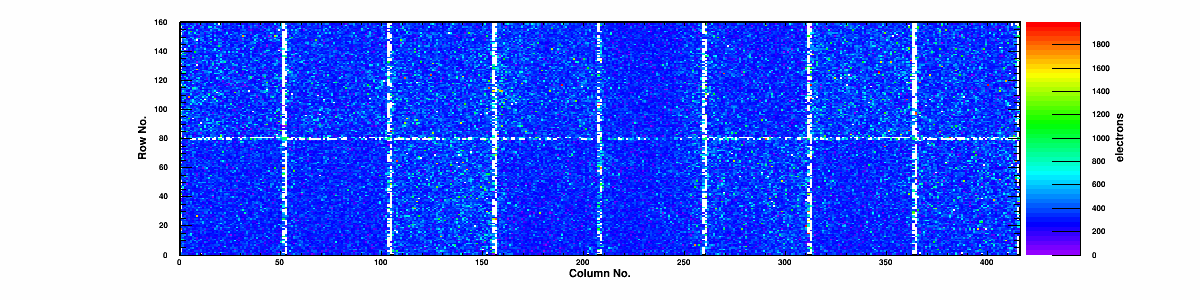

| Noise | Mean Noise | 343 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 99.56 | 0.48 | 277.8 | 0 | 91.0 | 0/0 | 0 | 3753 | 351 | 1159 |
|
Chip 1
|
A
|
0 | 0 | 99.78 | 99.48 | 0.43 | 278.2 | 0 | 91.5 | 0/0 | 0 | 3773 | 372 | 1410 |
|
Chip 2
|
A
|
0 | 0 | 99.81 | 99.58 | 0.4 | 235.9 | 0 | 78.4 | 0/0 | 0 | 3770 | 330 | 854 |
|
Chip 3
|
A
|
0 | 0 | 99.83 | 99.63 | 0.25 | 162.0 | 0 | 53.5 | 0/0 | 0 | 3607 | 320 | 680 |
|
Chip 4
|
A
|
0 | 0 | 99.81 | 99.60 | 0.25 | 169.3 | 0 | 55.4 | 0/0 | 0 | 3410 | 358 | 1211 |
|
Chip 5
|
A
|
0 | 0 | 99.83 | 99.60 | 0.27 | 202.1 | 0 | 65.9 | 0/0 | 0 | 3753 | 360 | 1206 |
|
Chip 6
|
A
|
0 | 0 | 99.83 | 99.57 | 0.32 | 181.4 | 0 | 58.2 | 0/0 | 0 | 3769 | 344 | 1021 |
|
Chip 7
|
A
|
0 | 0 | 99.83 | 99.56 | 0.23 | 199.6 | 0 | 63.3 | 0/0 | 0 | 3769 | 354 | 1194 |
|
Chip 8
|
A
|
0 | 0 | 99.80 | 99.36 | 0.26 | 153.9 | 0 | 50.5 | 0/0 | 0 | 3827 | 326 | 711 |
|
Chip 9
|
A
|
0 | 0 | 99.84 | 99.57 | 0.26 | 166.7 | 0 | 54.4 | 0/0 | 0 | 3799 | 320 | 653 |
|
Chip 10
|
A
|
0 | 0 | 99.82 | 99.57 | 0.18 | 192.4 | 0 | 63.5 | 0/0 | 0 | 3728 | 371 | 1373 |
|
Chip 11
|
A
|
0 | 0 | 99.81 | 99.56 | 0.22 | 148.4 | 0 | 49.1 | 0/0 | 0 | 3823 | 318 | 681 |
|
Chip 12
|
A
|
0 | 0 | 99.81 | 99.61 | 0.2 | 140.1 | 0 | 46.5 | 0/0 | 0 | 3806 | 322 | 684 |
|
Chip 13
|
A
|
0 | 0 | 99.79 | 99.51 | 0.39 | 240.3 | 0 | 78.2 | 0/0 | 0 | 3781 | 355 | 1152 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 99.62 | 0.31 | 211.8 | 0 | 69.1 | 0/0 | 0 | 3553 | 326 | 715 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 99.59 | 0.39 | 272.2 | 0 | 87.6 | 0/0 | 0 | 3760 | 353 | 1200 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-07 | |
| TestTime | Test Time | 15:15 | |
| TestDuration | Duration | 1:2:7 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 889 | |
| nWarnings | # Warnings | 173 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 171 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 58 | |
| message_readback_count | Readback start marker | 116 |
v1.1.1-1-g54fa876 on branch master
