Test Date: 2016-11-14 14:08
Analysis date: 2016-11-14 14:55
Analysis date: 2016-11-14 14:55
M1139 XRayHRQualification
Summary
| Module | Module | M1139 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/0/1 | |
| PixelDefects | Total Pixel Defects | 38 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 150/300 | 99.40/99.57 | % |
| Noise | Mean Noise | 370 | e- |

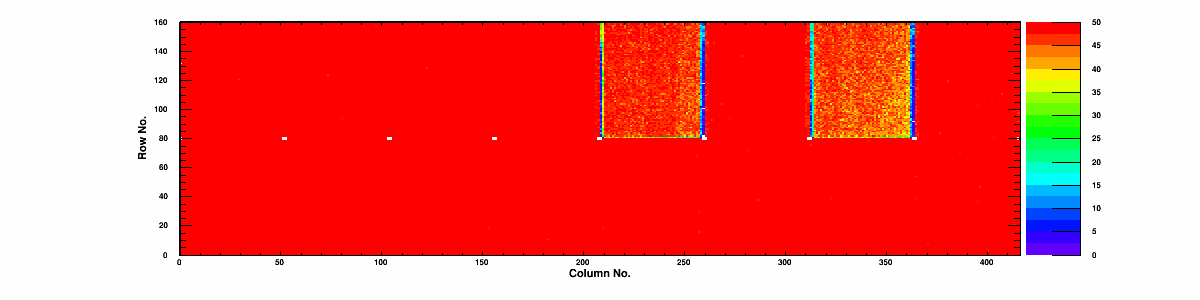

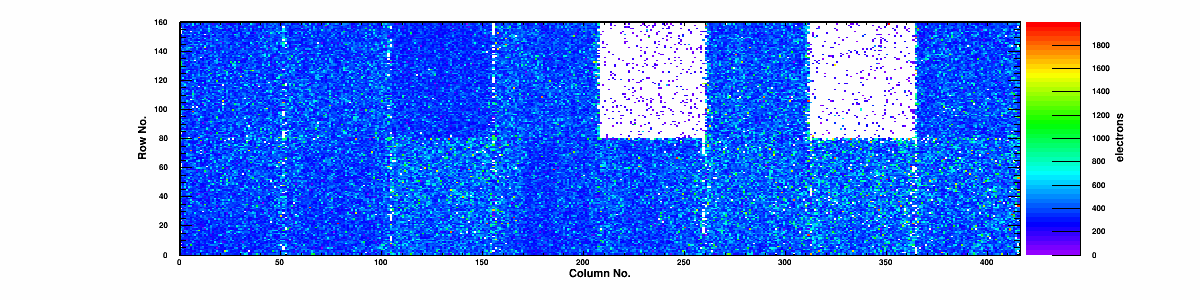

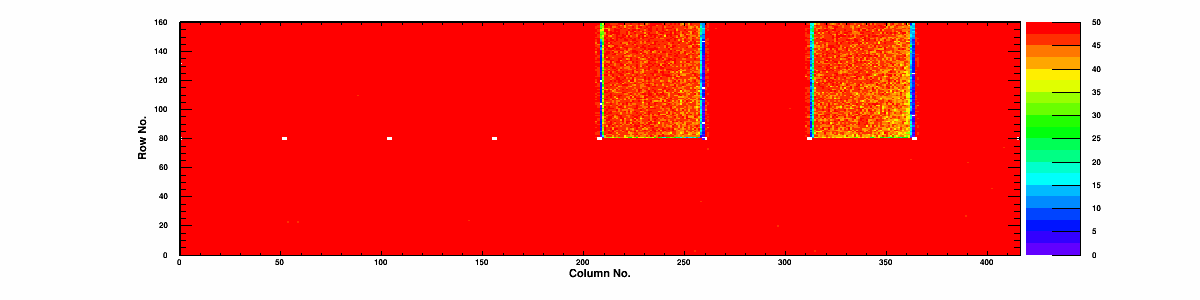

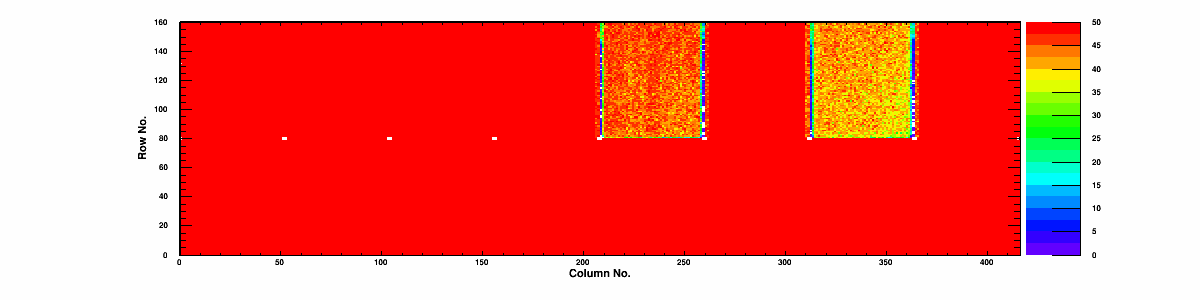

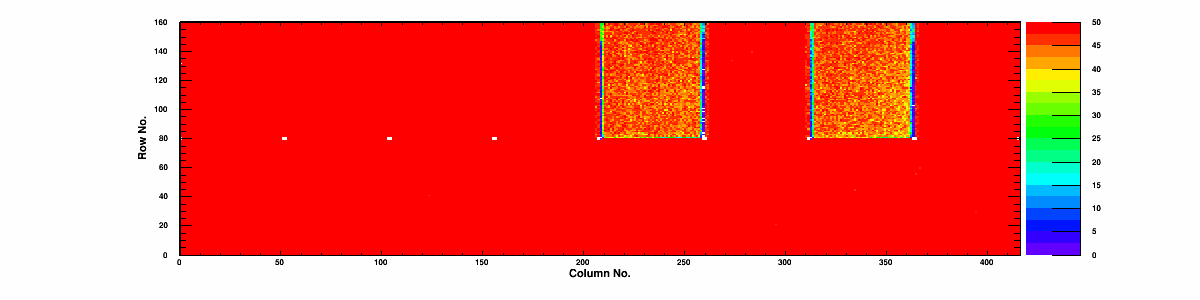

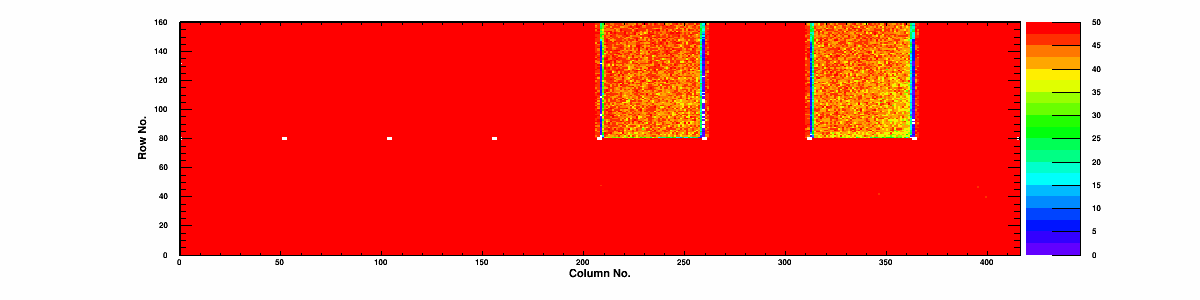

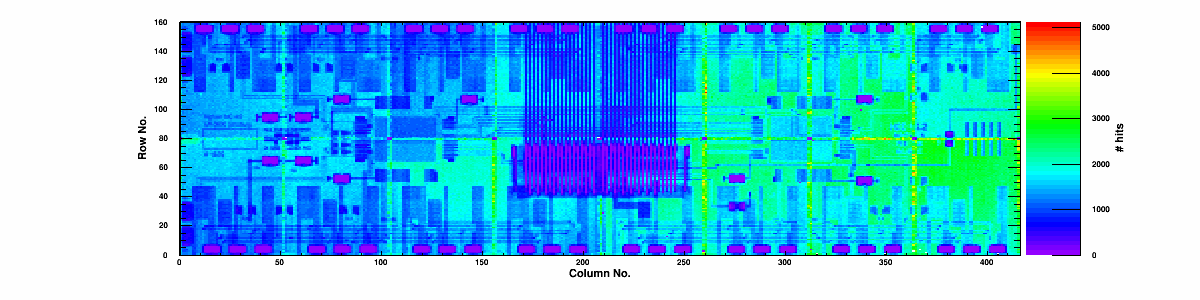

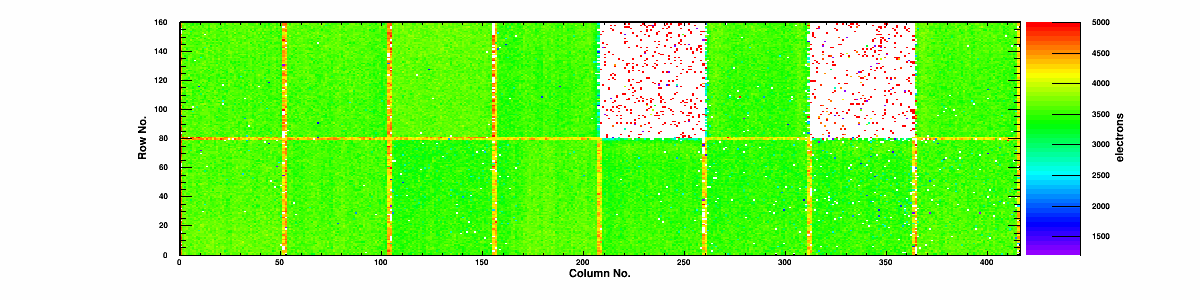

Summary ROCs
| ROC | Grade | Def | DC | Eff 150 | Eff 300 | Eff chi2 | Rate "300" | BB def | Rate "100" | R/O | Unif. | Thr [e-] "250" | Noise "250" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.85 | 99.61 | 0.27 | 211.8 | 1 | 67.5 | 0/0 | 0 | 3541 | 395 | 1671 |
|
Chip 1
|
C
|
24 | 0 | 92.79 | 99.79 | 330.57 | 236.9 | 0 | 77.3 | 0/0 | 0 | 483 | 163 | 68 |
|
Chip 2
|
A
|
1 | 0 | 99.83 | 99.56 | 0.37 | 226.5 | 1 | 73.8 | 0/0 | 0 | 3442 | 411 | 1944 |
|
Chip 3
|
A
|
7 | 0 | 99.78 | 99.37 | 0.39 | 139.0 | 0 | 45.8 | 0/0 | 0 | 934 | 132 | 40 |
|
Chip 4
|
A
|
0 | 0 | 99.83 | 99.56 | 0.28 | 144.4 | 0 | 47.9 | 0/0 | 0 | 3503 | 398 | 1743 |
|
Chip 5
|
A
|
0 | 0 | 99.84 | 99.69 | 0.25 | 146.7 | 0 | 47.3 | 0/0 | 0 | 3629 | 352 | 1032 |
|
Chip 6
|
A
|
0 | 0 | 99.82 | 99.58 | 0.22 | 149.3 | 0 | 49.3 | 0/0 | 0 | 3583 | 395 | 1699 |
|
Chip 7
|
A
|
0 | 0 | 99.84 | 99.60 | 0.22 | 152.5 | 0 | 49.8 | 0/0 | 0 | 3592 | 386 | 1604 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.28 | 0.22 | 154.8 | 0 | 49.8 | 0/0 | 0 | 3612 | 377 | 1448 |
|
Chip 9
|
A
|
0 | 0 | 99.85 | 99.60 | 0.27 | 154.3 | 0 | 50.4 | 0/0 | 0 | 3586 | 378 | 1442 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.54 | 0.25 | 192.1 | 0 | 61.6 | 0/0 | 0 | 3448 | 439 | 2345 |
|
Chip 11
|
A
|
0 | 0 | 99.80 | 99.51 | 0.18 | 131.1 | 0 | 43.0 | 0/0 | 0 | 3587 | 380 | 1510 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.62 | 0.21 | 152.3 | 0 | 50.1 | 0/0 | 0 | 3472 | 401 | 1813 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.58 | 0.32 | 219.0 | 0 | 71.0 | 0/0 | 0 | 3445 | 435 | 2243 |
|
Chip 14
|
A
|
2 | 0 | 99.88 | 99.60 | 0.44 | 237.9 | 3 | 76.7 | 0/0 | 0 | 3373 | 449 | 2449 |
|
Chip 15
|
A
|
3 | 0 | 99.83 | 99.58 | 0.42 | 269.9 | 3 | 85.7 | 0/0 | 0 | 3494 | 428 | 2173 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-11-14 | |
| TestTime | Test Time | 14:08 | |
| TestDuration | Duration | 0:37:10 | |
| pXar | pXar version | v2.7.6+59~gd48421b | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 245 | |
| nWarnings | # Warnings | 32 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 14 | |
| message_notokenpass_count | has NoTokenPass | 1 | |
| message_readback_count | Readback start marker | 19 |
v1.1.1-1-g54fa876 on branch master
