Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 7
Grading
ROCGrade |
Final ROC Grade |
A |
|
NumberOfHotPixels |
# Hot Pixels 150/50 |
0/0 |
|
NumberOfNonUniformColumns |
# Non-Uniform Columns 150/50 |
0 |
|
NumberOfNonUniformEvents |
# Non-Uniform ROC Events 150/50 |
0/0 |
|
NumberOfNonUniformColumnEvents |
# Non-Uniform Col. Events 150/50 |
0/0 |
|
BadDoubleColumns |
# Bad Double Columns |
0 |
|
BumpBondingDefects |
# Bump Bonding Defects 150/50 |
0/0 |
|
Efficiency |
Efficiency 50/120 |
99.86/99.32 |
|
EfficiencyFit |
Efficiency Fit |
chi2/ndf: 0.70, # points: 47 |
|
EfficiencyGrade |
Efficiency Grade 50/120 |
(A)/A |
|
BadDoubleColumnsGrade |
Bad DC Grade |
A |
|
HotPixelsGrade |
Hot Pixels Grade 150/50 |
A/A |
|
HitMapGrade |
Hit Map Grade 150/50 |
A/(A) |
|
ReadoutUniformityOverTimeGrade |
ROC Read. Unif. Grade 150/50 |
A/A |
|
ColumnReadoutUniformityOverTimeGrade |
Column Read. Unif. Grade 150/50 |
A/A |
|
ColumnUniformityGrade |
Column Uniformity Grade |
A |
|
NoiseGrade |
Noise Grade |
A |
|
Efficiency Interpolation: C7
fitfunction |
Fit |
[0]-[1]*x^3 |
|
BadDoubleColumns |
# Bad DCs (excluded from fit) |
0 |
|
Chi2NDF |
chi2/ndf |
0.70 |
|
NumberFitPoints |
# fit points |
47 |
|
p0 |
p0 |
99.90 |
|
p1 |
p1 |
3.31e-07 |
|
InterpolatedEfficiency50 |
Interpol. Efficiency 50 |
99.86 |
|
InterpolatedEfficiency120 |
Interpol. Efficiency 120 |
99.32 |
|
Efficiency Distr. 50: C7
N |
N |
4160 |
|
mu |
μ |
99.76 |
|
sigma |
σ |
0.72 |
|
Efficiency Distr. 100: C7
N |
N |
4160 |
|
mu |
μ |
98.82 |
|
sigma |
σ |
1.77 |
|
Efficiency Distr. 150: C7
N |
N |
4160 |
|
mu |
μ |
96.44 |
|
sigma |
σ |
3.66 |
|
Efficiency Distr. 200: C7
N |
N |
4160 |
|
mu |
μ |
91.41 |
|
sigma |
σ |
6.68 |
|
Efficiency Distr. 250: C7
N |
N |
4160 |
|
mu |
μ |
90.66 |
|
sigma |
σ |
7.07 |
|

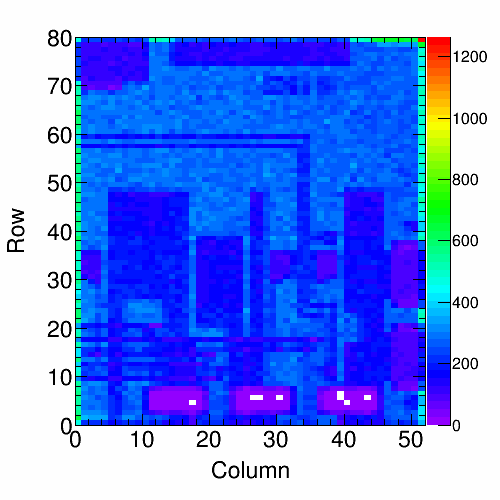

Background Map 50: C7
RealHitrate |
Real Hitrate |
68.29 |
MHz/cm2 |

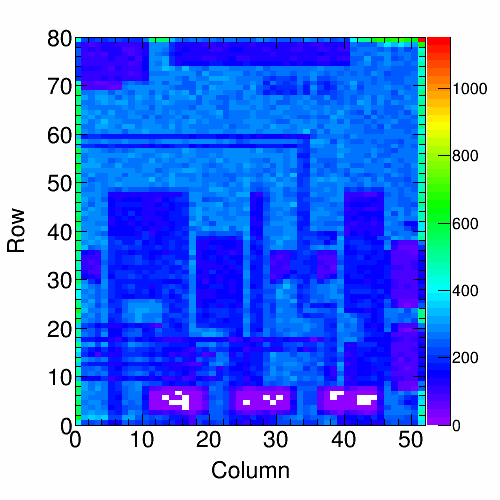

Background Map 100: C7
RealHitrate |
Real Hitrate |
136.46 |
MHz/cm2 |
Background Map 150: C7
RealHitrate |
Real Hitrate |
195.64 |
MHz/cm2 |
Background Map 200: C7
RealHitrate |
Real Hitrate |
264.22 |
MHz/cm2 |
Background Map 250: C7
RealHitrate |
Real Hitrate |
272.60 |
MHz/cm2 |
Masked Hot Pixels 150: C7

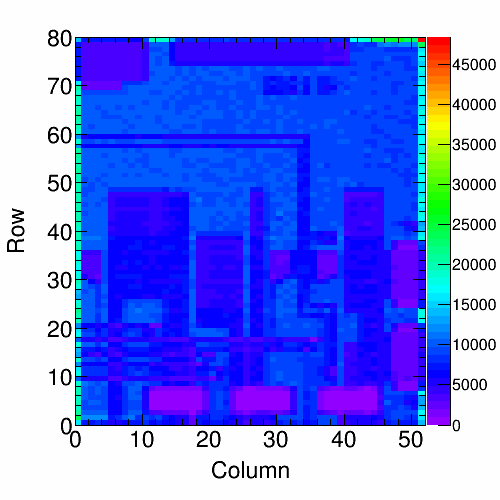

Hit Map 150: C7
RealHitrate |
Real Hitrate |
193.58 |
MHz/cm2 |
NumberOfDefectivePixels |
# Defective Pixels |
0 |
|
Hit Map 50: C7
RealHitrate |
Real Hitrate |
66.99 |
MHz/cm2 |
NumberOfDefectivePixels |
# Defective Pixels |
0 |
|
Col. Read. Unif. 150: C7
N |
N |
27722492 |
|
mu |
μ |
602156 |
|
sigma |
σ |
134456.64 |
|
Col. Read. Unif. 50: C7
N |
N |
9580802 |
|
mu |
μ |
208427 |
|
sigma |
σ |
48455.07 |
|
Read. Unif. over Time 150: C7
N |
N |
31312087 |
|
mu |
μ |
31725 |
|
sigma_th |
σ_th |
178.11 |
|
Time unif. distribution 150: C7
chi2/ndf |
chi2/ndf |
14.66 |
|
sigma |
σ |
203.27 |
|
sigma_th |
σ_th |
178.19 |
|
expectation |
Red curve (expected) |
Poisson |
|
Read. Unif. over Time 50: C7
N |
N |
10838181 |
|
mu |
μ |
10981 |
|
sigma_th |
σ_th |
104.79 |
|
Time unif. distribution 50: C7
chi2/ndf |
chi2/ndf |
1.40 |
|
sigma |
σ |
107.77 |
|
sigma_th |
σ_th |
104.82 |
|
expectation |
Red curve (expected) |
Poisson |
|
Col. Uniformity Ratio: C7

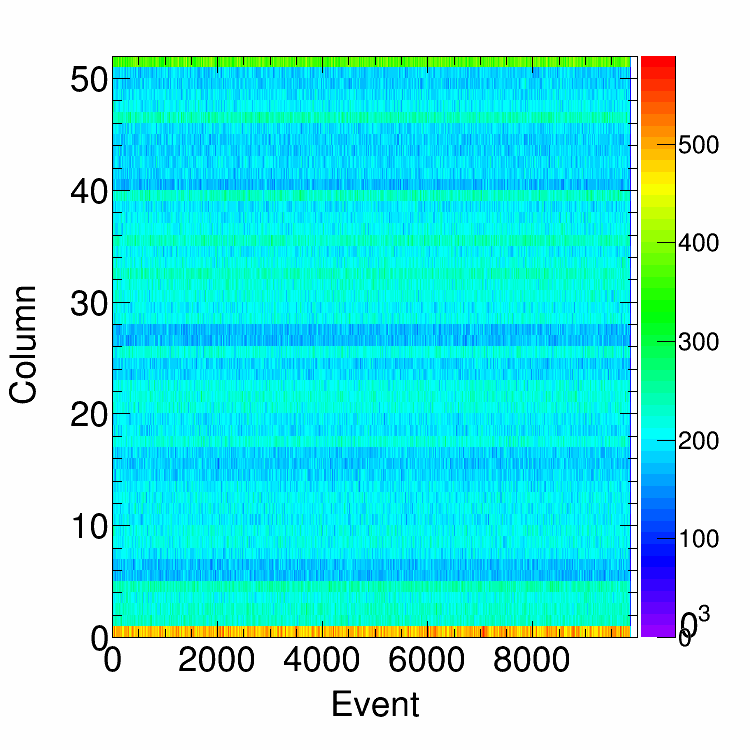

Col. Uniformity per Event: C7 150
mu |
μ |
25.51 |
|
sigma |
fit error of μ |
2.19 |
|
NumberOfNonUniformColumnEvents |
Non uniform 10.000 event bins |
0 |
|
Col. Uniformity per Event: C7 50
mu |
μ |
25.46 |
|
sigma |
fit error of μ |
2.19 |
|
NumberOfNonUniformColumnEvents |
Non uniform 10.000 event bins |
0 |
|
S-Curve widths: Noise (e^{-}) C7 100
N |
N |
4160 |
|
mu |
μ |
174.09 |
|
sigma |
RMS |
18.93 |
|
threshold |
thr |
2252.69 |
|
fit |
fit |
Gaussian |
|
fit_peak |
μ fit |
173.65 |
|
fit_sigma |
σ fit |
17.99 |
|
MeasuredHitrate |
Measured hitrate: |
136.0 |
|
DC Efficiency Distribution: C7
MeanEfficiency_50 |
Mean Efficiency 50 MHz/cm2 |
99.86 |
|
MeanEfficiency_120 |
Mean Efficiency 120 MHz/cm2 |
99.31 |
|
NBadDoubleColumns |
Bad Double Columns |
0 |
|
