Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Analysis date: 2016-05-25 22:53
M2044 XRayHRQualification
Summary
| Module | Module | M2044 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 6 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

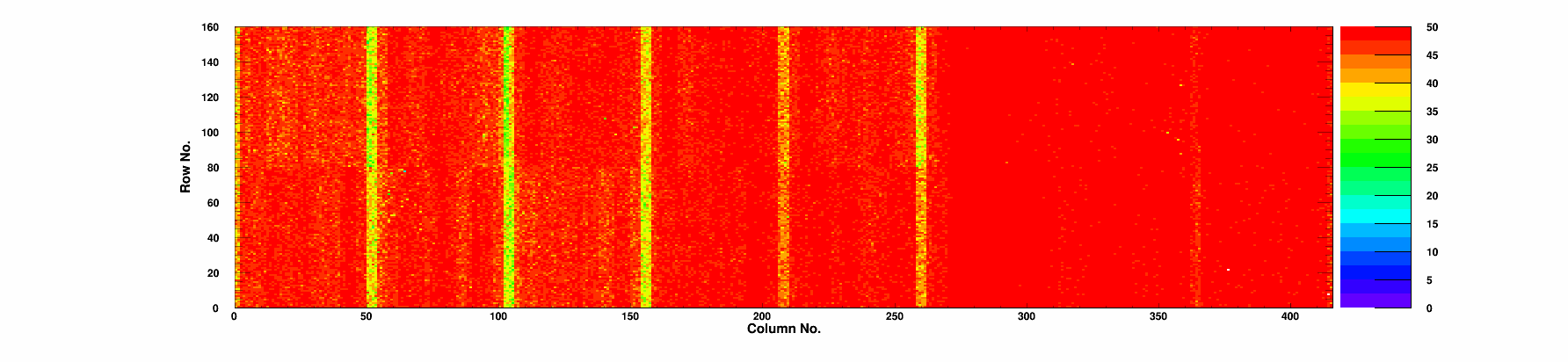

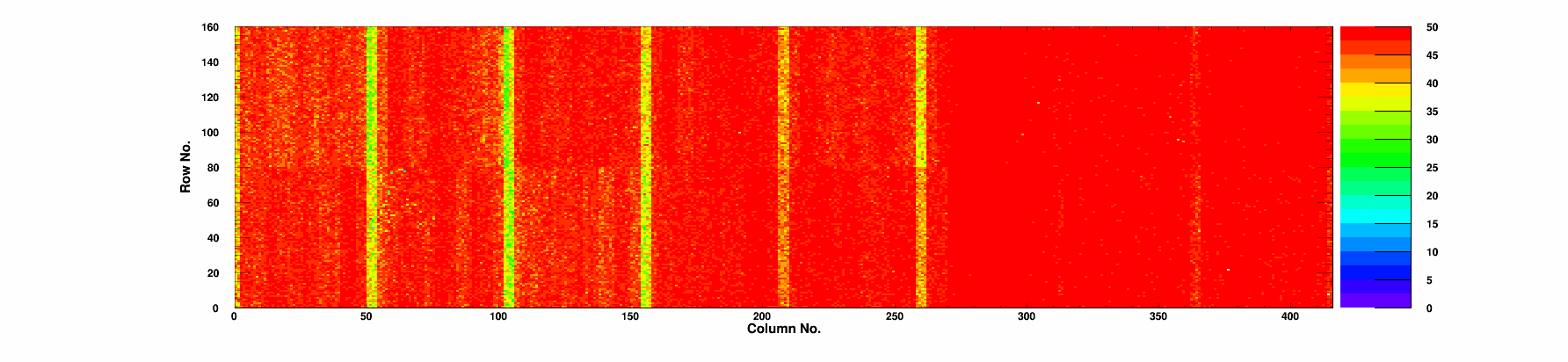

| Efficiency | Efficiency 50/120 | 99.87/99.28 | % |

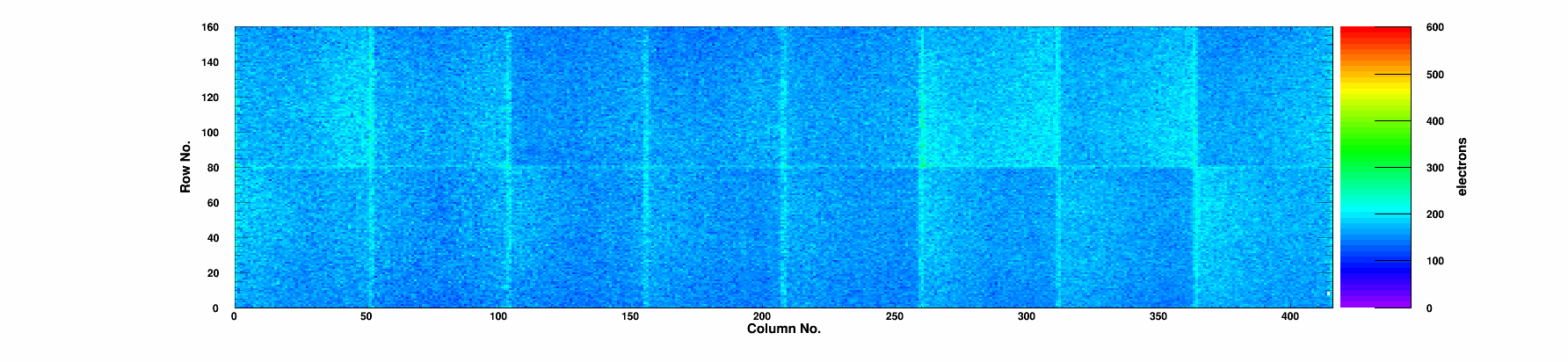

| Noise | Mean Noise | 165 | e- |
Summary ROCs

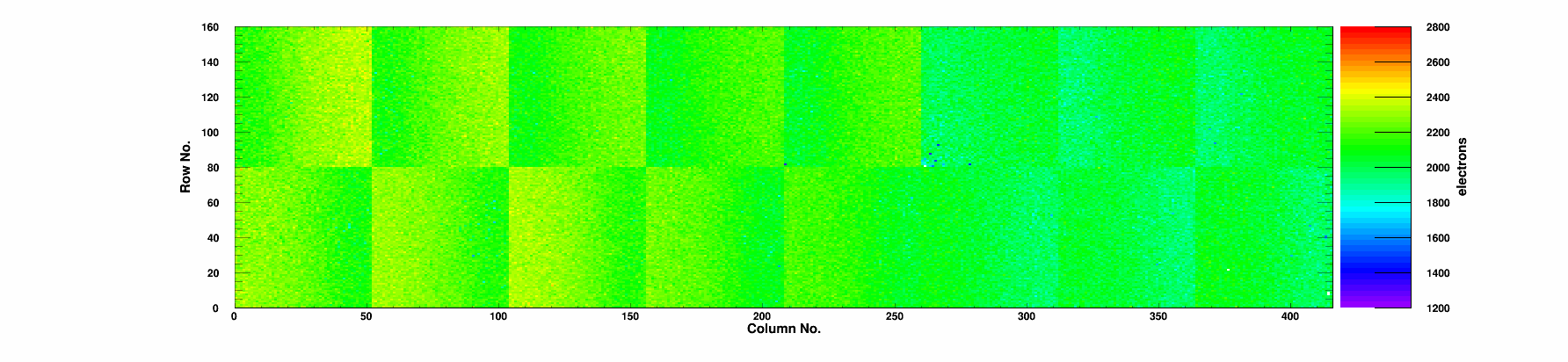

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.31 | 0.72 | 88.5 | 0 | 29.9 | 0/0 | 0 | 2013 | 167 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 99.27 | 1.27 | 92.6 | 0 | 30.8 | 0/0 | 0 | 2016 | 175 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.35 | 0.43 | 90.7 | 0 | 30.2 | 0/0 | 0 | 2011 | 184 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.01 | 0.9 | 146.0 | 0 | 50.6 | 0/0 | 0 | 2140 | 161 | 0 |
|
Chip 4
|
A
|
3 | 0 | 99.86 | 99.37 | 0.53 | 151.5 | 3 | 52.2 | 0/0 | 0 | 2141 | 158 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.35 | 0.54 | 165.8 | 0 | 57.4 | 0/0 | 0 | 2179 | 155 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.34 | 0.68 | 183.9 | 0 | 64.2 | 0/0 | 0 | 2216 | 165 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.32 | 0.7 | 193.6 | 0 | 67.0 | 0/0 | 0 | 2253 | 174 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.90 | 99.40 | 0.32 | 177.3 | 0 | 61.1 | 0/0 | 0 | 2211 | 167 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.35 | 1.02 | 176.6 | 0 | 62.1 | 0/0 | 0 | 2225 | 157 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.87 | 99.35 | 0.44 | 192.2 | 1 | 68.2 | 0/0 | 0 | 2242 | 157 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.33 | 0.53 | 150.5 | 0 | 52.3 | 0/0 | 0 | 2164 | 157 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.89 | 99.27 | 0.62 | 141.3 | 0 | 48.8 | 0/0 | 0 | 2129 | 158 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.85 | 99.33 | 0.37 | 84.6 | 0 | 28.1 | 0/0 | 0 | 2020 | 163 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.86 | 99.12 | 0.73 | 89.4 | 0 | 29.9 | 0/0 | 0 | 2003 | 163 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.83 | 98.97 | 0.88 | 95.3 | 0 | 32.6 | 0/0 | 0 | 2010 | 172 | 1 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2015-08-21 | |
| TestTime | Test Time | 11:04 | |
| TestDuration | Duration | 1:26:19 | |
| pXar | pXar version | v2.2.5+88~g694c14c | |
| DTB_FW | DTB FW | 4.0 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 2 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
