Test Date: 2015-08-21 11:04
Analysis date: 2016-05-25 22:53
Chip 8
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 150/50 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 150/50 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 150/50 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 150/50 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 150/50 0/0
Efficiency Efficiency 50/120 99.9/99.4
EfficiencyFit Efficiency Fit chi2/ndf: 0.32, # points: 50
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 150/50 A/A
HitMapGrade Hit Map Grade 150/50 A/(A)
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 150/50 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 150/50 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C8
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.32
NumberFitPoints # fit points 50
p0 p0 99.94
p1 p1 3.14e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.90
InterpolatedEfficiency120 Interpol. Efficiency 120 99.40

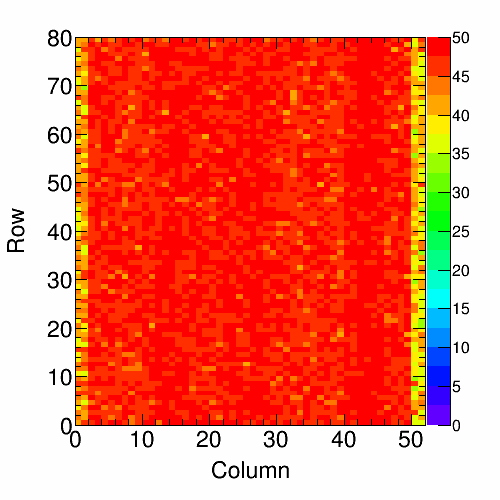

Efficiency Map 50: C8

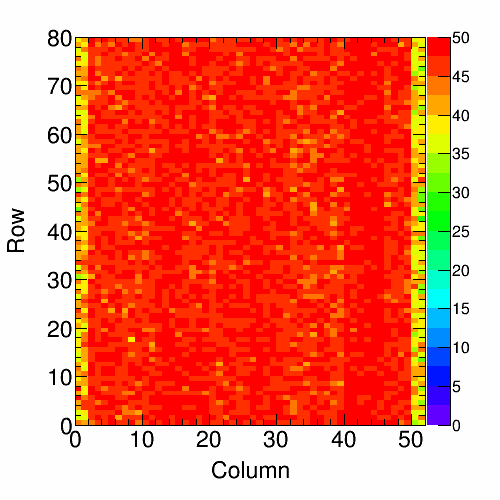

Efficiency Map 100: C8
Efficiency Map 150: C8
Efficiency Map 200: C8
Efficiency Map 250: C8
Efficiency Distr. 50: C8
Plot
N N 4160
mu μ 99.84
sigma σ 0.58
Efficiency Distr. 100: C8
Plot
N N 4160
mu μ 99.17
sigma σ 1.43
Efficiency Distr. 150: C8
Plot
N N 4160
mu μ 97.61
sigma σ 2.73
Efficiency Distr. 200: C8
Plot
N N 4160
mu μ 93.94
sigma σ 5.31
Efficiency Distr. 250: C8
Plot
N N 4160
mu μ 93.28
sigma σ 5.72

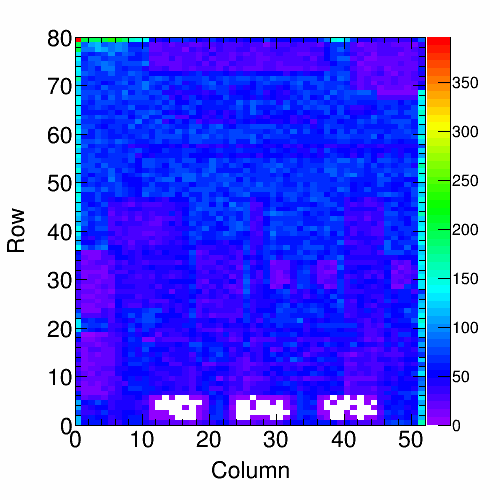

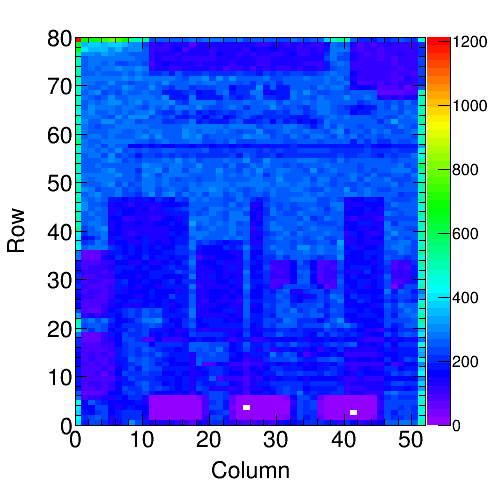

Background Map 50: C8
Plot
RealHitrate Real Hitrate 62.83 MHz/cm2

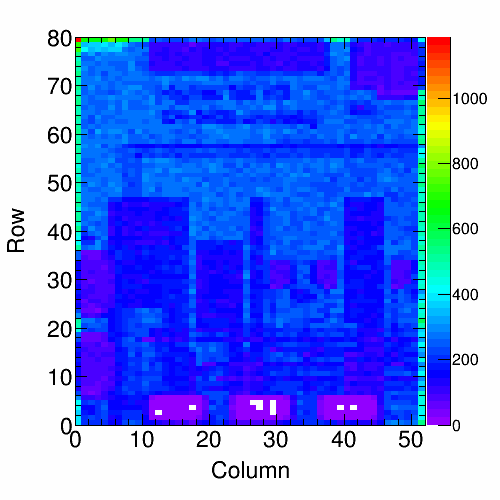

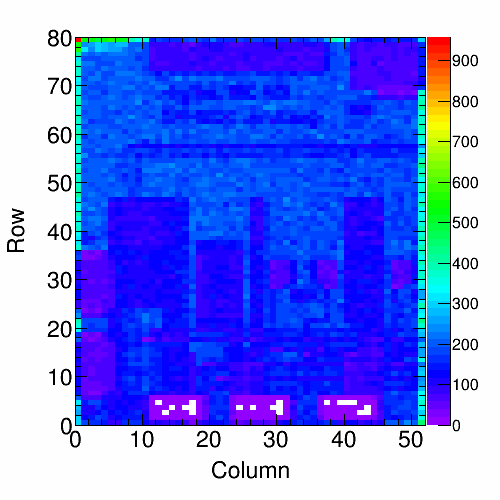

Background Map 100: C8
Plot
RealHitrate Real Hitrate 124.81 MHz/cm2

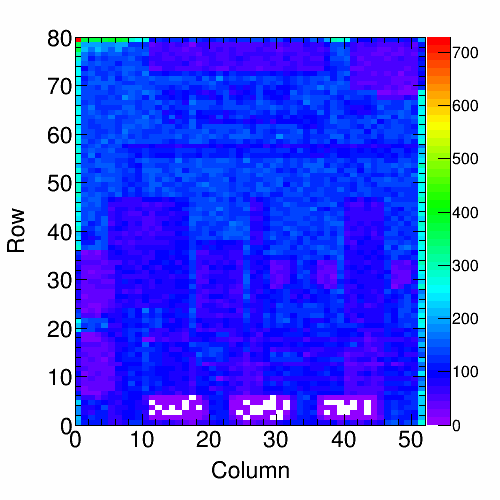

Background Map 150: C8
Plot
RealHitrate Real Hitrate 180.30 MHz/cm2
Background Map 200: C8
Plot
RealHitrate Real Hitrate 243.57 MHz/cm2
Background Map 250: C8
Plot
RealHitrate Real Hitrate 250.72 MHz/cm2

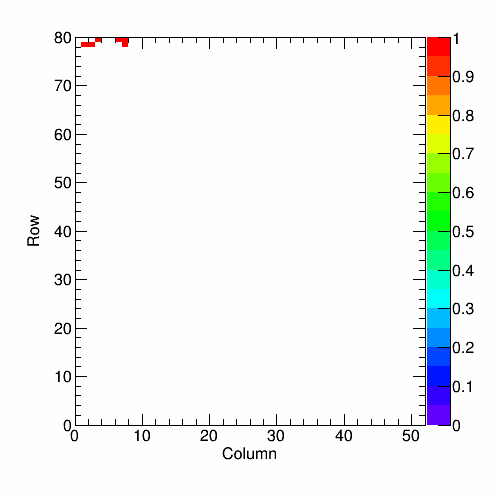

Retrim Hot Pix 150: C8
Masked Hot Pixels 150: C8
Masked Hot Pixels 50: C8

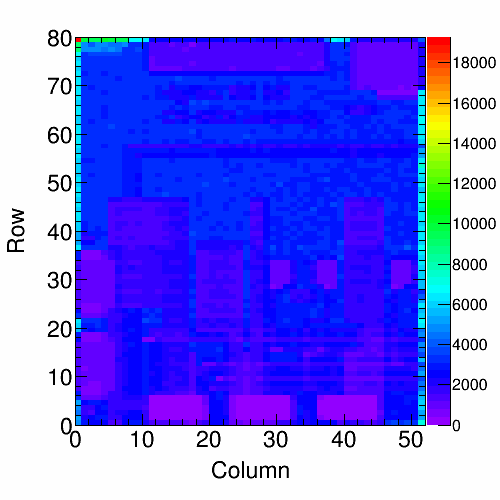

Hit Map 150: C8
Plot
RealHitrate Real Hitrate 177.35 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C8
Hit Map 50: C8
Plot
RealHitrate Real Hitrate 61.14 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C8
Col. Read. Unif. 150: C8
Plot
N N 25317191
mu μ 551679
sigma σ 128682.81
Col. Read. Unif. 50: C8
Plot
N N 8715282
mu μ 190224
sigma σ 46429.06
Read. Unif. over Time 150: C8
Plot
N N 28687286
mu μ 29065
sigma_th σ_th 170.48
Time unif. distribution 150: C8
Plot
chi2/ndf chi2/ndf 14.29
sigma σ 194.70
sigma_th σ_th 170.56
expectation Red curve (expected) Poisson
Read. Unif. over Time 50: C8
Plot
N N 9891667
mu μ 10022
sigma_th σ_th 100.11
Time unif. distribution 50: C8
Plot
chi2/ndf chi2/ndf 0.63
sigma σ 99.44
sigma_th σ_th 100.14
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C8

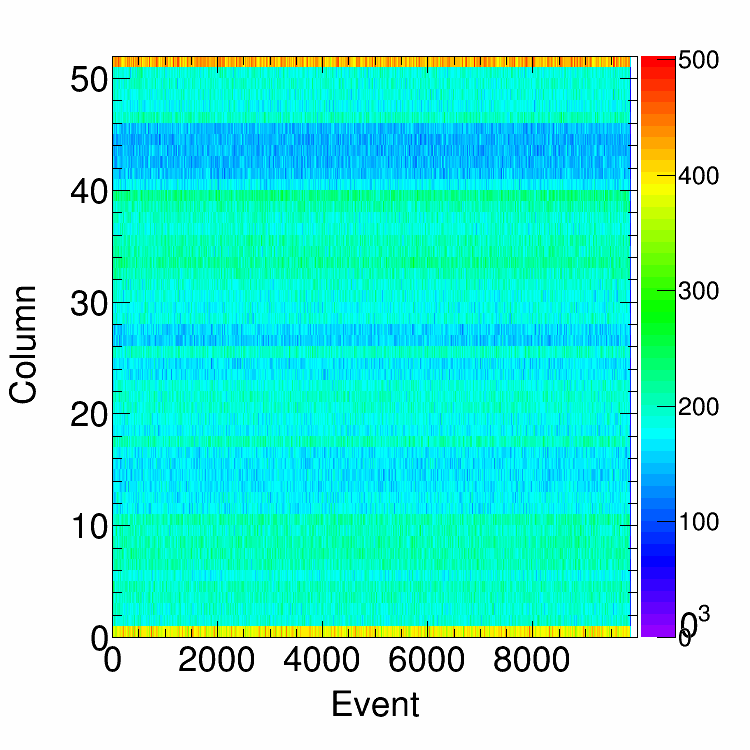

Col. Uniformity per Event: C8 150
Plot
mu μ 25.98
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C8 50
Plot
mu μ 25.90
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C8 100
Plot
N N 4160
mu μ 166.81
sigma RMS 17.80
threshold thr 2210.97
fit fit Gaussian
fit_peak μ fit 166.37
fit_sigma σ fit 17.11
MeasuredHitrate Measured hitrate: 124.8
Alive Map: C8
DC Efficiency Distribution: C8
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.90
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.39
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C8
